User's Manual
SPP-R210
Mobile Printer
Rev. 1.00
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPP-R210 and is the answer not in the manual?

Questions and answers

Related Manuals for BIXOLON SPP-R210

Summary of Contents for BIXOLON SPP-R210

  • Page 1 User's Manual SPP-R210 Mobile Printer Rev. 1.00 http://www.bixolon.com...

  • Page 2: Table Of Contents

    SPP-R210 ■ Table of Contents ※ Manual Information & Usage Precautions ························································ 3 1. Content Confirmation ··················································································· 10 2. Product Part Names ····················································································· 11 3. Installation & Usage ····················································································· 12 3-1 Battery Installation ··············································································· 12 3-2 Battery Charging ·················································································· 12 3-2-1 Using Battery Charger ·····································································...

  • Page 3: Manual Information & Usage Precautions

    This manual provides information on each character code page that can be used with this product. We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice.

  • Page 4: Safety Precautions

    SPP-R210 ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products into one multi-outlet.
  • Page 5 SPP-R210 CAUTION Violating following instructions can cause slight wound or damage the appliance. Keep the desiccant out of children’s reach. If you observe a strange smoke, odor or noise from the printer, unplug it before taking following • If not, they may eat it.
  • Page 6 5. Do not directly connect the battery to an electrical power outlet not specified by BIXOLON or an automobile’s cigarette lighter jack. Doing so may result in overheating, combustion and/or explosion of the battery by over-current and/or over-voltage. 6. Do not heat the battery or place it near a fire. Doing so may melt insulation materials, damage the safety mechanism/equipment, and/or ignite the electrolytic solution.
  • Page 7 SPP-R210 10. Do not pierce the battery with a pointed object, such as nail or awl, or strike with a heavy object, such as a hammer, and take care not to step on the battery. There is a potential risk of battery overheating, combustion, and/or explosion caused by an internal short circuit.
  • Page 8 10. There is a risk of explosion when replacing with an incorrect battery. Only exchange it for another one of the same or equivalent model specified by BIXOLON. Insulate the used battery by attaching insulation tape to its port, and then dispose of the battery according to local regulations.

  • Page 9: Other Precautions

    BIXOLON Co., Ltd. is not legally liable for any damages resulting from the use of the information in this manual. BIXOLON Co., Ltd. and its affiliates are not legally liable (United States excluded) for any...

  • Page 10: Content Confirmation

    SPP-R210 1. Content Confirmation The following items should all be contained in the printer package. Contact the dealer from which the purchase was made if any item is damaged and/or missing. ※ Basic items SPP-R210 Battery Pack Battery Charger Paper...

  • Page 11: Product Part Names

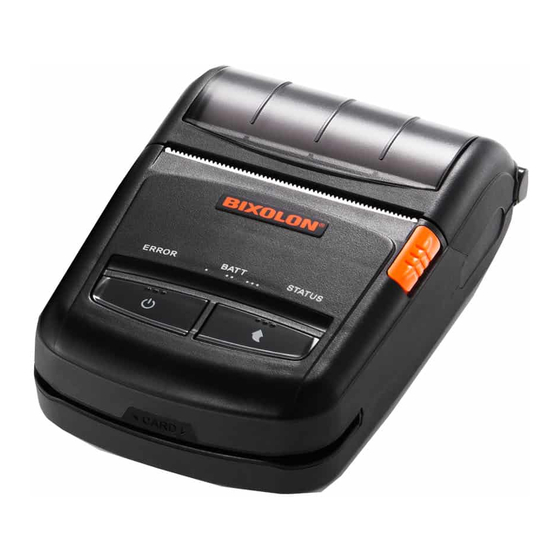

    SPP-R210 2. Product Part Names • Front Paper Cover Power Button Open button Paper Feed Button MSR Slot • Rear Hole for mounting belt strap / belt clip Battery Cable Connection Interface Cap Power Connection - 11 - Rev. 1.00...

  • Page 12: Installation & Usage

    CAUTION The printer may incur serious damage if the battery charger provided by BIXOLON is not used. BIXOLON is not legally liable for any such damages. (The voltage and electrical current specifications of the printer and battery charger must match.)

  • Page 13: Using Single Battery Cradle (Optional)

    CAUTION ① The printer may be seriously damaged if a battery charger not provided by BIXOLON is used. BIXOLON is not liable for such damage. WARNING Turn off the power before charging the battery for the printer. - 13 -...

  • Page 14: Using Quad Battery Charger / Quad Docking Cradle (Optional)

    SPP-R210 3-2-4 Using Quad Battery Charger / Quad Docking Cradle (Optional) 3-2-4-1 Connecting the cables 1) Connect the power cord to the adaptor, and Connect the adaptor to the power connector of the quad battery charger / quad docking cradle.
  • Page 15 SPP-R210 3-2-4-2 Charging Battery (Printer) 1) Using the battery hooks, insert the batteries into the Quad Battery Charger as shown. 2) Push the battery in until you hear snap. 3) Charging begins as soon as the battery is completely inserted.

  • Page 16: Paper Installation

    SPP-R210 3-3 Paper Installation 1) Press the Open button to open the paper cover. 2) Insert the paper as shown. (Remove the empty core.) 3) Align the paper as shown. 4) Pull out the paper as shown and close the paper cover.

  • Page 17: Using Belt Clip

    SPP-R210 3-4 Using Belt Clip 1) Insert the belt clip screw to the belt clip mounting hole. Coin Belt Clip 2) Tighten the screw of the belt clip with an object like a coin as shown. (Be careful to tighten the screw in the correct direction.)

  • Page 18: Using Belt Strap (Optional)

    SPP-R210 3-5 Using Belt Strap (Optional) 1) Insert the belt strap screw into the belt strap hole. Belt Strap Coin 2) Use a coin to tighten the belt strap screw as shown in the image. Belt 3) Unfasten the belt strap Velcro.

  • Page 19: Using Control Panel

    SPP-R210 3-6 Using Control Panel • Power Button This button is used to turn the printer on and off. 1) When the printer is off, press this button for approximately 2 seconds to turn on the power. 2) When the printer is on, press this button for approximately 2 Seconds to turn off the power.

  • Page 20: Using Msr

    SPP-R210 3-7 Using MSR 1) Insert the card as shown in the image and swipe in the direction of the arrow. (can be done in both directions) NOTE If the card does not register, first check to see if it is properly aligned. When swiping the card, the recommended swiping speed is 100 ~ 1200 mm/sec.
  • Page 21 SPP-R210 • Self-Test Sample (For Bluetooth) Firmware version : V01.00 STOBa 010114 Butter Capacity : 64K Bytes USB 2.0 Interface Print Density : 100% Default Codepage : PC437 Print Speed : Max. 80mm/s Double byte character mode:On Font : 12 x 24...
  • Page 22 Ver 1.2 PC437 System Name : SPP-R210 Ç ü é â ä à å ç ê ë è ïîìÄ Å É æ Æ ô ö ò û ù ÿ Ö Ü ¢ £ ¥ P t ƒ Network Mode : Adhoc ü...

  • Page 23: Black Mark Paper Printing

    SPP-R210 5. Black mark paper printing 5-1 Black mark Function Setting Black mark paper available at the Black mark mode. • Setting Operations 1) Turn on the printer power. 2) Open the paper cover and press and hold down the paper feed button for longer than two seconds.

  • Page 24: Ios Mfi Mode Setting (Optional)

    SPP-R210 6. iOS MFi Mode Setting (Optional) This product supports Made for iOS (MFi) mode which enables Bluetooth communication with iOS devices. (Applicable to MFi support models only) • How to enable and disable MFi mode 1) Turn on the printer.

  • Page 25: Peripherals Connection

    SPP-R210 7. Peripherals Connection This product can communicate with other devices via Bluetooth communication and cable. ® 7-1 Bluetooth Connection 1) The printer can connect to devices equipped with Bluetooth communication capability. Make sure your printer is on and discoverable.

  • Page 26: Printer Cleaning

    Print quality may be degraded or printhead life may be shortened if it is not cleaned periodically. Warning  Use only the linerless paper that is provided by BIXOLON. Use of other paper voids product warranty.  Use only the cleaning pen (PCP-R200II) provided by BIXOLON for cleaning.

  • Page 27: Appendix

    SPP-R210 9. Appendix 9-1 Specifications Item Description Printing Method Thermal printing Print Speed 80 mm/sec (Receipt Paper), 60 mm/sec (Linerless Paper) Resolution 203 DPI Paper Supply Easy paper loading Mode Character Size Font A: 12 × 24 Font B: 9 × 17 Font C: 9 ×...

  • Page 28: Certification

    <Warning> The battery has the potential risk of overheating, fire and/or explosion. To avoid such risks, observe the following instructions: • A visibly swollen battery may be dangerous. Contact BIXOLON or your local dealer. • Only use an eligible charger.

  • Page 29: Label Types

     Consult the dealer or an experienced radio/TV technician for help. 9-3 Label Types The label types used with this printer are as follows. • BIXOLON logo label: PC • Rating Label: PP • Other labels: PET - 29 -...
