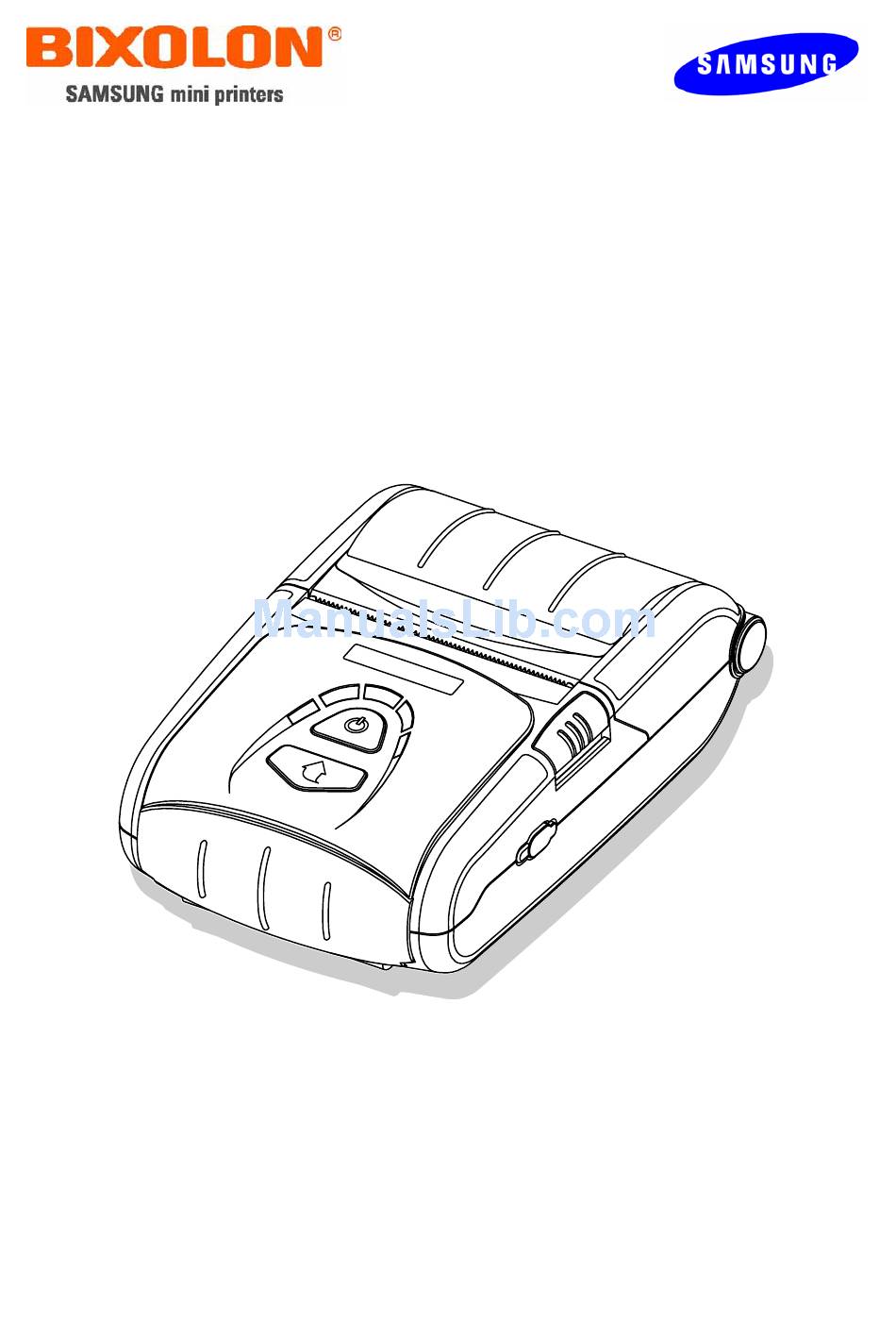

- Page 1 User's Manual Mobile Printer http://www.samsungminiprinters.com...
- Page 2 Information to the user NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products in one multi-outlet. You must use only the supplied adapter.
- Page 4 CAUTION Violating following instructions can cause slight wound or damage the appliance. If you observe a strange smoke, odor or noise from Keep the desiccant out of children’s reach. the printer, unplug it before taking following • If not, they may eat it. measures.
- Page 5 Neither BIXOLON nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of : accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with...

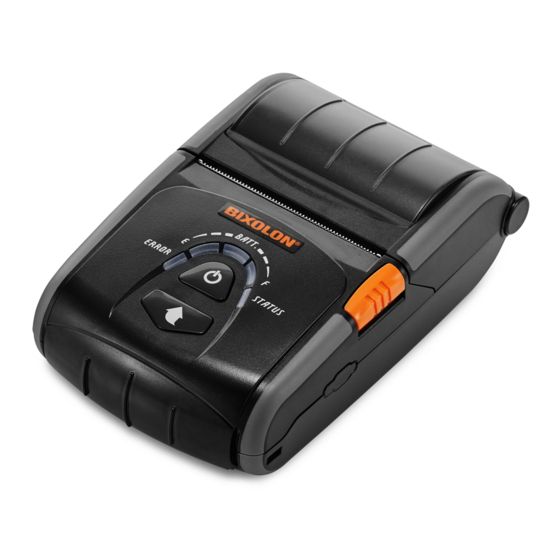

- Page 6 ■ Introduction The SPP-R200 is a high-quality Mobile printer. This mobile printer has the following features. • Elegant design of outer case and light-weight • High-speed printing (80mm/s) but low noise • Drop durability (Applied cushion rubber and high-strength material) •...
- Page 7 • Front view Rear cover Open button Power button Feed button BT cap (Bluetooth download connector) Front cover (MSR) • Rear view Belt strap fixing hole Battery pack Lower cover Serial/USB cable connector Power connector NOTES Please be sure to read the instructions in this manual carefully before using your new printer. Rev.
-
Page 8: Table Of Contents
■ Table of Contents Unpacking ······························································································ 9 Installation and Operation ·································································· 10 Installing the Battery ························································································10 Charging the Battery ························································································10 Using the MSR·································································································10 Connecting the interface cable (Option)···························································11 Installing the paper roll·····················································································12 Using the belt strap ··························································································13 Using the control panel ····················································································14 Setting the Memory Switches ····························································... -
Page 9: Unpacking
1. Unpacking Your printer box should include the items shown in the illustration below. If any items are damaged or missing, please contact your dealer. SPP-R200 Battery Battery charger Power cord Belt strap Paper Quick guide Safety precautions Rev. 1.00... -
Page 10: Installation And Operation
2. Installation and operation 2.1 Installing the battery 1) Insert two hook of battery into two hole of printer. 2) Lock the battery into the printer until it makes a clicking sound. NOTES The battery is packed uncharged. For the printer works, you must charge the battery using the battery charger or the battery cradle (option). -
Page 11: Connecting The Interface Cable (Option)
2.4 Connecting the interface cable (Option) 1) Connect the interface cable to the printer’s interface connector. • Communication cable Pin No. Signal name Direction Function Ground Output Transmit data Input Receive data Request to send nRTS Output Set high when printer is ready to accept a command or data nCTS Input... -
Page 12: Installing The Paper Roll
2.5 Installing the paper roll 1) To prevent data loss, make sure that the printer is not receiving data. 2) Open the rear cover by pushing the open button. 3) Insert the paper roll as shown. (Remove the used paper roll core if there is one.) 4) Be sure to note the correct direction that the paper should come off the paper roll. -
Page 13: Using The Belt Strap
2.6 Using the belt strap 1) Insert the screw of the belt strap in a hole of lower cover. 2) Fasten the screw of the belt strap by rotating a coin as shown. 3) Spread the velcro fasteners of the belt strap. -
Page 14: Using The Control Panel
2.7 Using the control panel Most of the functions of this printer are governed by software, but you can monitor the printer’s status by looking at the lights on the control panel and for some procedures you will use the buttons. •... - Page 15 disconnection. After all it means the printer is not ready to communicate with host. Rev. 1.00...
-
Page 16: Setting The Memory Switches
3. Setting the Memory Switches This printer has “Memory Switch” set which is software switches. Memory Switch set has “MSW 1”,“MSW 2”, “MSW 5”(Power OFF time selection), “MSW 6”(Power idle mode time selection),”MSW 7(MSR read mode selection)”, “MSW 8” and “Serial communication condition”. -
Page 17: Memory Switch 2
3.2 Memory Switch 2 Switch Function Interface selection (*1) Refer to the following table Reserved Fixed to OFF Codepage selection (*2) Refer to the following table NOTES (*1) Interface selection MSW 2-2 MSW 2-1 Function Bluetooth Interface RS-232C(serial) Interface USB Interface Desired code page can be selected using Memory Switch 2-4~8 by setting as following. -
Page 18: Memory Switch 5 (Power Off Time Selection)
3.3 Memory Switch 5 (Power off time selection) MSW 5-8 MSW 5-7 MSW 5-6 MSW 5-5 MSW 5-4 MSW 5-3 MSW 5-2 MSW 5-1 Value NOTES Power OFF time ranges : 1 ~ 90 minutes 3.4 Memory Switch 6 (Power idle mode time selection) MSW 6-8 MSW 6-7 MSW 6-6 MSW 6-5 MSW 6-4 MSW 6-3 MSW 6-2 MSW 6-1 Value NOTES... -
Page 19: Memory Switch 7 (Selecting Msr Read Mode)
3.5 Memory Switch 7 (MSR read mode selection) Switch Function MSR read mode selection (*1) Refer to the following table Reserved Fixed to OFF Reserved Fixed to OFF Reserved Fixed to OFF Reserved Fixed to OFF Reserved Fixed to OFF Reserved Fixed to OFF Reserved... -
Page 20: Self Test
4. Self Test The self test let you know if your printer is operating properly. It checks the printing quality, ROM version and memory switch settings. The test is independent of any other equipment or software, so it is a good idea to run it when you first set up the printer or if you have any trouble. -
Page 21: Specifications
6. Specifications Item Description Print method Direct thermal Print speed 80 mm/sec Resolution 203 DPI Paper supply method Easy paper loading Font A : 12 × 24 Character size Font B : 9 × 24 Font A : 32 Character per line Font B : 42 Alphanumeric character : 95 Character sets... -
Page 22: Overall Dimensions
7. Overall dimensions Rev. 1.00...
