  • Page 1 User's Manual SPP-R200 Mobile Printer Rev. 1.09 http://www.bixolon.com...

  • Page 2: Table Of Contents

    SPP-R200 ■ Table of Contents ※ Manual Information & Usage Precautions ························································ 3 1. Content Confirmation ··················································································· 10 2. Product Part Names ····················································································· 11 3. Installation & Usage ····················································································· 12 3-1 Battery Installation ··············································································· 12 3-2 Battery Charging ·················································································· 12 3-2-1 Battery Charging Usage ···································································...

  • Page 3: Manual Information & Usage Precautions

    This manual provides information on each character code page that can be used with this product. We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice.

  • Page 4: Safety Precautions

    SPP-R200 ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products in one multi-outlet.
  • Page 5 SPP-R200 CAUTION Violating following instructions can cause slight wound or damage the appliance. Keep the desiccant out of children’s reach. If you observe a strange smoke, odor or noise from the printer, unplug it before taking following • If not, they may eat it.
  • Page 6 3. When charging the battery, use the exclusive charger or follow the charging requirements outlined by BIXOLON. Charging under conditions not included in such requirements (higher temperature, higher voltage/larger electrical current, use of a modified charger, etc.) can result in excessive battery charging and abnormal electrical current flow and/or voltage that causes an abnormal chemical reaction, which may then cause the battery to overheat, ignite, and/or explode.
  • Page 7 SPP-R200 10. Do not pierce the battery with a sharp object, such as a nail, or hit it with a heavy object, such as a hammer, and take care not to step on the battery. The battery may rupture or become warped, causing short circuits within that may result in battery overheating, combustion, and/or explosion.
  • Page 8 SPP-R200 Caution 1. Do not use or leave the battery in a location exposed to high temperatures or intense direct sunlight, such as within an automobile. Doing so can cause battery overheating and/or combustion. In addition, battery performance and product life may be reduced.

  • Page 9: Other Precautions

    BIXOLON Co., Ltd. is not legally liable for any damages resulting from the use of the information in this manual. BIXOLON Co., Ltd. and its affiliates are not legally liable (United States excluded) for any...

  • Page 10: Content Confirmation

    SPP-R200 1. Content Confirmation The following items should all be contained in the printer package. Contact the dealer from which the purchase was made if any item is damaged and/or missing. ※ Basic items SPP-R200 Battery Battery Charger Power Cord...

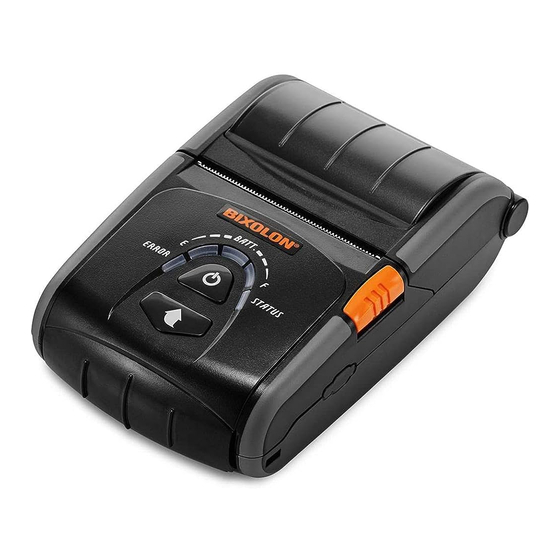

  • Page 11: Product Part Names

    SPP-R200 2. Product Part Names • Front Paper Cover Power Button Paper Feed Button Open Button BT Cap (Bluetooth Download Connector) MSR Cover • Rear Belt Strap Hole Battery Interface Cap Cable Connection Power Connection - 11 - Rev. 1.09...

  • Page 12: Installation & Usage

    5) Plug the power cord ② into an electrical outlet. CAUTION The printer may incur serious damage if the battery charger provided by BIXOLON is not used. BIXOLON is not legally liable for any such damages. (The voltage and electrical current specifications of the printer and battery charger must match.)

  • Page 13: Battery Holder (Optional) Usage

    SPP-R200 3-2-2 Battery Holder (Optional) Usage 1) Connect the power cord② to the battery charger ①. ④ 2) Connect the battery charger ① to the power connector of the battery holder ③. 3) Plug the power cord ② into an electrical ③...

  • Page 14: Quad Charger (Optional) Usage

    SPP-R200 3-2-4 Quad Charger (Optional) Usage 3-2-4-1 Connecting the cables 1) Connect the power cord to the adaptor, and Connect the adaptor to the power connector of the Quad Charger. 2) Plug the power cord into a power Outlet. Input power is 100 ~ 240VAC, 50/60Hz, 1.4A.
  • Page 15 SPP-R200 3-2-4-2 Battery Charging 1) Fasten batteries via the battery hooks into the Quad Charger as shown above. 2) Push the battery in until a snapping sound is emitted. 3) Charging begins as soon as the battery is completely inserted.

  • Page 16: Paper Installation

    SPP-R200 3-3 Paper Installation 1) Press the Open button to open the paper cover. 2) Insert the paper as shown in the image. (Remove any remaining core of a fully used paper roll.) 3) Take care to align the paper correctly.

  • Page 17: Belt Strap Usage

    SPP-R200 3-4 Belt Strap Usage 1) Insert the belt strap screw into the belt strap hole. Belt Strap Coin 2) Use a coin to tighten the belt strap screw as shown in the image. Belt 3) Undo the belt strap Velcro.

  • Page 18: Leather Case (Optional) Usage

    SPP-R200 3-5 Leather Case (Optional) Usage 1) Undo the Velcro. 2) Place the printer into the leather case following the direction shown in the image. 3) Close the Velcro. 4) Affix to a belt using the clip at the rear of the case.

  • Page 19: Control Panel Usage

    SPP-R200 3-6 Control Panel Usage • Power Button This button is used to turn the printer on and off. When the printer is off, pressing this button for approximately 2 seconds will turn the power on. When the printer is on, pressing this button for approximately 2 seconds will turn the power off.

  • Page 20: Msr Usage

    SPP-R200 3-7 MSR Usage 1) Press the MSR cover to open. 2) Insert the card as shown in the image and swipe in the direction of the arrow. (can be done in both directions) 3) When finished using, press the MSR cover to close it.
  • Page 21 SPP-R200 • Self-Test Printout Sample Boot loader version : VER v2.01 20071005 Firmware version : V01.00 STOB 080901 Bluetooth Firmware version : 3.0.0 Bluetooth BD address : 001901223194 Auth. & Encry. are enable Connection Mode = 2 ================================ Butter Capacity : 128K Bytes...

  • Page 22: Label Printing Function

    SPP-R200 5. Label Printing Function 5-1 Label Function Setting Label paper and black mark paper available at the label mode. • Setting Operations 1) Turn on the printer power. 2) Open the paper cover and press and hold down the paper feed button for longer than two seconds.

  • Page 23: Peripherals Connection

    1) Open the Interface Cap ①. 2) Connect the interface cable (optional) ② to the cable connector of the printer. NOTE Use only cables (optional) provided by BIXOLON (USB, Serial). ① 3) Connect the interface cable to the USB port of the device (PDAs, PCs, etc.).

  • Page 24: Printer Cleaning

    SPP-R200 7. Printer Cleaning If the interior of the printer is dusty, print quality can decline. In such a case, follow the instructions below to clean the printer. CAUTION • Make sure to turn the printer power off prior to cleaning.

  • Page 25: Appendix

    SPP-R200 8. Appendix 8-1 Specifications Item Description Printing Thermal printing Method Printing Speed 80 mm/sec Resolution 203 DPI Paper Supply Easy paper loading Mode Font A: 12 × 24 Character Size Font B: 9 × 24 Characters Font A: 32...

  • Page 26: Certification

    • North America: FCC rules part 15C • Safety Standards: CB-scheme: IEC60950-1: 2001 WARNING Use of an unprotected interface cable with this printer conflicts with EMC standards. Users should only use cables approved by BIXOLON. 2) CE Mark • EMC Directive 89/336/EEC EN55002 Class B:1998+A1:2000...
