Introduction
Congratulations on your purchase of the Model 42545 IR Thermometer. The 42545 is capable of
non-contact (infrared) temperature measurements at the touch of a button. The built-in laser pointer
increases target accuracy while the backlit LCD and handy push-buttons combine for convenient,
ergonomic operation. This meter is shipped fully tested and calibrated and, with proper use, will
provide years of reliable service.
Safety

Use extreme caution when the laser pointer beam is on

Do not point the beam toward anyone's eye or allow the beam to
strike the eye from a reflective surface

Do not use the laser near explosive gases or in other potentially
explosive areas

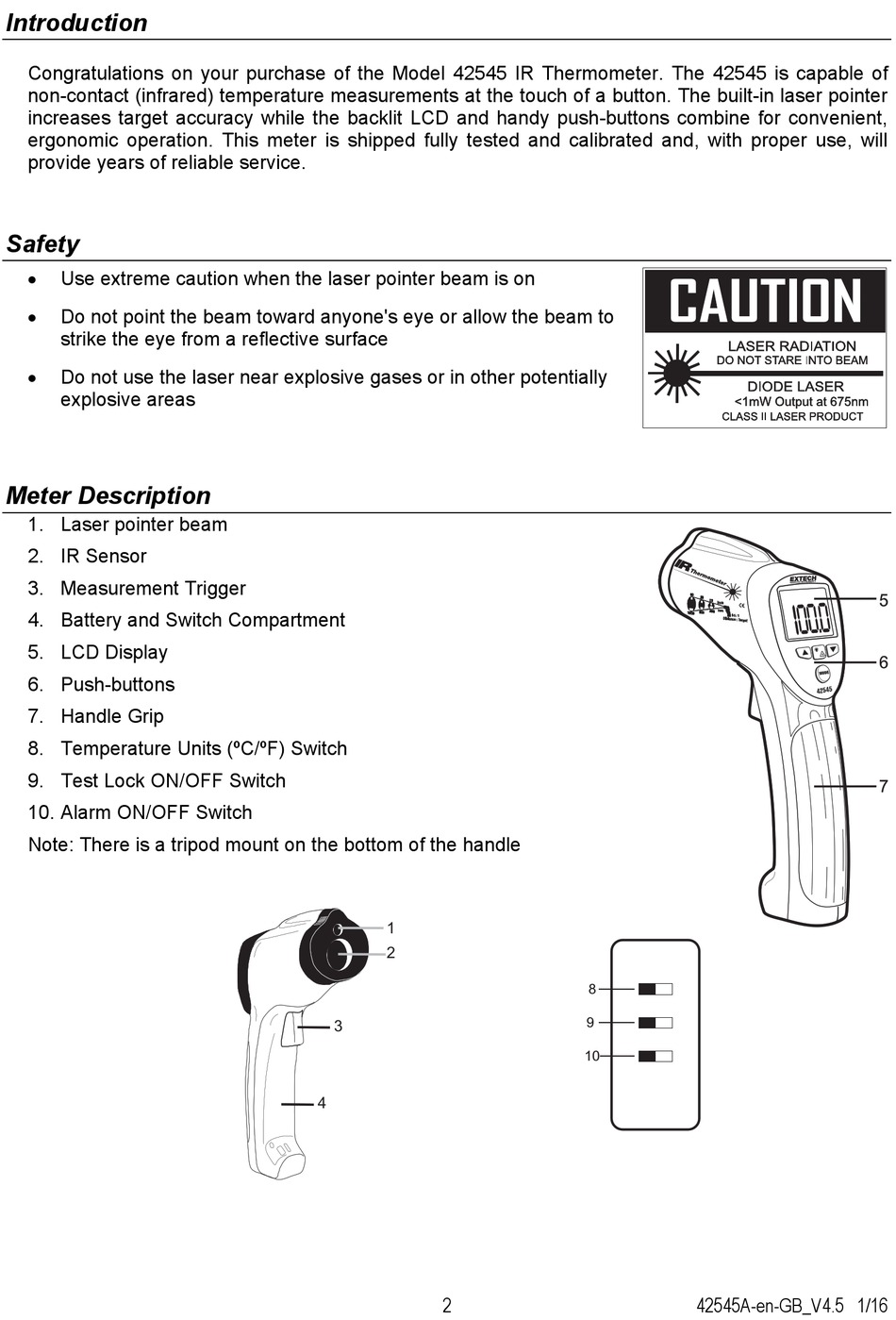

Meter Description

1. Laser pointer beam
2. IR Sensor
3. Measurement Trigger
4. Battery and Switch Compartment
5. LCD Display
6. Push-buttons
7. Handle Grip
8. Temperature Units (ºC/ºF) Switch
9. Test Lock ON/OFF Switch
10. Alarm ON/OFF Switch
Note: There is a tripod mount on the bottom of the handle
1
2
3
4
2
8
9
10
42545A-en-GB_V4.5 1/16
