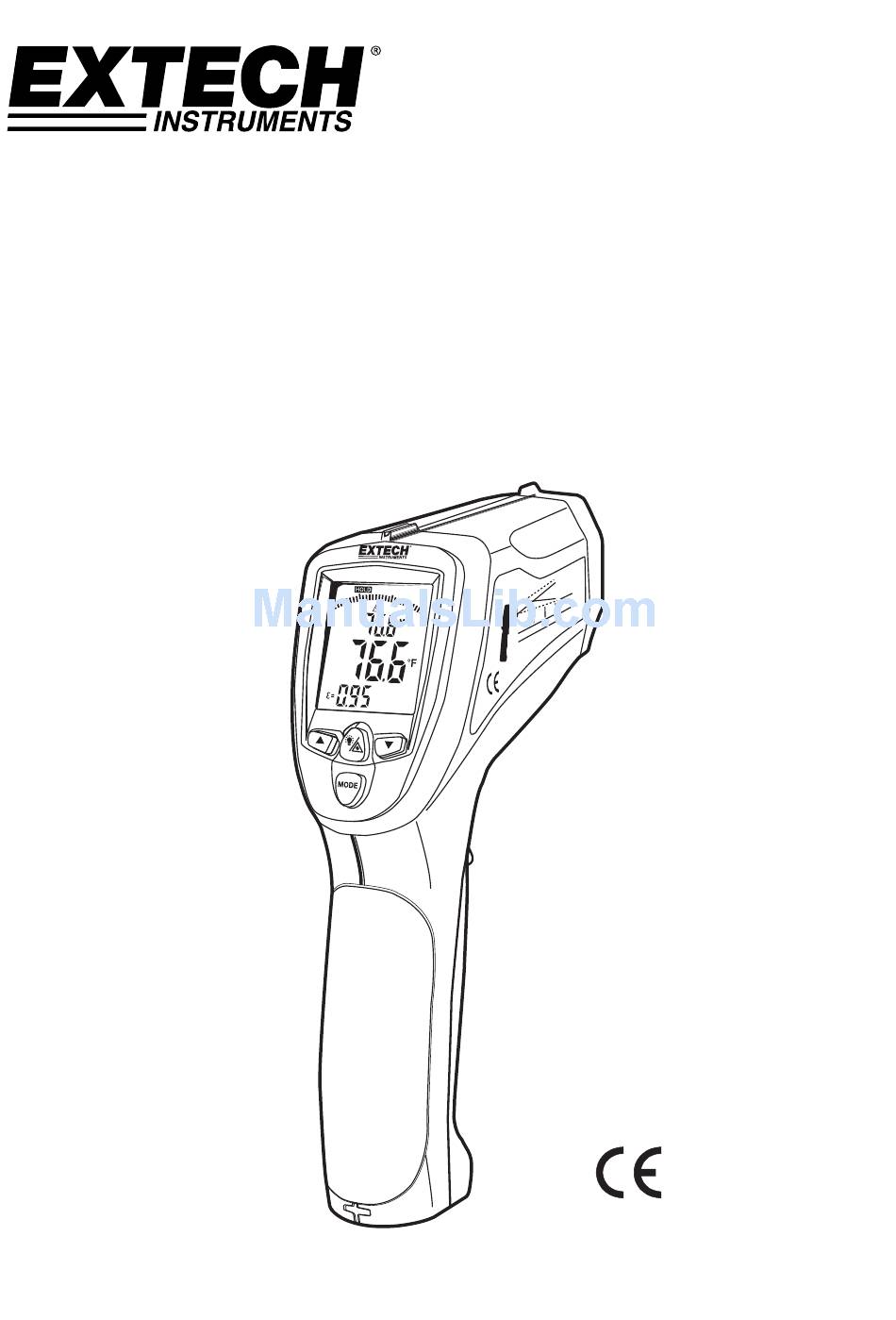

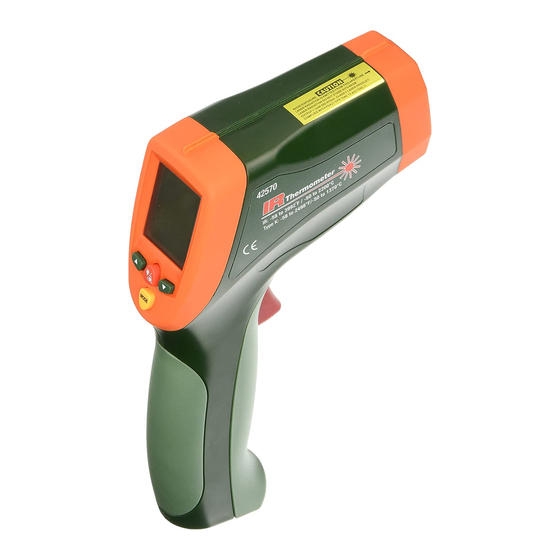

- Page 1 USER MANUAL Dual Laser InfraRed (IR) Thermometer MODEL 42570...
- Page 2 Introduction Congratulations on your purchase of the Model 42570 IR Thermometer. This Infrared thermometer ° ° measures and displays non-contact temperature readings up to 3992 F/2200 C (certified to ° ° 2000 F/1100 C). At 50”, built-in dual lasers converge to 1” target spot to insure accurate targeting and temperature measurement.
- Page 3 Max/Min temperature display or memory location display Main temperature display High/ Low limit alarm USB connection 10. Battery status 11. Emissivity or Type K or Stored value display 12. Thermocouple probe installed 13. Emissivity setting 14. Logged memory 42570-en-GB_V1.6 12/14...
-
Page 4: Operating Instructions
Low alarm ON or OFF (blinking L). Press the ▲ or ▼ button to select. Low alarm value adjustment (blinking L and ). Press the ▲ or ▼ button to set the value. °C or °F Temperature units. Press the ▲ or ▼ button to select. 42570-en-GB_V1.6 12/14... - Page 5 The selection is made using the MODE button. Turn on the 42570 by pressing the trigger. Once on, release the trigger and press and hold the MODE button until the LOCK icon ( ) appears. Press the arrow key (▼) until the display says ON.
- Page 6 You can hand over your used batteries / accumulators at collection points in your community or wherever batteries / accumulators are sold! Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its lifecycle 42570-en-GB_V1.6 12/14...
- Page 7 In addition, the spot size may be so large that it encompasses surface areas not intended to be measured. @250cm @100” 2” @125cm @50” 2.5cm 1” @63cm @25” 1.25cm 0.5” 42570-en-GB_V1.6 12/14...
-
Page 8: Specifications
-10 to 60 C (14 to 140 Power Supply 9V battery Automatic Power Off 7 seconds, with LOCK to disable Weight 320g (11.3 oz.) Dimensions 204 x 155 x 52mm (8 x 6.1 x 2”) Copyright © 2014 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO‐9001 Certified www.extech.com 42570-en-GB_V1.6 12/14...
