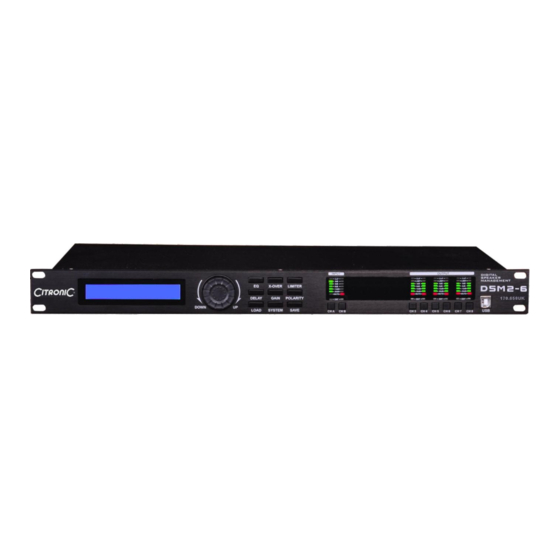

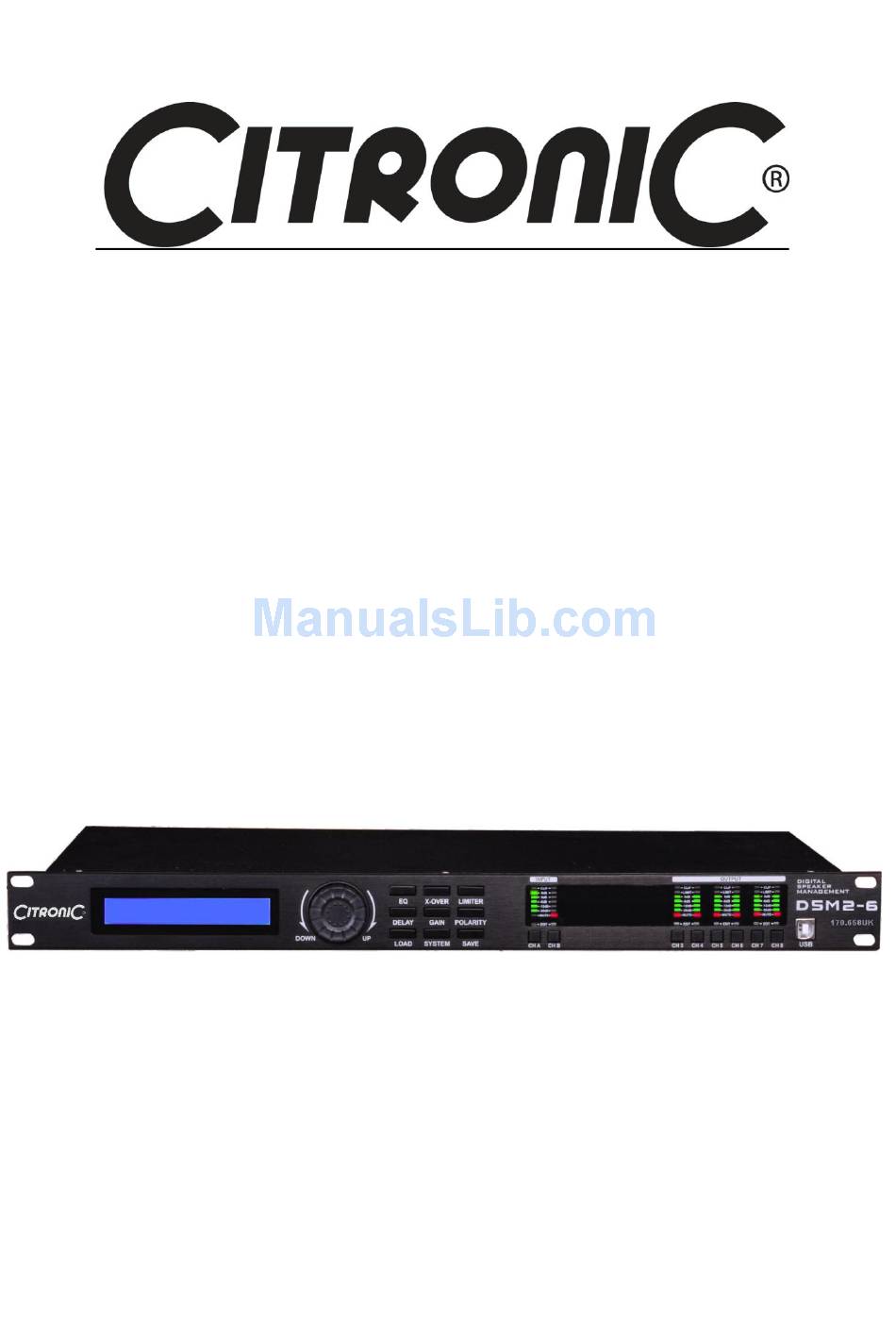

- Page 1 DSM2-6 DIGITAL SPEAKER MANAGEMENT 170.658UK...
- Page 2 Installation Set the DSM2-6 into a 1U space in a rack, ensuring enough depth to contain the unit and any connectors attached to it. Secure the front panel with rack screws and nuts to hold in place and stop the unit slipping.
- Page 3 Earth (Cold) Pin 1 + 3 Applications Use the DSM2-6 to control and distribute the signal to up to 6 amplifier channels driving different speaker arrays. A typical configuration with 2 subs, 2 mid/tops and 4 surround cabinets is shown below…...
- Page 4 The following is a basic step-by-step example of how to build the program for a given setup. 1) Begin by using an appropriate program for the particular setup or if not available, start afresh programming each amplifier input in turn 2) Using either the front panel or USB computer interface, correct the input gain and tonal response to give a suitable input to work from 3) Select each output in turn and decide if it is to be a left, right or mono output and select the...
- Page 5 9. Power Switch – On/Off mains 10. Case Earth point – chassis ground 11. RS485 Com port – To link multiple DSM2-6 units together, up to 250 devices 12. Output s – XLR balanced outputs for channels 1 – 6 13.
- Page 6 Input channel: 6-band parametric EQ, Delay, Polarity Output channel: Signal select, 6-band parametric EQ, Gain, Delay, Polarity, Crossover, Limiter Built-in USB and RS485 com ports Program function, recall and copy Password protection © Citronic 2009...
