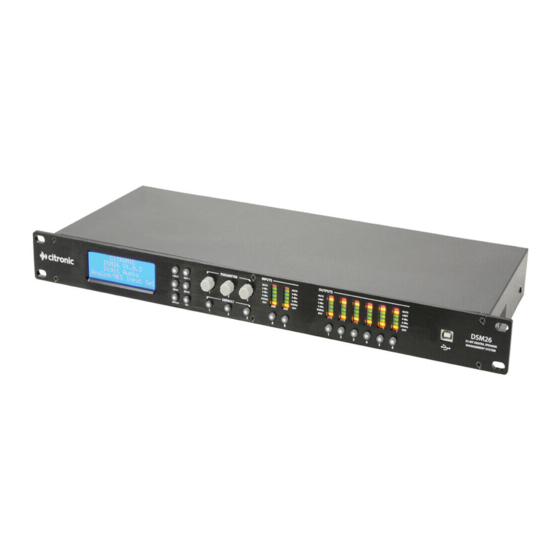

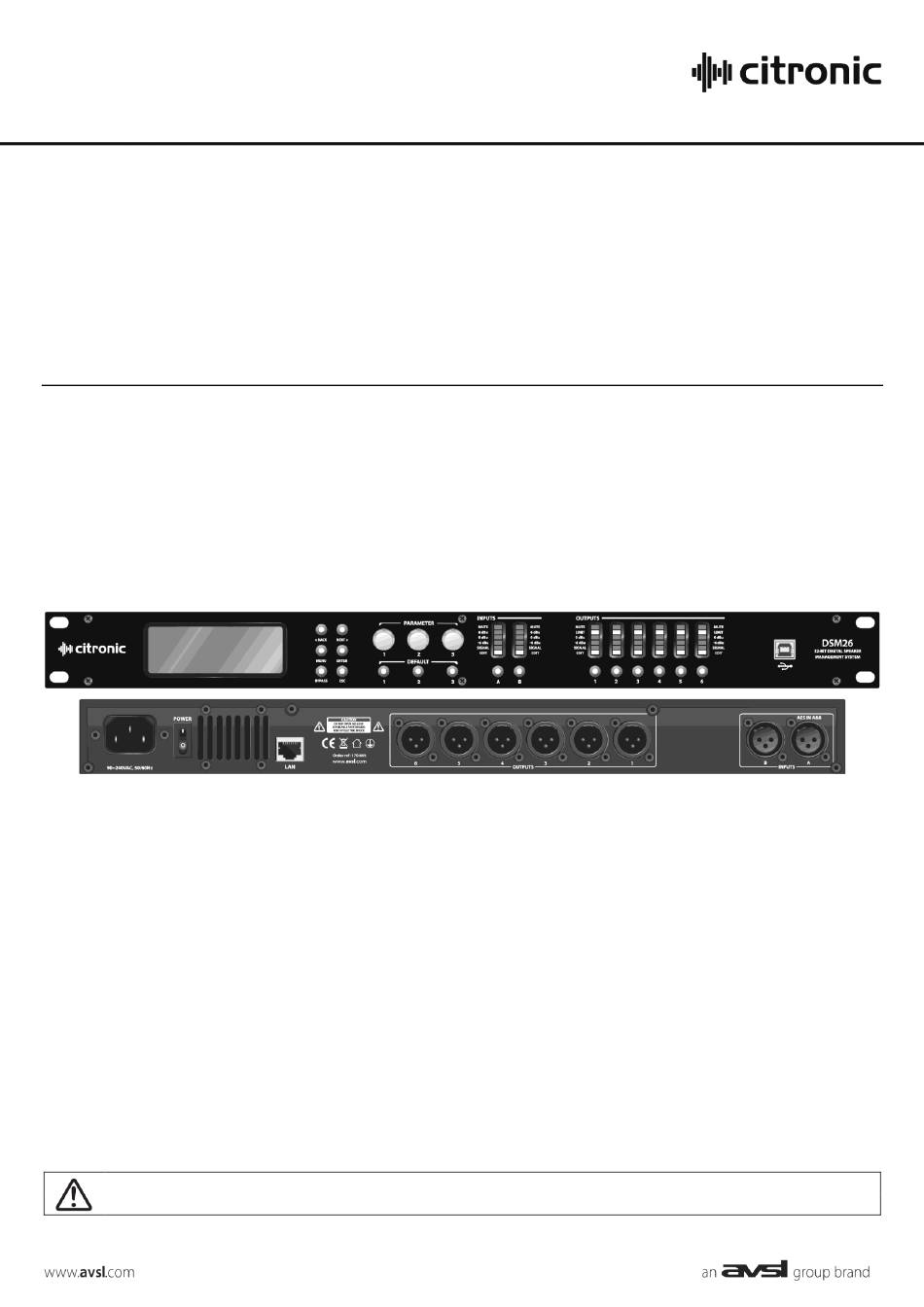

DSM26
DIGITAL SPEAKER MANAGEMENT SYSTEM
Order ref: 170.665UK
User Manual
Features
• 2 inputs, 6 outputs, fully balanced
• Independent parametric EQs
• Delay and Compressor/Limiter/Gate functions
• All inputs/outputs independently controlled
• Controllable via front panel, USB or LAN
• PC editing software included
Version 1.1
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSM26 and is the answer not in the manual?

Questions and answers

Related Manuals for Citronic DSM26

Summary of Contents for Citronic DSM26

  • Page 1 DSM26 DIGITAL SPEAKER MANAGEMENT SYSTEM Order ref: 170.665UK User Manual Features • 2 inputs, 6 outputs, fully balanced • Independent parametric EQs • Delay and Compressor/Limiter/Gate functions • All inputs/outputs independently controlled • Controllable via front panel, USB or LAN •...

  • Page 2: Table Of Contents

    Introduction Thank you for choosing the DSM26 Digital Speaker Management System. This unit has been designed to offer professional quality performance with open flexibility to address a wide range of sound reinforcement applications. Please read this manual and keep fit or reference to gain the best results from this equipment and avoid damage through misuse.

  • Page 3: Panel Controls And Connectors

    Rear Panel Controls and Connectors 10. IEC connector - Mains inlet 11. Power switch - Switches mains power to the DSM26 12. Ventilation grille - Do not cover or obstruct airflow to this vent 13. RJ45 connector - LAN Connection to PC or other DSM2-6 14.

  • Page 4: Panel Operation

    Panel Operation Input Parameter Setting Pressing a Mute/Edit button will Mute or un-mute that specific input. Press & hold the MUTE/EDIT key for IN A or IN B for 3 seconds to enter edit mode. Using the BACK and NEXT navigation buttons will step through the various menu options. 1.

  • Page 5: Output Parameter Setting

    Output Parameter setting Pressing a Mute/Edit button will Mute or un-mute that specific input. Press & hold the MUTE/EDIT key for IN A or IN B for 3 seconds to enter edit mode. Using the BACK and NEXT navigation buttons will step through the various menu options. 1.

  • Page 6: Main Menu Setting

    8. Output EQ Output EQ1 - EQ6 (6 independent EQs for each channel) Press BACK or NEXT buttons to step through EQ1 to EQ6 Parameter 1 rotary selects the filter type: Parametric (PEQ), High-Shelf (Hi-S) or Low-Shelf (Lo-S) Press ENTER to confirm the filter type and move down to parameter settings. Parameter 1 rotary control adjusts the cutoff frequency (20Hz to 20kHz) Parameter 2 rotary control adjusts the gain (-30 to +15dB) Parameter 3 rotary control selects bandwidth/slope (0.05-3.00oct or 6-12dB/oct)

  • Page 7: Setting Up

    Setting up The Citronic DSM26 can be operated individually from a PC via USB and can also be linked in multiples over a wider, long-distance network via LAN connection. A maximum of 250 units may be linked together by this method.

  • Page 8: Connection

    Screen Shot Note: 4 input, 8 output software version shown – will default to 2 in, 6 out when DSM26 is connected Display data/curve graph Connection menu Save / Load Program menu Input edit select Channel setup Output edit select...

  • Page 9: Program Menu

    The software will normally be able to detect the correct COM port and this will be displayed. Click OK to confirm the USB connection between PC and DSM26. If unsuccessful, try a different COM port from the list. If COM port is not detected automatically, open the PC’s Hardware Device Manager.

  • Page 10: Channel Function

    Channel functions Clicking on an input channel button switches the button between its own colour or grey. When it is grey, its frequency curve will not be displayed in the top window. Clicking on any of the channel functions button will open an editing window for that function Channel Mute or On select Input Gain setting Normal or Inverted polarity select...

  • Page 11: Lan Setup

    LAN setup On the PC that is to be connected with the DSM26 (or multiple units), navigate to the network adaptor properties. e.g. in Windows 10, click the start button and click the settings icon (cog symbol) Select Network & Internet and Ethernet.

  • Page 12: Specification

    Specifications Power supply 115/230Vac, 50/60Hz (IEC) Power consumption <25W Fuse T315mA Crossover HPF + LPF fully programmable per output Filter type Linkwitz-Riley; Bessel; Butterworth. PC Com port USB and LAN (RJ45) CMRR 65dB (50Hz-10kHz) Input type Analogue or AES digital (XLR) Input/output polarity In phase (+) or reverse (-) Input EQ...
