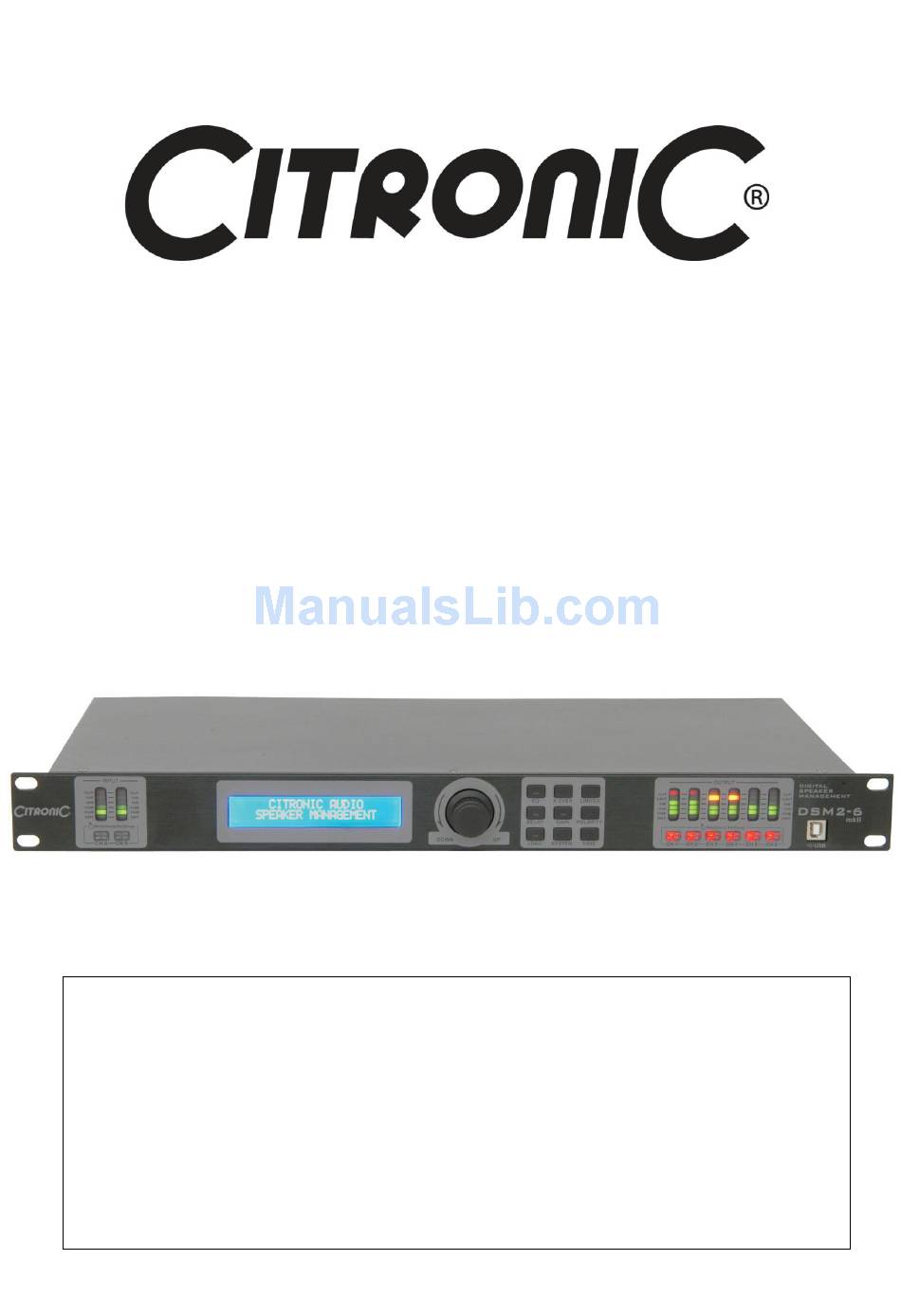

DSM2-6mkII
DIGITAL SPEAKER MANAGEMENT
96kHz sampling frequency, 32-bit A/D and D/A converter, 24-bit DSP processor
Input channel: 6-band parametric EQ, Delay, Polarity
Output channel: Signal select, 6-band parametric EQ, Gain, Delay, Polarity, Crossover, Limiter
Built-in USB and RS485 com ports
Program function, recall and copy
30 internal user programs
Password protection
170.659UK
Features
Advertisement
Related Manuals for Citronic DSM2-6mkII
Summary of Contents for Citronic DSM2-6mkII
- Page 1 DSM2-6mkII DIGITAL SPEAKER MANAGEMENT 170.659UK Features 96kHz sampling frequency, 32-bit A/D and D/A converter, 24-bit DSP processor Input channel: 6-band parametric EQ, Delay, Polarity Output channel: Signal select, 6-band parametric EQ, Gain, Delay, Polarity, Crossover, Limiter ...
-
Page 2: Installation
Introduction Thank you for purchasing this high quality Citronic digital speaker management system. The aim of our audio processing range is to offer cost-effective, high performance sound sculpting tools for live sound reinforcement and installation applications. The Citronic DSM2-6 offers a comprehensive and professional speaker management solution delivering unsurpassed sound quality. - Page 3 Applications Use the DSM2-6 to control and distribute the signal to up to 6 amplifier channels driving different speaker arrays. A typical configuration with 2 subs, 2 mid/tops and 4 surround cabinets is shown below…...
- Page 4 Front Panel 1. MUTE/EDIT buttons for Input channels (CH A, CH B) 2. MUTE/EDIT/LEVEL indicators for Input channels (CH A, CH B) 3. Main LCD display 4. Data wheel 5. Parameter & System buttons 6. MUTE/EDIT/LEVEL indicators for Output channels (CH 1 - CH 6) 7.
- Page 5 6) For speakers which are to be placed at long distances apart, sometimes it is necessary to “time align” the signals from these so that the sound wave from each arrives at the listener at the same moment. This can be achieved by pressing the “DELAY” button and applying a delay to the speaker output nearest to the listener, avoiding the “doubling”...
- Page 6 System Menu Repeated pressing of the SYSTEM button gives access to the following settings… SYSTEM SETUP MENU 1. 1. Device ID Setup SYSTEM SETUP MENU 2. 2. Password SYSTEM SETUP MENU 3. 3. Power On Setup SYSTEM SETUP MENU 4. 4. Backlight Setup SYSTEM SETUP MENU 5.
- Page 7 96kHz sampling frequency, 32-bit floating point DSP Display 2 x 24 character backlit LCD, mute and edit LEDs and 8-LED level meters ≤0.01% @ output = 0dBu/1kHz ≥110dB Power AC 230V, 25W Dimensions 482 x 232 x 44mm Weight 4.2kg © Citronic 2011...
