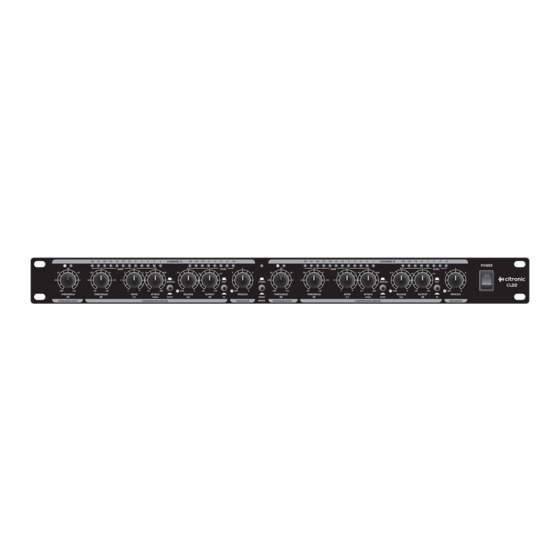

CL22
Stereo Compressor/Limiter
Order ref: 170.935UK
User Manual
Features
• Variable expander/gate per channel
• Variable enhancer per channel
• Dual mono or stereo link modes
• Manual or auto attack & release
• Gain reduction and level meters
• External detection loop per channel
• Balanced connections
Version 1.1
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
Advertisement
Table of Contents
Related Manuals for Citronic 170.935UK
Summary of Contents for Citronic 170.935UK
- Page 1 CL22 Stereo Compressor/Limiter Order ref: 170.935UK User Manual Features • Variable expander/gate per channel • Variable enhancer per channel • Dual mono or stereo link modes • Manual or auto attack & release • Gain reduction and level meters • External detection loop per channel •...
- Page 2 Introduction: Thank you for choosing this Citronic compressor-limiter. This product has been designed to give accurate dynamics control to a wide range of audio systems. In order to achieve the best results from this equipment and avoid damage through misuse, please read and follow these instructions and retain for future reference.
- Page 3 Sometimes we would like to be able to make quiet passages less quiet and loud passages less loud – this is called “compressing” the dynamic range. The following graph shows how audio level over time is affected by compression of a ratio 2:1 170.935UK User Manual...
- Page 4 In addition to these functions, the Citronic CL22 has an EXPANDER/GATE for each channel. When there is a period of silence in audio, often there is low level noise from RF interference, circuitry noise or mains hum. The EXPANDER/GATE section cuts out the audio below a set volume level to eliminate these unwanted noises when the audio should be silent.
- Page 5 Input impedance : Unbalanced 25k ohms Output impedance 60 ohms Operating level +4dBu/-10dBV, switchable Frequency response 20Hz to 20kHz (+0/-0.5dB) Signal to noise ratio >95dBu Crosstalk <100dB 0.04% @ +4dBu 1kHz Dimensions 44 x 482 x 180mm Weight 3.2kg 170.935UK User Manual...
- Page 6 The goods must be disposed of according to your local council guidelines. Errors and omissions excepted. Copyright© 2021. AVSL Group Ltd. Unit 2-4 Bridgewater Park, Taylor Rd. Manchester. M41 7JQ AVSL (EUROPE) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, Ireland 170.935UK User Manual...
