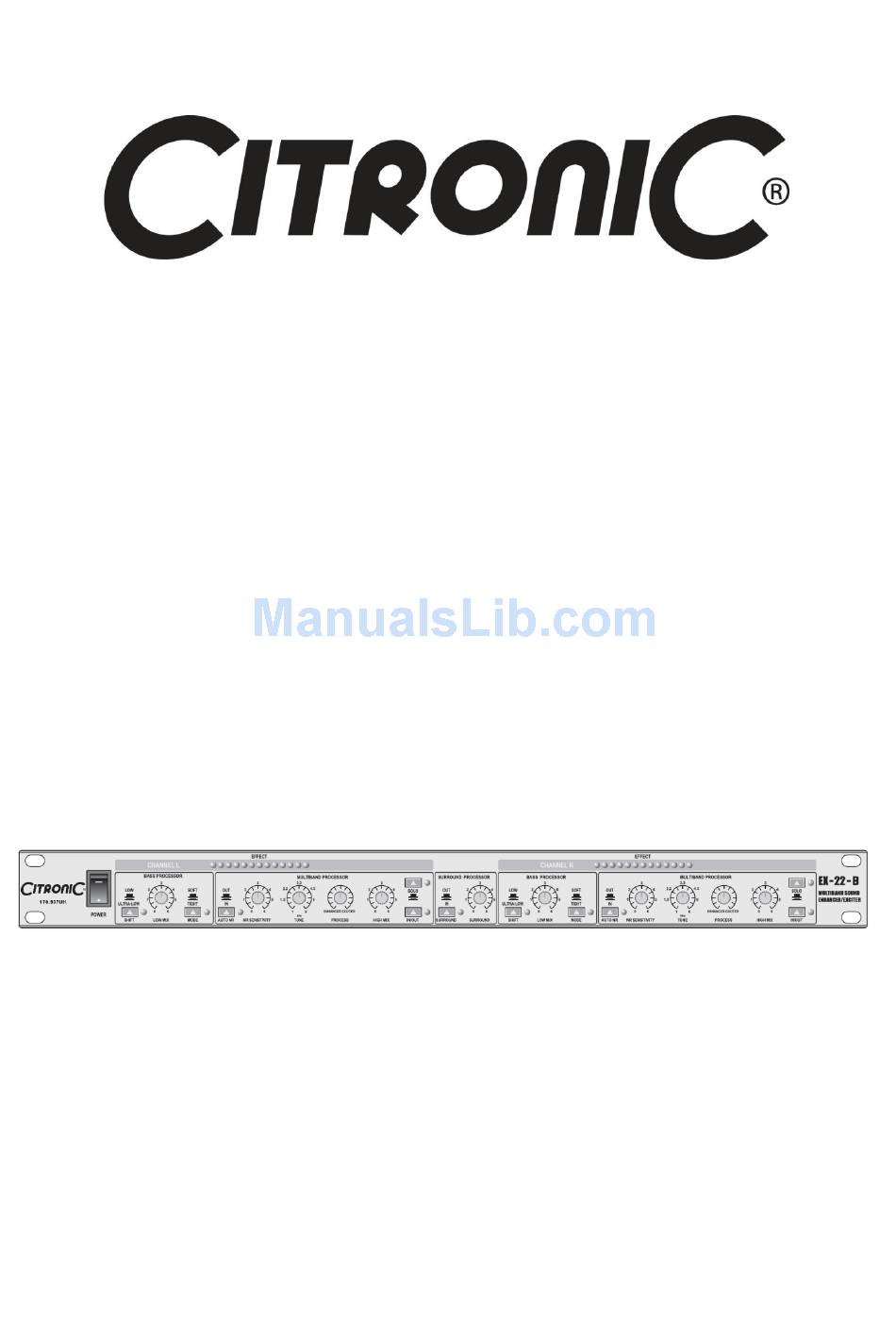

- Page 1 EX-22-B 170.937UK...
- Page 2 Installation Set the EX-22-B into a 1U space in a rack, ensuring enough depth to contain the unit and any connectors attached to it. Secure the front panel with rack screws and nuts to hold in place and stop the unit slipping. Plug the included power cable into the rear panel IEC connector and connect to the mains.
- Page 3 EX-22-B’s PROCESS control. The EX-22-B uses cutting edge SMT circuitry to analyse and re-constitute the phase alignment and pulse symmetry of the signal across multiple frequency bands. This unit can be used either as a stereo unit or as 2 independent channels.
- Page 4 Multiband Processor 4. AUTO NR – Switches the auto noise reduction circuit IN/OUT 5. NR SENSITIVITY – Adjusts the amount of auto noise reduction used 6. TUNE – Varies the centre frequency of the band to be processed 7. PROCESS – Adjusts the balance of the enhancer and exciter processes used 8.
- Page 5 Ω un balanced, balanced Maximum Output Level +21dBu balanced and unbalanced Indicators 13 LED Effect meters & individual function switch LEDs Power AC 230V 50Hz, 18W Dimensions 483 x 150 x 44mm Weight 2.3kg nett (2.8kg shipping) © Citronic 2009...
