Dahua HD Fisheye Panorama Network Camera Quick Start Guide
Please refer to Micro SD card installation steps if you need to install Micro SD card, and operate step 4
after the installation.
Connect the host GND to ground lead, which may improve device reliability. The GND locates next to
exit hole on the rear side of the chassis and the GND screw is M3.
2.2

Micro SD Card Installation

Take down the 3 inner hex screws on the upper enclosure by using the inner hex wrench in the
accessories bag, find the location of Micro SD card slot according to the following figure, and fasten
the 3 screws on the upper enclosure after inserting Micro SD card.
Note:
Please make sure the wire connection between power panel and device motherboard is firm,
otherwise it may cause abnormity.
Make sure the 3 screws are fastened firmly after installation to prevent dust for the device.

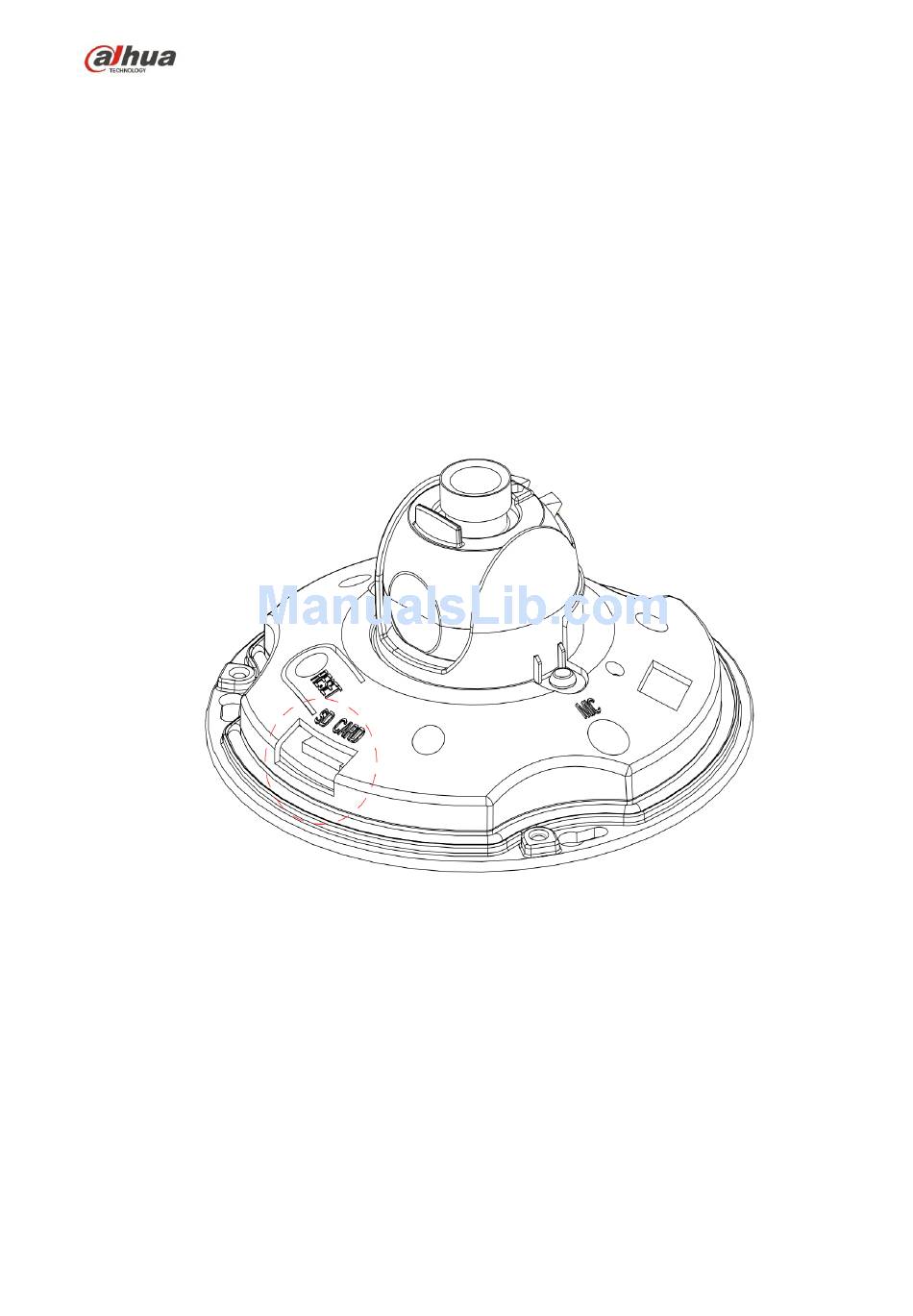

Figure 2-3
