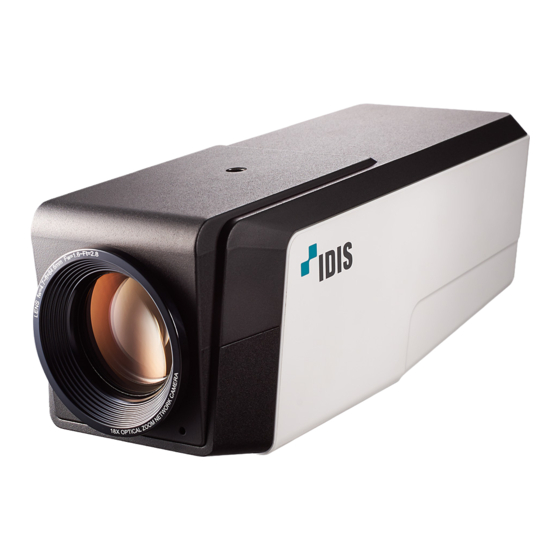

- Page 1 DC-Z Series Installation Manual DC-Z1163 DC-Z1263 Powered by...
-
Page 2: Safety Symbols
Before reading this manual This is a basic installation manual for use of an IDIS netework camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product. -
Page 3: Safety Precautions
Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 10. -
Page 4: Fcc Compliance Statement
© 2014 IDIS Co., Ltd. IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements. -
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
• IP filtering, HTTPS, SSL, IEEE 802.1X, and configurable user authority levels for greater security • Network bandwidth limitation and MAT features for DC-Z1163 / DC-Z1263 is an IP-based network camera more efficient use of network bandwidth that compresses and transmits video over ethernet. You •... -
Page 7: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Network Camera Ferrite Core Open Source Guide Quick Guide... -
Page 8: Overview
PoE switch use, refer to the switch manufacturer's operation manual. You can configure, manage, and upgrade this camera and monitor its images from a remote computer over the network. For more information on network connection setup, refer to the IDIS Discovery operation manual. - Page 9 Part 1 – Introduction • Network LED • SD Memory Card Slot Indicates the network connection status. For more Pull on the connection cover and then insert a SD information, refer to the LED Status Indications. card into the slot. (A product of SanDisk or Transcend is recommended) •...
- Page 10 Connect to the ground side of the power in by using and releasing the reset switch while the camera is the grounding wire. turned on or using the IDIS Discovery program from • Power In a remote location. A factory reset will reboot the system.
-
Page 11: Appendix
Part 1 – Introduction Appendix • When switching over from 12 VDC or 24 VAC to PoE as the power source, the system will be rebooted once the power adapter is disconnected. LED Status Indications • Ground the power port's frame ground terminal before use. -
Page 12: Installation
AI GND NO COM Part 1 – Introduction Installation AUDIO IN GND OUT GND Connect external devices, network and power adapter. Screw the camera to the wall or ceiling. AUDIO IN GND OUT GND Supply the power. Audio In Grounding RS-485 Audio Out Check the wall or ceiling to see if it needs to be... -
Page 13: Dimensions
Part 1 – Introduction Dimensions DC-Z1163 / DC-Z1263 Front DC-Z1163 / DC-Z1263 1/4”-20UNC 77.8mm (3.06”) right DC-Z1163 / DC-Z1263 bottom DC-Z1163 / DC-Z1263 190.1mm (7.48”) 1/4”-20UNC... -
Page 14: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio Out Audio In Power Alarm Out Sensor In Network Camera Monitor Out... -
Page 15: With Non Directip™ Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 16: Part 3 - Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below. -
Page 17: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Lens Lens Type Varifocal optical (18x) zoom lens Focal Length F1.6 ~ F2.8, f=4.7 mm to 84.6 mm Angle View H: 61.2° (Wide) ~ 3.6°(Tele) V: 35.6° (Wide) ~ 2.1°(Tele) D: 68.9°(Wide) ~ 4.1°(Tele) Lens Iris Control DC auto iris... - Page 18 30 ips @ 1920x1080 + 30 ips @ 704x480 (Dual stream) Multi-Stream Primary, Secondary, Tertiary Audio DC-Z1163 / DC-Z1263 Compression Algorithm G.726 (8KHz), G.711 μ – Law (8KHz), ADPCM (16KHz) DC-Z1163 / DC-Z1263 Video Out** 1 composite, 1 Vp-p...
- Page 19 Part 3 - Appendix Connector DC-Z1163 / DC-Z1263 Video Out** Audio I/O Terminal Block Alarm I/O Terminal Block Ethernet Port RJ-45 RS485 Serial Port Terminal Block Use these ports for previewing video and not monitoring video. General DC-Z1163 / DC-Z1263 Exterior Dimensions 2.89"...
- Page 20 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
