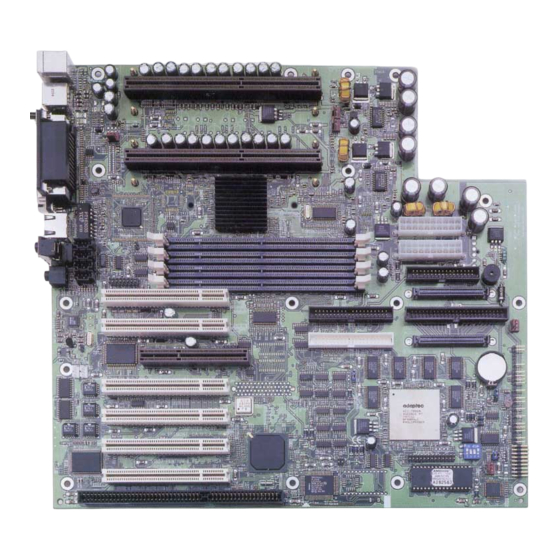

Tyan S1837
Thunderbolt
Motherboard User's Manual
Revision 1.00
Copyright © Tyan Computer Corporation, 1999. All rights reserved. No part of this
manual may be reproduced or translated without prior written consent from Tyan
Computer Corp.
All registered and unregistered trademarks and company names contained in this
manual are propery of their respective companies including, but not limited to the
following.
AMIBIOS is a trademark of American Megatrend Incorporated.
Windows is a trademark of Microsoft Corporation.
IBM, PC, AT, PS/2 are trademarks of IBM Corporation.
INTEL, Pentium II, Celeron are trademarks of Intel Corporation.
S1837 Thunderbolt is a trademark of TYAN Computer Corporation.
Information contained in this publication has been carefully checked for accuracy and
reliability. In no event will Tyan Computer be held liable for any direct or indirect,
incidental or consequential damage, loss of use, loss of data, or other malady resulting
from errors or inaccuracies of information contained in this manual. The information
contained in this document is subject to change without notice.
PRINTED IN USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1837 and is the answer not in the manual?

Questions and answers

Related Manuals for TYAN S1837

Summary of Contents for TYAN S1837

  • Page 1 Information contained in this publication has been carefully checked for accuracy and reliability. In no event will Tyan Computer be held liable for any direct or indirect, incidental or consequential damage, loss of use, loss of data, or other malady resulting from errors or inaccuracies of information contained in this manual.

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction............... 4 Overview....................4 Icons..................... 5 Hardware Specifications/Features............6 Software Specifications..............8 Technical Support................8 Returning Merchandise for Service..........9 2. Board Installation.............. 11 Unpacking.................... 11 Installation................... 11 Quick Reference for Jumpers.............13 Map of Motherboard Jumpers............14 Setting Jumpers................... 16 Server Management Connector (External SMI)......18 Chassis Intrusion Alarm Connector..........
  • Page 3 Plug and Play Setup................74 Peripheral Setup.................. 79 Supervisor and User Security............83 Language Utility.................. 84 Flash Writer Utility................84 4. System Resources............. 85 Beep Codes..................85 Troubleshooting System Problems..........86 Displayed Error Messages..............87 Appendix 1 - CPU Retention Module Options..........89 Appendix 2 - Adaptec Ultra2 LVD SCSI............

  • Page 4: Introduction

    Creative ES1373 Audio, onboard Intel Ethernet, and onboard high speed I/O. With I/O and drive controller support built onboard, the one AGP slot, six PCI and one ISA slots (one shared, seven usable) are free for numerous add-on http://www.tyan.com...

  • Page 5: Icons

    Remember to take a look at TYAN Computer’s web site located at http://www.tyan.com. There you can find information on all of TYAN’s products along with FAQs, distributors list, drivers, and BIOS setting explana- tions. Icons In order to help you navigate this manual and set up your system, we have added several icons to our format.

  • Page 6: Hardware Specifications/Features

    • • • • • Intel LANDesk Client Manager software • • • • • Chassis intrusion detection capable * See TYAN website for list of compatible memory modules. http://www.tyan.com...

  • Page 7: Expansion Slots

    • One PS/2 keyboard port • Wake-on LAN header (requires ATX 2.01 power supply) • Adaptec AIC-7896 dual channel Ultra2 Onboard UltraWide SCSI SCSI • Two 68-pin high density Ultra2 SCSI ports • One 50-pin SCSI-2 port • Adaptec Ultra SCSI BIOS S1837 Thunderbolt...

  • Page 8: Software Specifications

    (which can have expensive consequences). If your dealer is unable to assist you, try our web page, http:// www.tyan.com technical support phone line, (510) 440-8808 or e-mail address techsupport@tyan.com...

  • Page 9: Returning Merchandise For Service

    Return Merchandise Authorization (RMA) number. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid, or hand-carried to the manufacturer. TYAN will pay to have the board shipped back to you. S1837 Thunderbolt...
  • Page 10 Chapter 1 Introduction This page is intentionally left blank. http://www.tyan.com...

  • Page 11: Board Installation

    One System Management & Driver CD; includes complete drivers for SCSI, LAN and audio controllers for Creative Labs E573 PCI sound. Installation You are now ready to install your motherboard. The mounting hole pattern of the Thunderbolt matches the ATX system board specifications. Your chassis S1837 Thunderbolt...
  • Page 12 Subsequent problems may not arise immediately because electrostatic dis- charge damage, unlike physical damage, causes the device to fail over time. *Power Supply Requirement: ATX Power Supply should be 2.01 compliant. Standby current must be 750mA or higher (SB5V = 0.75A) http://www.tyan.com...

  • Page 13: Quick Reference For Jumpers

    The tables and maps on the following pages will help you set the jumpers for CPU speed, Infrared, and external connector pin assignments, among others. The miniature motherboard maps will help you locate the jumpers on your board. A full-page map of the motherboard can be found on the next two pages. S1837 Thunderbolt...

  • Page 14: Map Of Motherboard Jumpers

    J P 3 1 PCI slot 6 FAN4 Intel I/O AMIBIOS LM79 ISA slot 1 J P 3 2 The tiny “1”s next to jumpers of 3 pins or more indicate the position of pin 1 for that jumper. http://www.tyan.com...
  • Page 15 Intel 443GX 2 SEC slots 4 DIMM slots IDE and Floppy connectors ATX Power supply connectors 1 ISA slot Adaptec AIC-7896 6 PCI slots AMIBIOS S1837 Thunderbolt...

  • Page 16: Setting Jumpers

    There is no need to set the bus speed. The motherboard auto-detects the bus speed of the CPU. Presently all Celeron CPUs use a 66MHz bus speed. Tyan does not recommend operating CPUs, memory, or PCI Bus at higher than rated ! ! ! ! ! speed.
  • Page 17 *Power LED: For 2-pin: bicolor/single color - Use pins 2-4 For 3-pin: bicolor - Use pins 2-4 and GND pin 13 JP32 To p Bottom Pin1 Pin2 Top Pin Pin17 Bottom Pin JP32 Side View 1-E. Wake-On Ring Connector (JP33) +5 VSB Ground S1837 Thunderbolt...

  • Page 18: Server Management Connector (External Smi)

    When using Intel’s LANDesk system management software, you may monitor the status of the CPU Fans by connecting them to the Fan1 and/or Fan2 connectors. You will NOT be able to monitor your CPU fan with the other Fan connectors. http://www.tyan.com...

  • Page 19: Audio Connectors

    * Default setting is 1-2 1-P. Onboard Network Interface Enable/Disable (JP25) Enable Disable JP25 1-Q. Clear CMOS and Reset Password (Jumper JP9) Def ault Reset If you have been locked out of your system because you forgot your pass- S1837 Thunderbolt...

  • Page 20: Soft Power Connector

    (Sony CR2032). Flash EEPROM The Thunderbolt uses flash memory to store BIOS firmware. It can be updated as new versions of the BIOS become available. You can upgrade your BIOS easily using the flash utility (see page 84). http://www.tyan.com...

  • Page 21: Mounting The Motherboard In The Chassis

    Because of this, your memory may not work correctly in a TYAN board though it may work well in a competitor’s board. This is because many of our competitors do not adhere to the strict tolerances required for high performance.
  • Page 22 DIMM (see Figure 2-4 on the next page). To remove your DIMM, simply pull the clips back, and pull up on the module. Place the DIMMs in an anti-static bag as soon as you remove them to avoid static damage. http://www.tyan.com...
  • Page 23 Some details of memory installation: • At least one unbuffered DIMM must be installed for the system to POST. ! ! ! ! ! • The mainboard supports 32MB, 64MB, 128MB SDRAM; and supports 256MB registered SDRAM DIMM modules. * important! S1837 Thunderbolt...

  • Page 24: Cache Memory

    DO NOT use registered and non-registered memory chips simultaneously! (Check with your memory dealer for more information). important! See www.tyan.com for latest memory compatibility information. Cache Memory Celeron processors have the L2 (Level 2) cache built into their architecture, so there is no need for an L2 cache on the motherboard.

  • Page 25: Installing The Cpu And Cooling Fan

    Installing CPU Retention Modules Installation of a Pentium II processor requires a CPU retention module, which is first secured onto the motherboard. Tyan offers a variety of retention mechanisms for the different CPU types. See Appendix 1 for options. Installation of SECC2 CPUs (Figuer 2-7 above) with the retention modules require a little more attention and care.
  • Page 26 Plug the CPU’s cooling fan cable into the cooling fan connector on the board. There will be a plastic clip assembly similar to that of the ATX power connector that will force you to connect the fan cable correctly (see Figure 2-11 on the following page). http://www.tyan.com...
  • Page 27 Pentium II CPU slot. Insert the heat sink mount into the holes on the motherboard. When the bracket is properly inserted into the holes on the motherboard, you will hear a clicking noise. S1837 Thunderbolt...
  • Page 28 CPU card of regular Pentium II’s. On the other hand, the plastic CPU enclosure covers only the side faces of the SECC2 Pentium II card. Due to the physical differences in the SECC2 CPU, installing the retention modules requires a different technique than the ones previously discussed. http://www.tyan.com...
  • Page 29 Figure 2-16 Warning: DO NOT first screw the retention braces onto the motherboard by ! ! ! ! ! themselves. If you do, you will have difficulties inserting the CPU into the retention braces and CPU slot. important! S1837 Thunderbolt...
  • Page 30 Warning - Because the braces are loosely held against the CPU, they can easily fall off. You must hold both braces against the CPU while lifting all three components above the motherboard. (See Figure 2-19 on the following important! page.) http://www.tyan.com...
  • Page 31 The end result should look like Figure 2-20. Figure 2-20 When removing the CPU, unscrew the nuts on the retention braces and remove all three components at once. This may require careful firm tugs to pull the CPU out of its slot. S1837 Thunderbolt...

  • Page 32: Connecting Ide And Floppy Drives

    • Hard drive lights are constantly on: bad IDE cable or defective drives/motherboard. Try another HDD. • Hard drives do not power up: check power cables and cabling. May also be a bad power supply or IDE drive. http://www.tyan.com...

  • Page 33: Connecting Floppy Drives

    In most cases, there will be a key pin on the cable which will force you to connect the cable properly. Figure 2-23 S1837 Thunderbolt...

  • Page 34: Connecting The Power Supply

    Reverse the cable at the motherboard end and try again. 6. Connecting the Power Supply Tyan recommends using an ATX power supply that conforms to industry standard revision 2.01. The Tomahawk BX/A+ motherboard comes equipped with one onboard power connector.

  • Page 35: Installing Add-On Cards

    • Make sure that the cards are seated securely into the slots. • Before turning on the system, make sure no cards are touching S1837 Thunderbolt...

  • Page 36: Connecting Ps/2, Usb, Serial & Parallel Drivers

    Figure 2-26 below shows the ATX double row connectors on this board. The Com and Printer ports, as well as the other ports, are labeled. PS/2 Mouse Ethernet Line-In 2 USB ports PS/2 Keyboard Com1 Com2 Speaker Figure 2-26 http://www.tyan.com...

  • Page 37: Intel Ethernet Setup And Use

    Note: Only TYAN cables will work on this motherboard. If you are using an existing case with old cables, your system will not function properly. Use only TYAN-approved cables. You are done! Other than checking the jumper settings and cable connections and putting the case back on, you are done.
  • Page 38 ! ! ! ! ! Before installing the Intel 82559 Ethernet drivers, the complete LAN 82559 directory and all it’s contents must first be copied from the Tyan Driver CD important! onto your hard drive. The 82559 driver can then be installed from your hard...

  • Page 39: Automatic Configuration

    If Setup finds a problem, it displays the results and some possible solutions. 5. When Setup finishes the tests, you’ll see the Install Network Drivers screen. S1837 Thunderbolt...

  • Page 40: Windows Nt Server Or Workstation

    The Intel 82559-based Integrated Fast Ethernet For WfM adapter IRQ level and I/O address are automatically set by the BIOS each time you start your computer. Start your computer to automatically configure the adapter. Configuration is complete when Windows NT starts or the DOS prompt appears. http://www.tyan.com...
  • Page 41 You will need to have the Tyan driver CD and the NT 4.0 CD for this procedure. 1. Boot NT 4.0 2. Get the Tyan Driver CD and copy the Intel LAN drivers to a directory on your hard disk drive. procedure 3.

  • Page 42: Install Network Drivers From Diskette

    Panel and then to Device Manager. Under the “Other Devices” section, procedure choose “PCI Ethernet Controller” and click “Remove”.) 2. Reboot the system. An “Update Device Driver Wizard” dialog box should appear indicating that a “PCI Ethernet Controller” has been found. http://www.tyan.com...

  • Page 43: Other Operating Systems

    5. When the “Copying Files” dialog box appears, type D:\LAN82559 at the command prompt (assuming D: is your CD-ROM drive). 6. Windows will copy files from both Tyan and Windows 95 CD. Continue installation process by following the Windows instructions.
  • Page 44 If the full duplex hub does not provide auto-negotiation, you need to set the adapter duplex mode manu ally (see following paragraphs) • Half duplex. The adapter performs one operation at a time; it either sends or receives. http://www.tyan.com...
  • Page 45 5. Run Windows 95 setup with the following command line switches: Z:\PUSH> SETUP /IS /IW For debugging purposes, include the additional switches to show each device class scanned for during PnP detection: Z:\PUSH> SETUP /IS /IW /P B;G=3 S1837 Thunderbolt...

  • Page 46: Troubleshooting

    Make sure you’re using the drivers that come with this adapter. Drivers that support previous ver- sions of the Intel PRO/100+ Manage- ment Adapter do not support this version of the adapter. • Make sure the hub port and the http://www.tyan.com...

  • Page 47: Common Problems And Solutions

    • Make sure you have the correct type of cable between the adapter and the hub. 100 BASE-TX requires two pairs. Some hubs require a crossover cable while others require a straight-through cable. See the Cabling README file for more information on cabling. S1837 Thunderbolt...

  • Page 48: Technical Information

    Fast Ethernet Hub and Switches The two basic types of hubs are shared hubs and switching hubs. Intel PRO/ 100+ adapters can be used with either type of hub for 10 Mbps. At 100 Mbps, a TX hub or switch is required. http://www.tyan.com...
  • Page 49 Switching hubs can effectively increase the overall band- width available on the network, significantly improving performance. Switching hubs can also support full duplex. For more information on Fast Ethernet, visit the Network Products website (http:// www.intel.com/network). S1837 Thunderbolt...

  • Page 50: Creative Labs Sound Drivers Installation Note

    Note: This note assumes drive D: for your CDROM drive. 1) Go to the following directory path: D:\Audio\S1837\drivers\setup\english 2) Select (double-click) sbsetup.exe - Setup window will appear with “Sound Blaster Setup Options”. The two options are “Remove Only” and “Remove and Install Software”.
  • Page 51 A: The Ethernet driver can not be installed directly from the Tyan Driver CD. Before installing the Intel 82559 Ethernet drivers, the complete 82559 directory and ALL its components must first be copied from the Tyan CD onto your hard drive. The 82559 installation program can then be copied normally from your hard drive.
  • Page 52 7896 chip then you must install NT 4.0 with a standard 1.44MB floppy disk. Q: Where can I get Intel PRO/100+ Management Adapter drivers? A: You will find the drivers located in the Tyan Drivers CD under the subdirectory ‘LAN82559’. Please note: You must use the drivers provided in the Tyan CD only.

  • Page 53: Bios Configuration

    Secondary IDE Master Auto Secondary IDE Slave Auto Auto-Detect Hard Disks [ Enter ] Boot Sector Virus Protection Disabled ↑ Previous Item ↓ Next Item ← → Select Menu ESC:Exit Enter:Select F5:Setup Defaults F6:Original Values F10:Save & Exit S1837 Thunderbolt...

  • Page 54: Main Setup

    Primary IDE Slave Auto Secondary IDE Master Auto Secondary IDE Slave Auto Auto-Detect Hard Disks [ Enter ] Boot Sector Virus Protection Disabled ↑ Previous Item ↓ Next Item ← → Select Menu ESC:Exit Enter:Select F5:Setup Defaults F6:Original Values F10:Save & Exit http://www.tyan.com...
  • Page 55 Maximum Capacity CD-ROM: Use for ATAPI CD-ROM drives LBA Mode Block Mode Double click [AUTO] to Fast Programmed I/O Modes set all HDD parameters 32 Bit Transfer Mode ON automatically ↑↓ ESC:Back Enter:Select :Select Items F5:Setup Defaults F6:Original Values S1837 Thunderbolt...
  • Page 56 (when you select Auto for Type), or you can turn the modes On or Off yourself. Block Mode: If On, Block Mode automatically detects the optimal number of block read/writes per sector that the drive can support. http://www.tyan.com...
  • Page 57 . ) r S1837 Thunderbolt...

  • Page 58: Boot Sector Virus Protection

    Load Optimal Settings [ Enter ] Load configuration Load Fail Safe Settings [ Enter ] settings giving Load Original Values [ Enter ] highest performance. ↑ Previous Item ↓ Next Item ← → Select Menu ESC:Exit Enter:Select F5:Setup Defaults F6:Original Values F10:Save & Exit http://www.tyan.com...

  • Page 59: Advanced Cmos Setup

    F lo p py A c c es s C o nt ro l R ead -W rite R ea d-W rit e H ard D is k A c c es s C o n tro l R ead -W rite R ea d-W rit e S1837 Thunderbolt...

  • Page 60: Advanced Setup

    . n i < > l t f i t i a v i r g i f v i r e t f o l l v i r . n i , t o < > l http://www.tyan.com...
  • Page 61 This option specifies the read-write access that is set when booting from a hard disk drive. The settings are Read-Write or Read-Only. S.M.A.R.T. for Hard Disks Set this option to Enabled to permit AMIBIOS to use the SMART (System S1837 Thunderbolt...
  • Page 62 When set to Enabled, the contents of the F0000h system memory segment can be read from or written to cache memory. The contents of this memory segment are copied from the BIOS ROM to system RAM for faster execution. The settings are Enabled or Disabled. The Optimal default setting is Enabled. http://www.tyan.com...

  • Page 63: Mps Revision

    The ROM area not used by ISA adapter cards is allocated to PCI adapter cards. The settings are: i t t a s i r e t o i t t t i r . y r S1837 Thunderbolt...

  • Page 64: Chipset Setup

    M e th o d o f M e m o ry D e t e c tio n A u t o & S P D A ut o & S P D * D R A M Int eg rit y M o d e N / A N / A http://www.tyan.com...

  • Page 65: Usb Function

    C P U B us F re quen c y A ut o A ut o * Setting option not selectable. USB Function Set this option to Enabled to enable USB (Universal Serial Bus) support. The settings are Enabled or Disabled. S1837 Thunderbolt...
  • Page 66 The settings are Disabled, 32, 64, 96, 128, 160, 192, or 224. Multi-Trans Timer (Clks) This option specifies the multi-trans latency timings (in PCI clocks) for devices in the computer. The settings are Disabled, 32, 64, 96, 128, 160, 192, or 224. http://www.tyan.com...
  • Page 67 DRAM system memory access cycle when SDRAM system memory is installed in this computer. The settings are Auto, 2 SCLKs, or 3 SCLKs. Power Down SDRAM If this option is set to Enabled, the SDRAM Power Down feature is enabled. The settings are Enabled or Disabled. S1837 Thunderbolt...
  • Page 68 Set this option to Enabled to enable AGP parity error response. The settings are Enabled or Disabled. 8bit I/O Recovery Time This option specifies the length of a delay inserted between consecutive 8-bit I/O operations. The settings are Disabled and from 1 to 8 Sysclk (system clocks) in increments of one. http://www.tyan.com...
  • Page 69 This option provides selective CPU Bus Frequency; however, it is strongly recommended that the default setting (Auto) be selected. Unpredictable situations may arise if the Intel default CPU bus speed is not used. The settings are Auto, 66.8MHz, 68.5MHz, 75MHz, 83.3MHz, 100MHz, 103MHz, or 112MHz. S1837 Thunderbolt...

  • Page 70: Power Management Setup

    D is abled D is abled S lo w C lo c k R at io 50 % - 62 .5% 5 0% - 6 2.5 % D is p lay A c t iv it y Igno re Igno re http://www.tyan.com...
  • Page 71 The settings are shown in the table below. i t t t t u r e t . f f t t u r e t l l u Green PC Monitor Power State This option specifies the power state that the green PC-compliant video S1837 Thunderbolt...
  • Page 72 Suspend Time Out This option defines the length of time that the system, while in Standby mode, must be inactive before it enters Suspend mode. The settings are Disabled and from 4 minutes to 508 minutes, in increments of 4 minutes. http://www.tyan.com...
  • Page 73 If this option is Enabled, the CPU fan will turn off when the system is in Suspend mode. If Disabled, the CPU fan will remain on while the system is in Suspend mode. The settings are Enabled or Disabled. RTC Wake-up S1837 Thunderbolt...

  • Page 74: Plug And Play Setup

    Plug and Play Setup [ Enter ] and Play features Peripheral Setup [ Enter ] Change Language Setting English ↑ Previous Item ↓ Next Item ← → Select Menu Plug and Play Setup Default Settings Chart ESC:Exit Enter:Select F5:Setup Defaults F6:Original Values F10:Save & Exit http://www.tyan.com...
  • Page 75 F irs t -Las t F irs t -Las t B IO S D ev no de f o r S had o w R A M D is abled D is abled * Setting option is not selectable S1837 Thunderbolt...
  • Page 76 The settings are Auto and Slot1 through Slot6. If Auto is selected, AMIBIOS automatically determines the correct setting (including using the onboard controller if no offboard controller card is detected). This option forces IRQ 14 and 15 to a PCI slot on the PCI local bus. This is necessary to http://www.tyan.com...
  • Page 77 PCI and PnP devices. The settings are ISA/EISA or PCI/PnP. Reserved Memory Size This option specifies the size of the memory area reserved for legacy ISA adapter cards. The settings are Disabled, 16K, 32K, or 64K. S1837 Thunderbolt...
  • Page 78 The settings are First-Last or Last-First. BIOS Devnode for Shadow RAM This option is used for some add-on card ROMs which do not claim the correct memory range that they occupy. The settings are Disabled or Enabled. http://www.tyan.com...

  • Page 79: Peripheral Setup

    O nbo ard P aralle l P o rt 37 8 3 78 P aralle l P o rt M o de N o rm al N o rm a l *E P P V ers io n N / A N / A S1837 Thunderbolt...
  • Page 80 This option specifies the base I/O port address of serial port 2. The settings are Auto, Disabled, 3F8h, 2F8h, 3E8h, or 2E8h. Serial Port2 Mode This option specifies the operating mode for serial port 2. This option will not http://www.tyan.com...

  • Page 81: Ir Receiver Pin

    S1837 Thunderbolt...
  • Page 82 DMA channel used by the parallel port. The settings are 0 through 7 in increments of one. Onboard IDE This option specifies the IDE channel used by the onboard IDE controller. The settings are Disabled, Primary, Secondary, or Both. http://www.tyan.com...

  • Page 83: Supervisor And User Security

    User Security option and enter a password for the user. You can enter a new User password at any time simply by selecting the User Security option, and typing in a new password. To enter a new Supervisor S1837 Thunderbolt...

  • Page 84: Language Utility

    5. If the system does not reboot in three minutes, power down the system wait a few seconds, and then turn the power back on again. You will be prompted to press <F1> to run Setup. You may check your settings at this time, or simply save and exit the program. http://www.tyan.com...

  • Page 85: System Resources

    If AMIBIOS POST can initialize the system video display, it displays the error message. Displayed error messages, in most cases, allow the system to continue to boot. Displayed error messages are described on pages 87-88. See the top of the next page for the beep code chart. S1837 Thunderbolt...

  • Page 86: Troubleshooting System Problems

    BIOS ROM chip is bad. The system probably needs a new BIOS ROM chip. 11 times... reseat the cache memory on the motherboard. If it still beeps, replace the cache memory. 4, 5, 7, or 10 times... the motherboard must be replaced. http://www.tyan.com...

  • Page 87: Displayed Error Messages

    . y r e t t e t t . y r f i d r e f u l i o i t e z i f i d r e f i l i t . y t S1837 Thunderbolt...
  • Page 88 . t o : s i y t i y t i . y r : s i y t i y t i . s s y t i http://www.tyan.com...

  • Page 89: Appendix 1 - Cpu Retention Module Options

    CPU Retention Module Options Tyan offers two different options for securing Intel’s Pentium II and Celeron CPUs onto the motherboard. Each option provides retention for both older Pentium II’s as well as newer Pentium II’s (including Slot 1 type Celeron).
  • Page 90 OPTION 2: One universal retention module is included in the motheboard package. This type of retention module adapts to both old and new Pentium II CPUs - see Figure 3. (Screws for the retention modules are provided) Figure 3 http://www.tyan.com...

  • Page 91: Appendix 2 - Adaptec Ultra2 Lvd Scsi

    LVD Ultra2 SCSI bus, the Ultra2 devices automatically switch to single-ended mode. When an Ultra2 SCSI device operates in single- ended mode it is subject to the cable distance limitations and signal noise problems of that interface. S1837 Thunderbolt...

  • Page 92: Board Layout

    The following diagram shows the major SCSI connectors and jumpers for the motherboard. Floppy connector Ultra2 SCSI Channel B Primary IDE connector Narrow SCSI Channel A Secondary IDE connector Ultra2 SCSI Channel A J P 2 3 J 1 9 Adaptec 1 2 3 4 http://www.tyan.com...

  • Page 93: Setting Up Scsi Peripherals

    Using an Ultra SCSI terminator on an LVD Ultra2 SCSI bus will force the bus to single-ended mode, limiting the speed and cable distance. For this reason be sure that you have the necessary Ultra2 cable or terminator before installing the Ultra2 SCSI devices. S1837 Thunderbolt...

  • Page 94: Connecting Scsi Peripherals

    Connect to Motherboard Ultra2 SCSI connector Connect to Ultra2 Peripherals Built-in Terminator STEP 2: Plug the long end of the cable(s) to the Ultra2 connector(s) on the motherboard - Channel A or B. (refer to the board layout for connector location). http://www.tyan.com...
  • Page 95 STEP 1: Locate a 68-pin or 50-pin internal Ultra SCSI cable. Connect to Fast/Wide Ultra Peripheral (Terminated) Connect to Motherboard Connect to Fast/Wide Ultra 68-pin connector Peripheral (Not Terminated) Connect to Fast/Ultra Narrow Connect to Fast/Ultra Narrow Peripheral (Terminated) Peripheral (Not Terminated) S1837 Thunderbolt...
  • Page 96 Each Ultra2 SCSI peripheral connects to the next in a daisy chain. Therefore each external peripheral will require an external cable. As an option, Tyan provides an external Ultra2 SCSI connector that can be inserted in an expansion slot. The cable end of the external SCSI connector...

  • Page 97: Additional Termination Information

    When installed in multiple computer configurations, i.e. clusters, you can force the motherboard to enable termination even when power to the computer is OFF. This would enable the other computers in the cluster to continue to operate the shared SCSI devices even when the computer S1837 Thunderbolt...

  • Page 98: Installing Aic7896 Scsi Software

    Computers with Windows NT Installed STEP 1: Turn on all external peripherals and then the computer. STEP 2: Start Windows NT on your computer. STEP 3: Insert the 7800 Family Manager Set setup diskette in your floppy disk drive. http://www.tyan.com...
  • Page 99 • Are all SCSI cables and power cables properly connected? • Does each device on the SCSI bus have a unique SCSI ID? • Does the total SCSI cable length exceed the maximum allowable length? • Is the SCSI chain properly terminated? S1837 Thunderbolt...

  • Page 100: Appendix 3 - Glossary

    AT design by rotating the board ninety degrees, so that the IDE connectors are closer to the drive bays, and the CPU is closer to the power supply and cooling fan. The keyboard, mouse, serial, USB, and parallel ports http://www.tyan.com...
  • Page 101 A typical setup would be a cache size of 512KB, and a cacheable area of 512MB. In this case, up to 512MB of the main memory onboard is capable of being S1837 Thunderbolt...
  • Page 102 EDO RAM (Extended Data-Out RAM) speeds access to memory locations by assuming that memory addresses are static: the next time it looks for a bit of data, it will be at the same spot, or one nearby. EEPROM Electrically Erasable Programmable ROM, also called Flash BIOS, is a http://www.tyan.com...
  • Page 103 Form factor is an industry term for the size, shape, power supply type, and external connector type of the PCB (personal computer board) or motherboard. The standard form factors are the AT and ATX, although TYAN also makes some Baby-AT boards.
  • Page 104 Pipelining improves system performance by allowing the CPU to begin executing a second instruction before the first is completed. A pipeline can be likened to an assembly line, with a given part of the pipeline repeatedly http://www.tyan.com...
  • Page 105 SIMM bank/socket SIMM sockets are the physical slots into which you stick SIMM modules. A pair of SIMM sockets form a SIMM bank, and act as a unit. If only one socket is filled, the bank will not operate. S1837 Thunderbolt...
  • Page 106 ZIF socket Zero Insertion Force sockets make it possible to insert CPUs without damaging the sensitive pins. The CPU is lightly placed in an open ZIF socket, and the metal lever pulled down. This shifts the processor over and down, guiding it into place on the board. http://www.tyan.com...
  • Page 107 (EMC). CAUTION: Lithium Batteries included with this board. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer. Dispose of used batteries according to manufacturer instructions. Document # D1341-100 S1837 Thunderbolt...
  • Page 108 Jumper Settings Quick Reference CPU Speed Settings (Switch S4) JP32 Connector Pinout Multiplier Bus Speed CPU speed V C C P o we r L E D (set Jmprs (set in H D D L E D S le e p L E D on board) BIOS) G ro u n d...
