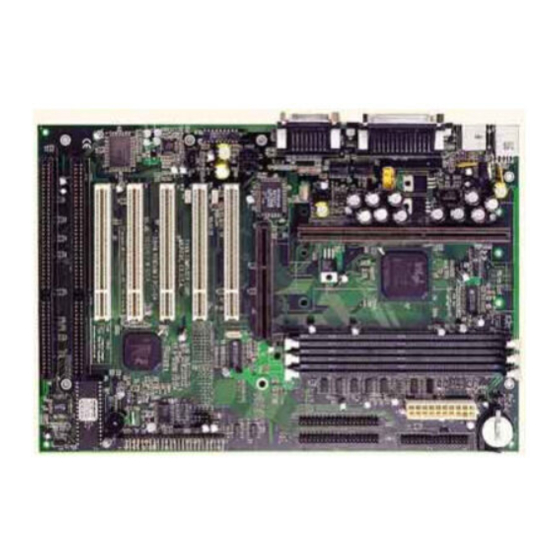

Tyan S1846 Tsunami ATX
Motherboard User's Manual
Revision 1.20
Copyright © Tyan Computer Corporation, 1998. All rights reserved. No part of this
manual may be reproduced or translated without prior written consent from Tyan
Computer Corp.
All registered and unregistered trademarks and company names contained in this
manual are propery of their respective companies including, but not limited to the
following.
AMIBIOS is a trademark of American Megatrend Incorporated.
Windows is a trademark of Microsoft Corporation.
IBM, PC, AT, PS/2 are trademarks of IBM Corporation.
INTEL, Pentium II, Celeron are trademarks of Intel Corporation.
S1846 Tsunami and Tsunami-ATX are trademarks of TYAN Computer Corporation.
Information contained in this publication has been carefully checked for accuracy and
reliability. In no event will Tyan Computer be held liable for any direct or indirect,
incidental or consequential damage, loss of use, loss of data, or other malady resulting
from errors or inaccuracies of information contained in this manual. The information
contained in this document is subject to change without notice.
PRINTED IN USA.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1846 Tsunami ATX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TYAN S1846 Tsunami ATX

Summary of Contents for TYAN S1846 Tsunami ATX

  • Page 1 Information contained in this publication has been carefully checked for accuracy and reliability. In no event will Tyan Computer be held liable for any direct or indirect, incidental or consequential damage, loss of use, loss of data, or other malady resulting from errors or inaccuracies of information contained in this manual.

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction............... 4 Overview..............4 Icons................5 Hardware Specifications/Features......... 6 Software Specifications..........8 Technical Support............8 Returning Merchandise for Service........ 9 2. Board Installation.............. 10 Unpacking..............10 Installation..............10 Setting Jumpers............25 3. Onboard Resource Settings..........26 Quick Reference for Jumpers........26 Map of Motherboard Jumpers........
  • Page 3 Supervisor and User Security.........67 Anti-Virus Security............68 Detect IDE Utility............69 Language Utility............69 Flash Writer Utility............69 5. System Resources............. 72 POST Checkpoint Codes..........72 Beep Codes..............80 Troubleshooting System Problems........81 Displayed Error Messages..........82 Glossary............... 84...

  • Page 4: Introduction

    I/O. Flexibility and expandability have been designed into the Tsunami ATX. With I/O and drive controller support built onboard, the one AGP slot, five PCI and two ISA slots (one shared, seven usable) are free for http://www.tyan.com...

  • Page 5: Icons

    Remember to take a look at TYAN Computer’s web site located at http://www.tyan.com. There you can find information on all of TYAN’s products along with FAQs, distributors list, drivers, and BIOS setting explanations. Icons In order to help you navigate this manual and set up your system, we have added several icons to our format.

  • Page 6: Hardware Specifications/Features

    •Intel LANDesk Client Manager software (with LM79 installed) •Chassis intrusion detection capable Expansion Slots •One 32-bit AGP slot •Five 32-bit PCI BUS Master slots •Two 16-bit ISA slots •One shared, seven usable slots http://www.tyan.com...
  • Page 7 •Support for two floppy drives (up to 2.88MB) •Two serial ports (16550 UARTs) •One ECP/EPP parallel port •One IR (InfraRed) I/O interface port •Two USB rev 1.2 (universal serial bus) connectors •One PS/2 mouse connector •One PS/2 keyboard connector http://www.tyan.com...

  • Page 8: Software Specifications

    Hence, they should be of the most assistance. Further, if you purchased your system from a dealer near to you, you can actually bring your system in to them to have it serviced, instead of attempting to do so yourself (which can have expensive consequences). Help resources: http://www.tyan.com...

  • Page 9: Returning Merchandise For Service

    1. See FAQ and beep codes sections of this manual. 2. See Tyan web site for FAQ, bulletins, driver updates, etc. http://www.tyan.com 3. Contact your dealer or distributor for help BEFORE calling Tyan. 4. Check the Tyan user group: alt.comp.periphs.mainboard.tyan 5.

  • Page 10: Board Installation

    (1846SLA only) Installation You are now ready to install your motherboard. The mounting hole pattern of the S1846 matches the ATX system board specifications. Your chassis should be that of a standard ATX mainboard form factor. http://www.tyan.com...
  • Page 11 Install the motherboard into your case. Follow the instructions provided by the case manufacturer for proper installation guidelines. TYAN recommends that you use only one screw to hold down the motherboard. The rest of the mounting holes should be used for the plastic standoffs. If your case does not have a hole for a standoff, simply cut off the bottom of the plastic standoff so that the flat portion rests on the metal.
  • Page 12 Note: Tyan recommends using an ATX power supply that conforms to industry standard revision 2.01.
  • Page 13 Pin 1 drive. In most cases, this is the proper way of connecting your IDE cable to the hard drive. Figure 4 shows the IDE cable properly con- nected to the motherboard. Figure 4 http://www.tyan.com...
  • Page 14 In most cases, there will be a key pin on the cable which will force you to connect the cable properly. http://www.tyan.com...
  • Page 15 “hot plugging,” and may damage your system. Figure 6 at the top of the next page shows the ATX double row connec- tors on this board. The Com and Printer ports, as well as the other ports, are labeled. http://www.tyan.com...
  • Page 16 Chapter 2 Board Installation Figure 6 Note: Only TYAN cables will work on this motherboard. If you are using an existing case with old cables, your system may not function properly. Use only TYAN-approved cables. Connecting the USB and PS/2 ports.
  • Page 17 When plugging the card in, especially when installing long cards, try to push the entire card in at one time. Don’t force one end of the card into the socket first and then the other. This will create a http://www.tyan.com...
  • Page 18 Because of this, your memory may not work correctly in a TYAN board though it may work well in a competitor’s board. This is because many of our competitors do not adhere to the strict tolerances required for high performance.
  • Page 19 To lock the DIMM into place, push the plastic clips on either end of the slot onto the notches in the ends of the DIMM (see Figure 10 on the next page). To remove your DIMM, simply pull the clips back, and pull up on the module. http://www.tyan.com...
  • Page 20 (or boxed) processor and the passive processor (see Figures 11 and 12 on the next page). These two types of processors are essentially the same in design; the only difference lies in their cooling methods. The active processor is equipped with a cooling fan and heat sink, while the http://www.tyan.com...
  • Page 21 Pentium II slot so that the retention module sits flat against the motherboard. Tighten the screws in a clockwise manner to secure the module to the board. Warning: Do not overtighten the screws as you may damage the module and/or the motherboard. http://www.tyan.com...
  • Page 22 There will be a plastic clip assembly similar to that of the ATX power connector that will force you to connect the fan cable correctly (see Figure 16 below). Figure 15 Figure 16 http://www.tyan.com...
  • Page 23 A clicking sound will be heard when the lock is securely fastened to the heat sink mounting bracket. To remove the lock from the http://www.tyan.com...
  • Page 24 If you do encounter problems, your dealer will be able to help you, or you can consult one of our many technical support resources (see page 8). http://www.tyan.com...

  • Page 25: Setting Jumpers

    The metal rod inside the plastic shell bridges the gap between the two pins, completing the circuit. See the drawings below for examples of “on” and “off” pins and jumpers. 3 (or more) pin jumpers 2 pin jumpers open http://www.tyan.com...

  • Page 26: Onboard Resource Settings

    The tables on the following pages will help you set the jumpers for CPU speed, wake on events, and external connector pin assignments among other things. The miniature motherboard maps will help you locate the jumpers on your board. A full-page map of the motherboard can be found on the facing page. http://www.tyan.com...

  • Page 27: Map Of Motherboard Jumpers

    Intel 82371EB PCI slot 4 EXTSMI PCI slot 5 Flash BIOS ISA slot 2 National LM79 ISA slot 1 The tiny “1”s next to jumpers of 3 pins or more indicate the position of pin 1 for that jumper. http://www.tyan.com...
  • Page 28 Chapter 3 Onboard Resource Settings Intel 443BX 3 DIMM slots LM75 SEC slot (Slot One type) LM79 2 ISA slots http://www.tyan.com...
  • Page 29 CPU and memory. You must have a 100MHz processor to run at a bus speed of 100MHz. Tyan does not recommend and is not respon- sible for functionality or damage to components caused by operating a CPU, memory or any bus at higher than rated speeds (overclocking).

  • Page 30: Hardware Cmos & Password Reset

    3. Wait for 2 seconds, then return jumper JP2 to pins 1 and 2. 4. Power on the system again. By following this procedure, you will erase your password and reset the CMOS to the BIOS defaults. InfraRed/Floppy Drive Settings ) t l JP7, JP8 J8 External Pin Assignments c t i http://www.tyan.com...

  • Page 31: Soft Power Connector

    Speaker Connector Installation The Tsunami provides a 4-pin header to connect the speaker. The speaker is connected to pins 24-27 of jumper block J8. A jumper on pins 26-27 is the default setting for the onboard speaker. http://www.tyan.com...

  • Page 32: Hardware Reset Switch Connector Installation

    Ensoniq 1371 PCI sound chip, and the digital signal is turned J13, J11 into an audio signal which goes out through the speaker. The TDA connector (J10) is for modem audio; the MPEG connector (J9) is for http://www.tyan.com...

  • Page 33: Cmos Rtc

    This is a software problem, not a hardware problem, and can be easily remedied by either upgrading to Windows 98 or downloading the 82371EB patch found at http://www.tyan.com/html/drivers.html or at ftp:// download.intel.com/design/pcisets/busmastr/setupex.exe. Note that USB requires Windows 95 OSR 2.1 or above; please contact Microsoft for the USB update.

  • Page 34: Ram Installation

    Some details of memory installation: One unbuffered DIMM must be installed for the system to POST. The mainboard supports 8MB, 16MB, 32MB, 64MB, 128MB, and 256MB SDRAM DIMM modules. The table on the following page shows some of the possible memory configurations. http://www.tyan.com...

  • Page 35: Cache Memory

    Penitum II processors have the L2 (Level 2) cache built into their architecture, so there is no need for an L2 cache on the motherboard. The Pentium II processor has a phsyical L2 cache size of 512KB and a cacheable memory area of 512MB. http://www.tyan.com...

  • Page 36: Frequently Asked Questions

    Q: Can I use EDO DIMMs on this motherboard? A: No. The Intel 440BX AGPset does not support EDO memory. The 440BX AGPset supports bus speeds of 100MHz, and EDO memory does not. You must use SDRAM (which does support 100MHz bus speeds) on this board. http://www.tyan.com...
  • Page 37 Q: Does my operating system support AGP? A: Currently, only Windows 98 and Windows NT 5.0 will have built-in support for AGP. Some AGP cards require Windows 95 OSR2.1 or a special driver from Intel. Please check with your graphics vendor for more details. http://www.tyan.com...

  • Page 38: Bios Configuration

    Chapter 4 BIOS Configuration BIOS Configuration The AMIBIOS Setup screen is shown below. http://www.tyan.com...
  • Page 39 If you are confused, press <Alt> and <H> at the same time to bring up the help menu. You should not have any trouble, though: the AMIBIOS Setup program is easy to use, and fairly intuitive. Note that the graphics in the manual are simpler than those that appear on your screen. http://www.tyan.com...

  • Page 40: Standard Setup

    (see Entering Drive Parameters on the next page). Consult the table at the top of the next page to see how to configure various drive types yourself. (If Type is set to Auto, then LBA/Large Mode, Block Mode, and PIO Mode will be autodetected.) http://www.tyan.com...
  • Page 41 32bit Mode: If On, allows for the transmission of 32 bits in parallel (i.e. at the same time). If Off, only 16 bits will be transmitted in paral- lel. http://www.tyan.com...
  • Page 42 . ) r http://www.tyan.com...
  • Page 43 The settings are 360KB 5¼ inch, 1.2 MB 5¼ inch, 720KB 3½ inch, 1.44MB 3½ inch, or 2.88MB 3½ inch. If you are not sure what type of floppy drive you have, consult the documentation that came with your drive. http://www.tyan.com...

  • Page 44: Advanced Setup

    Use them if the system is behaving erratically. They should always work but do not provide optimal system performance characteristics. Fail-Safe Default Optimal Default Quick Boot Disabled Disabled Pri Master ARMD Emulated as Auto Auto Pri Slave ARMD Emulated as Auto Auto http://www.tyan.com...

  • Page 45: Quick Boot

    . n i < > l t f i t i a v i r g i f v i r e t f o l l v i r . n i , t o < > l http://www.tyan.com...
  • Page 46 1st Boot Device, 2nd Boot Device, and 3rd Boot Device options. The settings are Yes or No. Floppy Access Control This option specifies the read-write access that is set when booting http://www.tyan.com...
  • Page 47 Advanced Setup chapter for instructions on changing a password. Boot To OS/2 Set this option to Yes if you are running an OS/2 operating system and using more than 64 MB of system memory on the motherboard. The http://www.tyan.com...

  • Page 48: Internal Cache

    C000,16K Shadow and C400,16K Shadow These options specify how the 32 KB of video ROM at C0000h is treated. The settings are: i t t a s i r e t o i t t t i r . y r http://www.tyan.com...
  • Page 49 The ROM area not used by ISA adapter cards is allocated to PCI adapter cards. The settings are: i t t a s i - l i t l u i t t r e t o i t t t i r . y r http://www.tyan.com...

  • Page 50: Chipset Setup

    Disabled Disabled PIIX4 SERR# Disabled Disabled USB Passive Release Enabled Enabled PIIX4 Passive Release Enabled Enabled PIIX4 Delayed Transaction Disabled Disabled TypeF DMA Buffer Control1 Disabled Disabled TypeF DMA Buffer Control2 Disabled Disabled DMA-0 Type Normal ISA Normal ISA http://www.tyan.com...
  • Page 51 Set this option to Enabled to enable the PERR# signal on the bus. The settings are Enabled or Disabled. WSC# Handshake Set this option to Enabled to enable handshaking for the WSC# signal. Handshaking is a form of encryption; see the Glossary for more http://www.tyan.com...
  • Page 52 Set this option to Enabled to enable access between two different PCI buses (PCI1 and PCI0). The settings are Enabled or Disabled. Method of Memory Detection This option determines how your system will detect the type of system memory you have installed. Options are Auto+SPD or Auto only. http://www.tyan.com...

  • Page 53: Dram Integrity Mode

    The settings are Auto, 2 SCLKs or 3 SCLKs. SDRAM RAS# Precharge (CHANGE) This option specifies the length of the RAS precharge part of the DRAM system memory access cycle when SDRAM system memory is installed in this computer. The settings are Auto, 2 SCLKs, http://www.tyan.com...
  • Page 54 This option sets the AGP low priority timer. The settings are in units of AGP Clocks. The settings are Disabled, 32, 64, 96, 128, 160, 192, or 224. AGP SERR Set this option to Enabled to enable the AGP SERR# signal. The settings are Enabled or Disabled. http://www.tyan.com...
  • Page 55 PIIX4 chip. This option must be Enabled to provide PCI 2.1 compli- ance. The settings are Enabled or Disabled. TypeF DMA Buffer Control1 and 2 These options specify the DMA channel where TypeF buffer control is implemented. The settings are Disabled, Channel-0, Channel-1, Chan- nel-2, Channel-3, Channel-5, Channel-6, or Channel-7. http://www.tyan.com...

  • Page 56: Power Management Setup

    Monitor Device 5 (Floppy disk) Monitor Monitor Device 0 (Primary master IDE) Monitor Monitor Device 1 (Primary slave IDE) Monitor Monitor Device 2 (Secondary master IDE) Monitor Monitor Device 3 (Secondary slave IDE) Monitor Monitor LAN Wake-up Disabled Disabled http://www.tyan.com...
  • Page 57 Video Power Down Mode This option specifies the power state that the video subsystem enters when AMIBIOS places it in a power saving state after the specified period of display inactivity has expired. The settings are Stand By, Suspend, or Disabled. http://www.tyan.com...
  • Page 58 Suspend Time Out This option defines the length of time that the system, while in Standby mode, must be inactive before it enters Suspend mode.The settings are Disabled and from 4 minutes to to 508 minutes, in increments of 4 minutes. http://www.tyan.com...
  • Page 59 This option enables the PC98 Power LED feature. The settings are Disabled or Enabled. Fan OFF at Suspend This option controls the CPU/Chassis Fan on/off setting while the system is in suspended mode. The settings are Disabled or Enabled. http://www.tyan.com...

  • Page 60: Pnp/Pci Setup

    **Reserved Memory Address C8000 C8000 PCI Device Search Order First-Last First-Last BIOS Devnode for Shadow RAM Disable Disabled ** Setting is not Selectable Plug and Play Aware O/S Set this option to Yes to inform AMIBIOS that the operating system http://www.tyan.com...

  • Page 61: Allocate Irq To Pci Vga

    This option specifies whether or not an offboard PCI IDE controller adapter card is used in the computer, and where it is installed. If an offboard PCI IDE controller is used, the motherboard onboard IDE controller is automatically disabled. The settings are Auto and Slot1 http://www.tyan.com...
  • Page 62 Onboard I/O is configured by AMIBIOS. All IRQs used by onboard I/O are configured as PCI/PnP. IRQ12 only appears if the Mouse Support option in Advanced Setup is set to Disabled. IRQ14 and 15 will not be available if the onboard PCI IDE is enabled. If all IRQs http://www.tyan.com...
  • Page 63 The settings are First-Last or Last-First. BIOS Devnode for Shadow RAM This option is used for some add-on card ROMs which do not claim the correct memory range that they occupy. The settings are Disabled or Enabled. http://www.tyan.com...

  • Page 64: Peripheral Setup

    This option specifies the base I/O port address of serial port 1. The settings are Auto, Disabled, 3F8h, 2F8h, 3E8h, or 2E8h. Onboard Serial Port2 This option specifies the base I/O port address of serial port 2. The settings are Auto, Disabled, 3F8h, 2F8h, 3E8h, or 2E8h. http://www.tyan.com...

  • Page 65: Serial Port2 Mode

    This option will not appear if the Serial Port2 Mode option is set to Normal. The only setting is IRRX1. OnBoard Parallel Port This option specifies the base I/O port address of the parallel port on the motherboard. The settings are Auto, Disabled, 378, or 278. http://www.tyan.com...

  • Page 66: Parallel Port Mode

    278, or 3BC. This option sets the DMA channel used by the parallel port. The settings are 0 through 7 in increments of one. Onboard IDE This option specifies the IDE channel used by the onboard IDE control ler. The settings are Disabled, Primary, Secondary, or Both. http://www.tyan.com...

  • Page 67: Supervisor And User Security

    When you select the Supervisor Security option, a dialog box (shown below) will appear, allowing you to enter a password. You may either type the password in, or click on the onscreen buttons. Your password must be between one and six characters long. http://www.tyan.com...

  • Page 68: Anti-Virus Security

    If a warning appears, you should run an anti-virus program to locate the problem. This feature protects only the boot sector, not the entire drive. Note that some disk diagnostic programs will trigger a virus warning message. http://www.tyan.com...

  • Page 69: Detect Ide Utility

    EEPROM chip on the mainboard which can be erased and reprogrammed by following the directions below. 1. From the DOS prompt, rename the BIOS file that you have down- loaded to “amiboot.rom” and copy it on to a floppy disk. http://www.tyan.com...
  • Page 70 5. If the system does not reboot in three minutes, power down the system, wait a few seconds, and then turn the power back on again. You will be prompted to press <F1> to run Setup. You may check your settings at this time, or simply save and exit the program. http://www.tyan.com...
  • Page 71 This page has been intentionally left blank. http://www.tyan.com...

  • Page 72: System Resources

    (checkpoint codes) to I/O port 0080h. If the computer cannot complete the boot process, diagnostic equipment can be attached to the computer to read I/O port 0080h. The following AMIBIOS POST checkpoint codes are valid for all AMIBIOS products with a core BIOS date of 7/15/95 (Enhanced). http://www.tyan.com...
  • Page 73 < > l < > e l l i t n i i s s r t n a f r . t x l l i . t x i s s r t n . t x http://www.tyan.com...
  • Page 74 . l u r a t n i t Uncompressed Initialization Codes The following routine checkpoint codes are listed in order of execution. These codes are uncompressed in F000h shadow RAM. The table begins on the next page. http://www.tyan.com...
  • Page 75 SYSTEM...
  • Page 76 . t x i r e e i f t f o n i r t f o s i h t i s o i t . t x http://www.tyan.com...
  • Page 77 . t x t t i r i n i a i t z i l i t a . t x http://www.tyan.com...
  • Page 78 . t x i n I a i t z i l i t a e t f . e t . t x . t x http://www.tyan.com...
  • Page 79 , t u l a r . t n i n i a i t z i l i t a i n I a i t i z i l r h t http://www.tyan.com...

  • Page 80: Beep Codes

    Displayed error messages, in most cases, allow the system to continue to boot. Displayed error messages are described on pages 82-83. See the top of the next page for the beep code chart. http://www.tyan.com...

  • Page 81: Troubleshooting System Problems

    BIOS ROM chip is bad. The system probably needs a new BIOS ROM chip. 11 times... reseat the cache memory on the motherboard. If it still beeps, replace the cache memory. 4, 5, 7, or 10 times... the motherboard must be replaced. http://www.tyan.com...

  • Page 82: Displayed Error Messages

    . y r e t t e t t . y r f i d r e f u l i o i t e z i f i d r e f i l i t . y t http://www.tyan.com...
  • Page 83 . t o : s i y t i y t i . y r : s i y t i y t i . s s y t i http://www.tyan.com...

  • Page 84: Glossary

    BIOS (Basic Input/Output System) program resides in the ROM chip, and provides the basic instructions for controlling your computer’s hardware. Both the operating system and application software use BIOS routines to http://www.tyan.com...
  • Page 85 On or Closed, and inactive when they are Off or Open. CMOS Complementary Metal-Oxide Semiconductors are chips that hold the basic start-up information for the BIOS. COM port is another name for the serial port, which is so-called http://www.tyan.com...
  • Page 86 BIOS, is a ROM chip which can, unlike normal ROM, be updated. This allows you to keep up with changes in the BIOS programs without having to buy a new chip. TYAN’s BIOS updates can be found at http://www.tyan.com/ html/drivers.html...
  • Page 87 PCB (personal computer board) or motherboard. The standard form factors are the AT and ATX, although TYAN also makes some Baby-AT boards. Global timer is an onboard hardware timer, such as the Real Time Clock.
  • Page 88 It is used as a secondary cache because SRAM is slower than SDRAM, but usually larger. Data is cached first to the faster primary cache, and then, when the primary cache is full, to the slower secondary cache. http://www.tyan.com...
  • Page 89 (that is, the data is transmitted in serial form, one bit after another). SIMM Single In-line Memory Modules are the most common form of http://www.tyan.com...
  • Page 90 Zero Insertion Force sockets make it possible to insert CPUs without damaging the sensitive pins. The CPU is lightly placed in an open ZIF socket, and the metal lever pulled down. This shifts the processor over and down, guiding it into place on the board. http://www.tyan.com...
  • Page 91 Replace only with the same or equivalent type recommended by manufacturer. Dispose of used batteries according to manufacturer instructions. Note: The joystick port maximum output rating is 9 amperes at 5 volts. Document # D1307-120 http://www.tyan.com...
