7 - Various modes

7.1 - Automatic or music-sensitive mode
1 - Select MASt in the SLMd menu, the MASTER LED will light up.
2 - Use the ShMd menu to select a program or the sequence including all programs.
3 - Use the SoUn menu to activate the music-sensitive mode, the SOUND LED will flash with each pulse.
4 - Your device will use the internal programmation if the music-sensitive mode is deactivated.
7.2 - Master / Slave mode
1 - Use the DMX connectors (via XLR) to connect the units together.
2 - Configure the first unit (Master) as described above.
3 - Choose SL 1 or SL 2 via the MASt menu for slave units. Units set on SL 1 will mimic exactly the Master device
while SL 2 units will be synchronised in reverse mode.
The SLAVE LED of slave units will be lit as long as a DMX cable is connected to their DMX input.

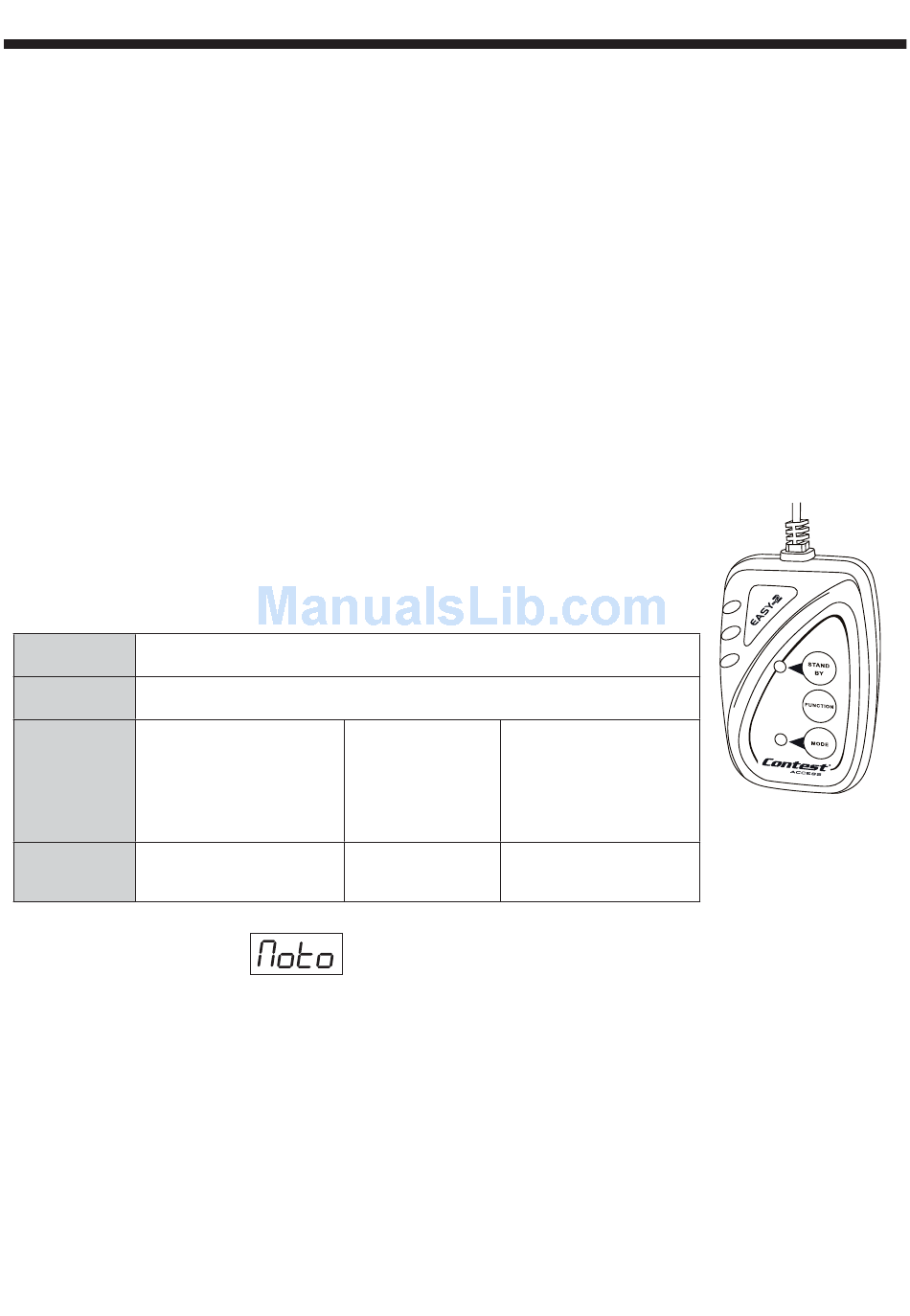

7.3 - Optional EASY-2 remote control
The EASY-2 remote control is straightforward and easy to install. It is able to control
several synchronised units with the Master/Slave mode.
Plug your remote control into the Master projector Jack 6.35 chassis called «Only
for EASY-2», and daisy-chain the additional units via the XLR plugs, as you would
for a regular DMX cabling. This remote control gives you access to the following
functions: black-out, strobe, and show selection.
Buttons
STAND - BY Activates or deactivates the Black-out mode
For each pressure and
when holding down the
button:
FUNCTION
1: Synchronous strobe
2: Asynchronous strobe
3: Music-sensitive strobe
Strobe / Music-sensitive
MODE
(LED OFF)
Note: the display will indicate:
7.4 - DMX modes and addressing
Regardless of its current mode (Master or Slave), your LED-BLASTER will react to any incoming signal detected via
its DMX input.
To configure its DMX address, please go to the Addr menu, press ENTER and use the UP and DOWN buttons to set
a DMX address.
Validate your choice by pressing the MENU button.
Effects
Motors speed:
Programs 1 to 8 1: Slow
selection 2: Average
3: Fast
Program (LED ON) Flashing LED
when the motors rotation has been activated.
