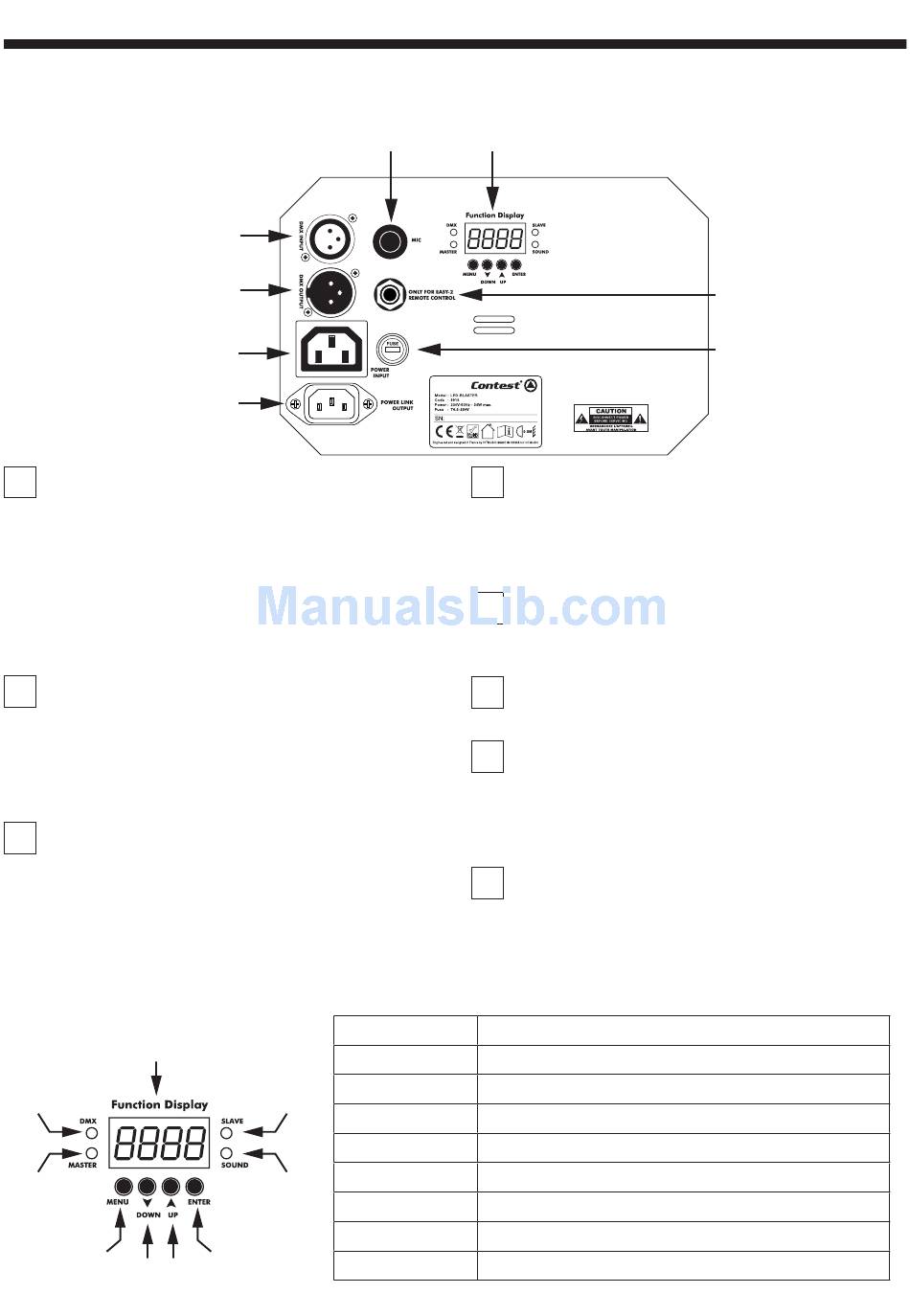

6 - Description
6.1 - Rear panel
1
DMX Input
3-pin female XLR socket hardwired as follows:
- Ground: 1
- Negative signal: 2
- Positive signal: 3
Use this socket to transmit the incoming DMX
signal from a DMX controller or another unit to your
projector.
2
DMX Output
3-pin female XLR socket hardwired identically to the
output described above.
This socket can be used to daisy-chain more units
into your DMX circuit.
3
EASY-2 Input
Connect here the EASY-2 remote control (optional).
Please refer to paragraph 6.3 for more details.
6.2 - Control panel
1
2
3
6
7 8
Page 6
LED-BLASTER - 2 x 10W RGBW LEDs multi-beam animation effects
6
1
2
5
4
1 - Display
2 - DMX LED
3 - Master LED
4
4 - Slave LED
5 - Sound LED
5
6 - Menu Button
7 - Down Button
8 - Up Button
9
9 - Enter Button
7
4
Power
input
Allows you to power up your projector.
Please make sure the voltage delivered by the
electrical outlet is compatible with your
LED-BLASTER.
5
Power output
Allows you to daisy-chain more units in order to
optimise wiring of complex installations.
6
Microphone
Allows music-sensitive programs.
7
Menu
Allows you to adjust the behaviour of your device or
set its DMX address.
Please refer to next paragraph for more details about
this.
8
Fuse
If need to replace the fuse, please make sure the
new one has the exact same characteristics.
Indicates the status of your device
Lights up upon detection of a DMX signal
Lights up upon activation of Master mode
Lights up upon activation of Slave mode
Flashes when your device is in music-sensitive mode
Allows you to acces the menu
Allows you to select functions and modify their values
Allows you to select functions and modify their values
Allows you to save changes
3
8
