Summary of Contents for Contest LED-Blaster

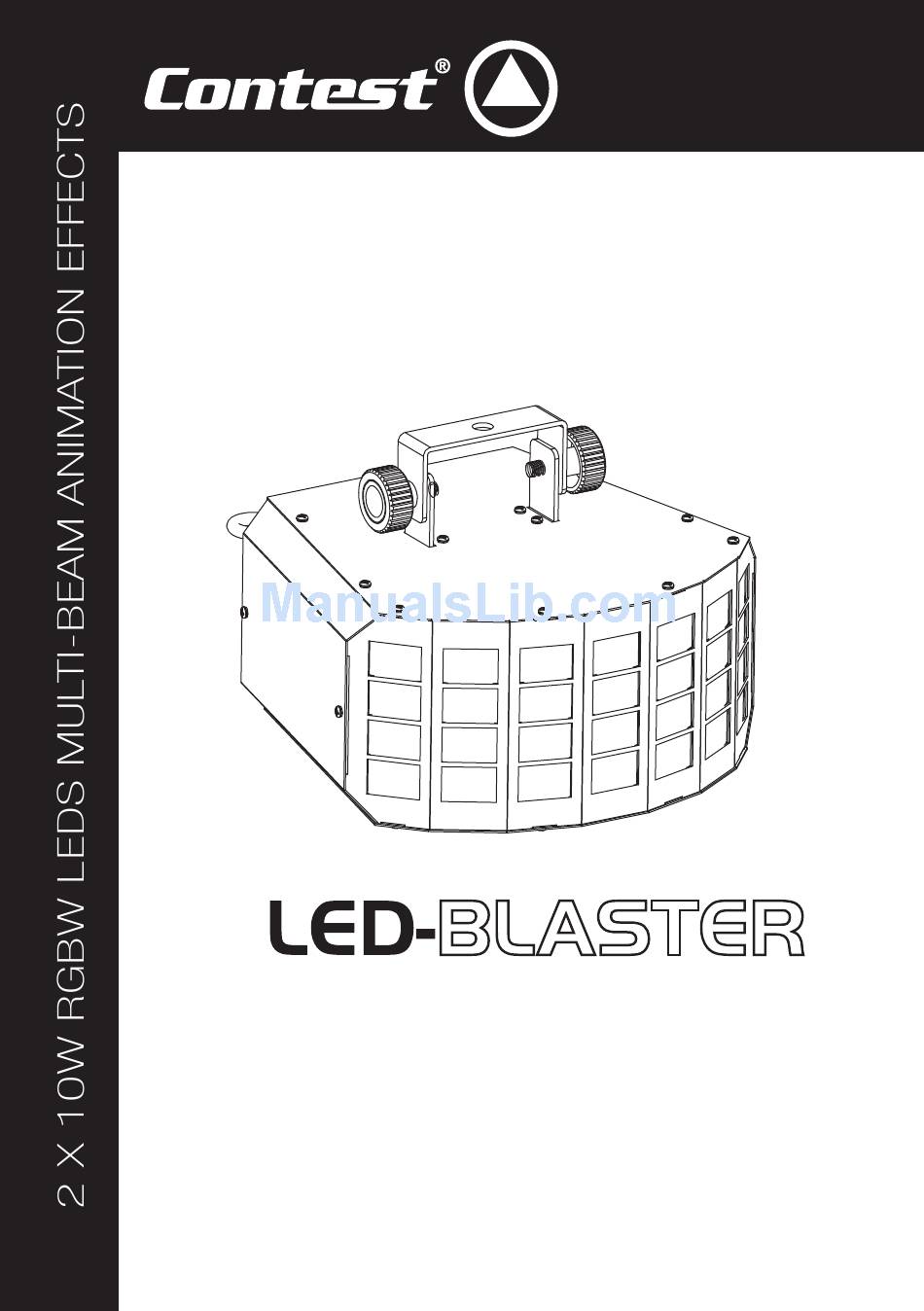

- Page 1 USER GUIDE 9915 - July 2014 - Version 2.0 From serial number 78240001...
-
Page 2: Safety Information
LED-BLASTER - 2 x 10W RGBW LEDs multi-beam animation effects English 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. - Page 3 LED-BLASTER - 2 x 10W RGBW LEDs multi-beam animation effects English Instructions and recommendations 1 - Please read carefully : 12 - Cleaning precautions : We strongly recommend to read carefully and understand Unplug the product before attempting any cleaning the safety instructions before attempting to operate this unit.
-
Page 4: Specifications
LED-BLASTER - 2 x 10W RGBW LEDs multi-beam animation effects English 2 - Introduction Thank you for purchasing the LED-BLASTER. Its incredible brightness and very wide projection angle allows you to flood the room with colourful multibeam effects. Automatic or music-sensitive, it also allows you to control in DMX or with the optional EASY-2 remote control. -
Page 5: Installation
4 - Installation The LED-BLASTER was designed to be attached to structures or on the ground, via an adapted support. We strongly recommend to use a double hanging system with safety cable in case of failure of the main suspension bracket. -
Page 6: Power Input
LED-BLASTER - 2 x 10W RGBW LEDs multi-beam animation effects English 6 - Description 6.1 - Rear panel Power DMX Input input 3-pin female XLR socket hardwired as follows: Allows you to power up your projector. - Ground: 1 Please make sure the voltage delivered by the... - Page 7 Addr (Address): Allows you to set the DMX address of your device, from 1 to 512. ChMd (Channel mode): Allows you to determine the number of DMX channels used by your LED-BLASTER: 1 or 3 channels. Please refer to paragraph 7.5 for more details about DMX values of these modes.
- Page 8 LED-BLASTER - 2 x 10W RGBW LEDs multi-beam animation effects English 6.3 - Menu description (continuation) tESt: Allows to perform a test procedure to verify each function. FhrS (Fixture hours): Displays the total operating hours of your device since its first initialisation.
-
Page 9: Various Modes
7.4 - DMX modes and addressing Regardless of its current mode (Master or Slave), your LED-BLASTER will react to any incoming signal detected via its DMX input. To configure its DMX address, please go to the Addr menu, press ENTER and use the UP and DOWN buttons to set a DMX address. - Page 10 LED-BLASTER - 2 x 10W RGBW LEDs multi-beam animation effects English 7.5 - DMX values and functions Your LED-BLASTER features two different DMX modes. The mode selection can be made via the ChMd menu: - 1CH: Your LED-BLASTER is in 1-channel mode.
- Page 11 LED-BLASTER - 2 x 10W RGBW LEDs multi-beam animation effects English 8 - Notes Page 11...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
