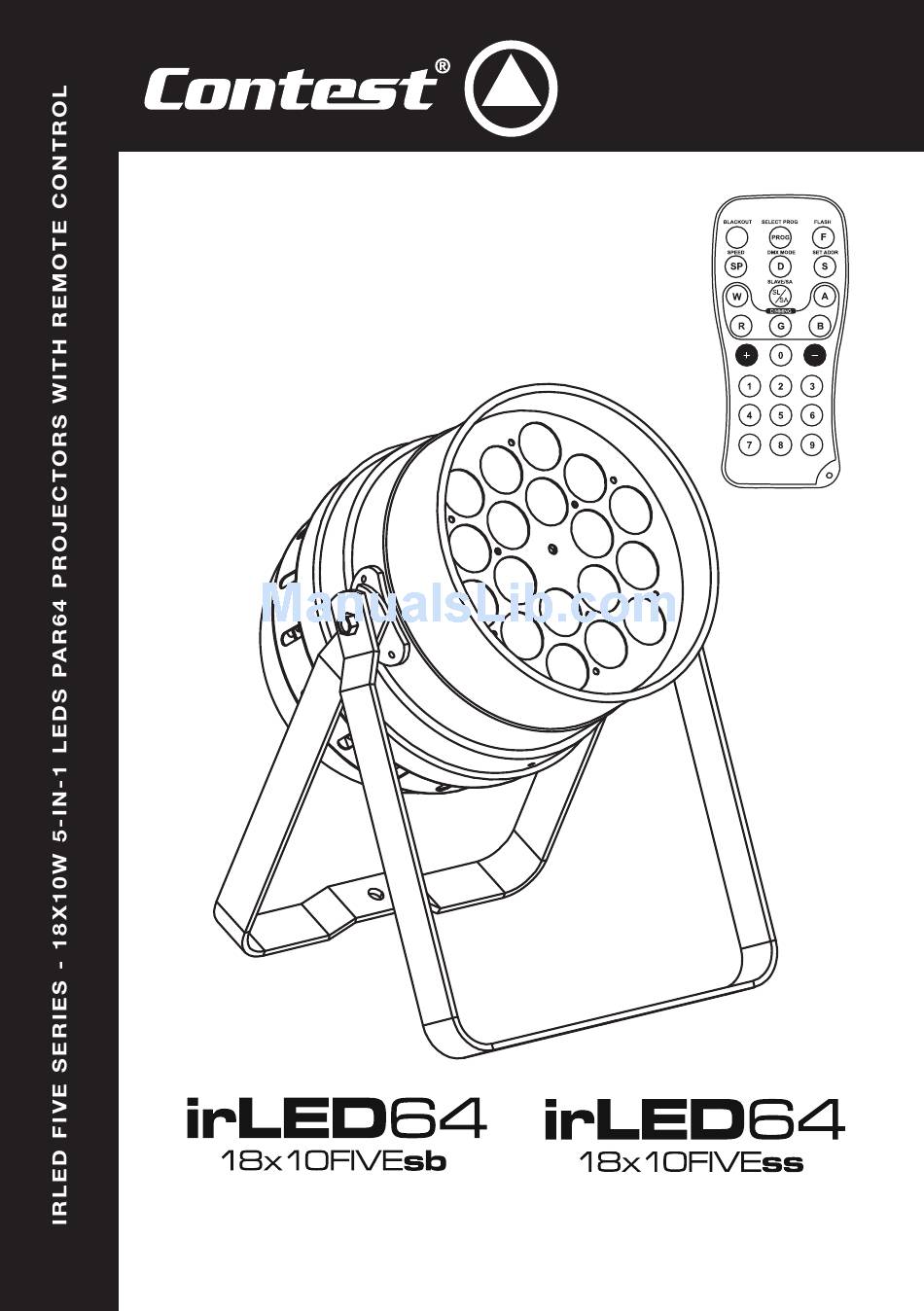

- Page 1 USER GUIDE 10072/10073 - December 2013 Version 2.0...
-
Page 2: Important Safety Information
Any maintenance procedure must be performed by a CONTEST In order to avoid any electrical malfunction, please do not use any authorised technical service. Basic cleaning operations must tho- roughly follow our safety instructions. - Page 3 irLEDs FIVE series - 18x10W 5-in-1 LEDS PAR64 projectors with remote control English 2 - Introduction These projectors are equipped with 18 super-powerful 5-in-1 LEDs with high-performance individual lenses. In addition to primary colours (such as blue, red, green...) the white shades and Amber create warm and brightful colours. The irLED64- 18x10FIVE are supplied with an infrared remote control to access colour control, built-in programs, DMX settings and a lot more.
- Page 4 irLEDs FIVE series - 18x10W 5-in-1 LEDS PAR64 projectors with remote control English 4 - Description MODE SETUP DOWN DMX IN DMX OUT POWER IN 240V/50Hz POWER OUT 240V/50Hz Power input/output socket Display Allows you to connect the projector to an electrical outlet and This intuitive display allows you to configure your projector.
-
Page 5: Menus And Functions
irLEDs FIVE series - 18x10W 5-in-1 LEDS PAR64 projectors with remote control English 5 - Menus and functions Access the internal menu by pressing MODE. To access a submenu, press MODE again. Press SETUP to configure the selected function. Simultaneously press MODE and UP if you want the display to stay lit all the time. If you want the display to lit off when the menu remains inactive for more than 20 seconds, press simultaneously MODE and DOWN.. - Page 6 irLEDs FIVE series - 18x10W 5-in-1 LEDS PAR64 projectors with remote control English Allows you to set the duration of the user program Configures the fade out time of every step of the program Allows you to set the flash rate of every step of the program User program Allows you to configure the strobe speed of every step of the program...
- Page 7 irLEDs FIVE series - 18x10W 5-in-1 LEDS PAR64 projectors with remote control English 6 - The various DMX modes 6.1 - 5-channel mode = RGBWA = DMX values Effects CHANNEL 1 000 - 255 Red from 0 - 100% CHANNEL 2 000 - 255 Green from 0 - 100% CHANNEL 3...
- Page 8 irLEDs FIVE series - 18x10W 5-in-1 LEDS PAR64 projectors with remote control English 6.3 - 2-channel mode : Fixed colours/Macros/Dimmer/Speed = CHANNEL 1 CHANNEL 2 DMX values Effects DMX values Effects 000 - 005 006 - 010 011 - 015 Orange 016 - 020 Yellow...
- Page 9 irLEDs FIVE series - 18x10W 5-in-1 LEDS PAR64 projectors with remote control English 6.4 - 8-channel mode = RGBWA dimmers/Fixed colours/Macros/Dimmer/Speed, Sound/Strobe = CHANNEL CHAN. CHANNEL CHAN. CHAN. CHAN. CHAN. CHAN. if channel 8 if channel 8 Amber White Blue Green 000 - 005 strobe...
- Page 10 irLEDs FIVE series - 18x10W 5-in-1 LEDS PAR64 projectors with remote control English 6.5 - 4-channel mode = RGB (compatible with pure RGB) = Values Effects CHANNEL 1 000 - 255 Red from 0 - 100% CHANNEL 2 000 - 255 Green from 0 - 100% CHANNEL 3 000 - 255...
-
Page 11: Infrared Remote Control
irLEDs FIVE series - 18x10W 5-in-1 LEDS PAR64 projectors with remote control English 7 - Infrared remote control The infrared remote control supplied with the projectors allows you to remotely access all the functions of the projectors. The infrared sensor is located on the front of the projector. Notes : The remote control can also be used when the projector is in DMX mode. - Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com ®...
