USER GUIDE
10406 - Version 1 / 11-2015

Advertisement

loading
Need help?

Need help?

Do you have a question about the FLAG25i and is the answer not in the manual?

Questions and answers

Related Manuals for Contest FLAG25i

Summary of Contents for Contest FLAG25i

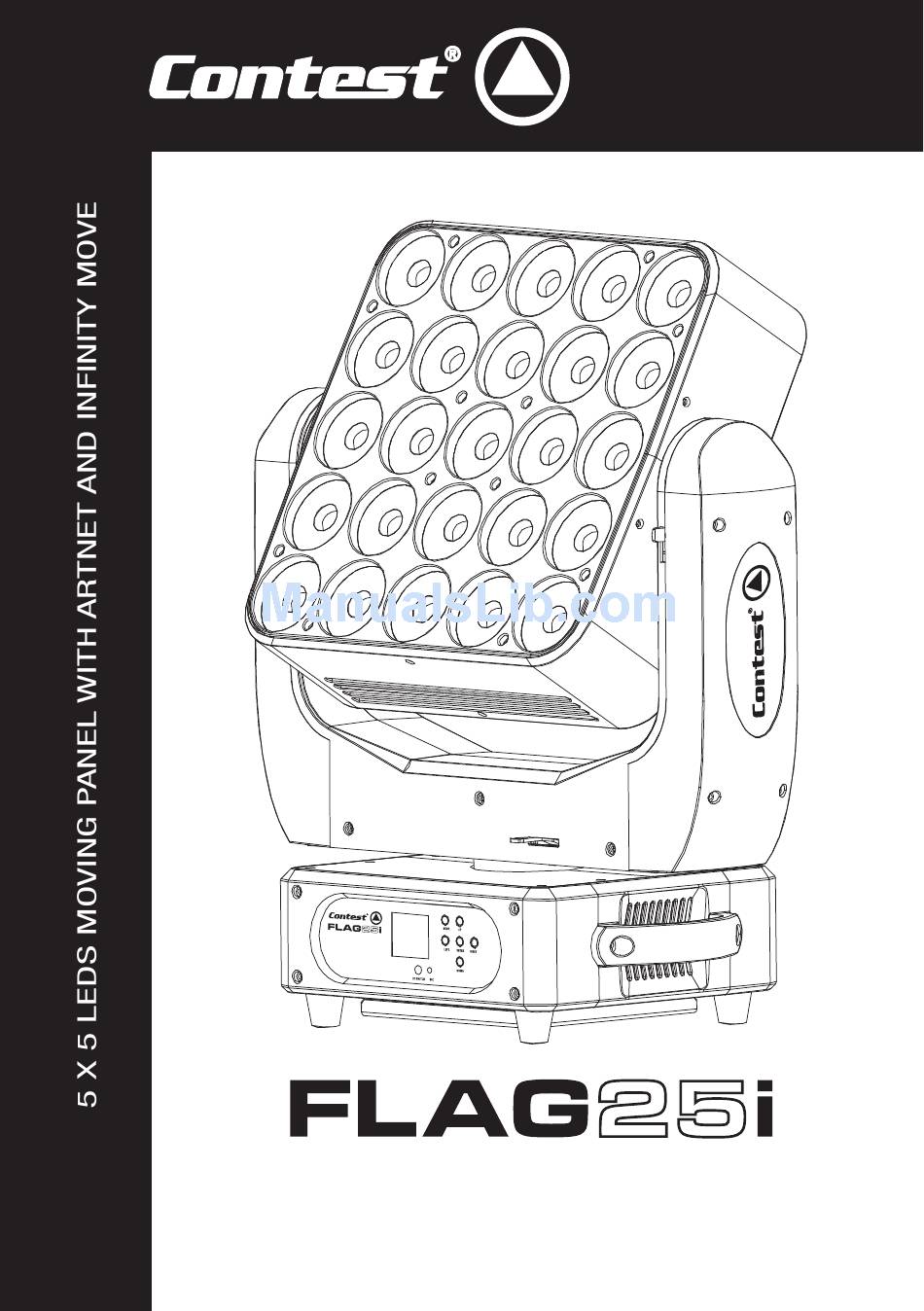

  • Page 1 USER GUIDE 10406 - Version 1 / 11-2015...

  • Page 2: Important Safety Information

    FLAG25i - 5 x 5 LEDs moving panel with artnet and infinity move English 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or extremely cold/hot locations. Failure to follow these safety instructions could result in fire, electric shock, injury, or damage to this product or other property.

  • Page 3: Technical Specifications

    FLAG25i - 5 x 5 LEDs moving panel with artnet and infinity move English 2 - Introduction Thank you for purchasing the FLAG25i moving head. You now have in your possession a high-quality, powerful and intelligent device absolutely perfect for parties, animations, live events... 3 - Technical specifications Light source •...
  • Page 4 FLAG25i - 5 x 5 LEDs moving panel with artnet and infinity move English 1 - LEDs 4 - Description 2 - Locking latches Allow you to lock the moving head movements while being transported. 3 - Display Allows you to visualise menus.
  • Page 5 FLAG25i - 5 x 5 LEDs moving panel with artnet and infinity move English 5 - Installing Quick-Lock fastening systems The FLAG25i moving head is supplied with two Quick-Lock fastening systems. The example above indicates how to install the Omega holders.
  • Page 6 The address of the first unit will be 1, the second unit will be 17 (1+16), the third unit will be 33 (17+16) and so on. NB : Once switched on, the FLAG25i automatically detects any incoming DMX signal and the display indicates the unit DMX address.
  • Page 7 FLAG25i - 5 x 5 LEDs moving panel with artnet and infinity move English 7 - Menus The FLAG25i features many menus allowing you to configure its every move and function. Press MODEto access the main menu. Use the navigation keys to browse through submenus. Then press ENTER to access a submenu.
  • Page 8 FLAG25i - 5 x 5 LEDs moving panel with artnet and infinity move English 7.2 INFORMATION This menu allows you to visualise the moving head running time, its temperature, and the current version of the internal software. Submenus Lower menus...
  • Page 9 FLAG25i - 5 x 5 LEDs moving panel with artnet and infinity move English Submenus Lower menus Values Description Determines the AUTO mode movement speed : Mov Speed Speed 1 ~ 4 1 = fastest ; 4 = slowest Configures the internal mic sensitivity when using the...
  • Page 10 FLAG25i - 5 x 5 LEDs moving panel with artnet and infinity move English 7.4 Reset This menu allows you to reset the motors step-by-step (e.g. if positioning errors are detected). Submenus Description Reset ALL Resets all motors. ResetPanTilt Resets PAN and TILT motors.
  • Page 11 This menu allows you to select the programs assigned to each of the 3 program groups, edit the 9 built-in programs and edit the 250 scenes forming these programs. The FLAG25i can be assigned to 3 different slave groups (via the Slave mode function in the Function menu). The designated Master unit sends programs containing slave groups information.
  • Page 12 FLAG25i - 5 x 5 LEDs moving panel with artnet and infinity move English More details about program groups sequencing and scenes they include: Example : Program 2 includes scenes 10, 11, 12 and 13 Program 4 includes scenes 8, 9 and 10...

  • Page 13: Dmx Channels

    FLAG25i - 5 x 5 LEDs moving panel with artnet and infinity move English 8 - Dmx channels and their functions The FLAG25i moving head includes 3 preset DMX modes : The Basic mode features 16 channels, the Standard mode features 21 channels and the Expert mode features 117 channels.
  • Page 14 FLAG25i - 5 x 5 LEDs moving panel with artnet and infinity move English ALL LEDs blue 000 - 255 000 : Black out - 255 : bleu 100% All LEDs white 000 - 255 000 : Black out - 255 : blanc 100%...
  • Page 15 FLAG25i - 5 x 5 LEDs moving panel with artnet and infinity move English Color Presets Dimmer 000 - 255 Intensity from 0 to 100% Preset patterns 000-010 No function 011-013 014-016 017-019 020-022 023-025 026-028 029-031 032-034 035-037 038-040...
  • Page 16 FLAG25i - 5 x 5 LEDs moving panel with artnet and infinity move English 161-163 Preset pattern 15 164-166 Preset pattern 16 167-169 Preset pattern 17 170-172 Preset pattern 18 173-175 Preset pattern 19 176-178 Preset pattern 20 179-181 Preset pattern 21...
  • Page 17 FLAG25i - 5 x 5 LEDs moving panel with artnet and infinity move English 181-185 Automatic program 13 with customized colours 186-190 Automatic program 14 with customized colours 191-195 Automatic program 15 with customized colours 196-200 Automatic program 16 with customized colours...
  • Page 18 FLAG25i - 5 x 5 LEDs moving panel with artnet and infinity move English 8.2 Different dimmer modes 100% t (ms) Rise time Fall time From 0 - 255 with a 0 second fading time From 0 - 255 with a 1 second fading time...

  • Page 19: Error Messages

    FLAG25i - 5 x 5 LEDs moving panel with artnet and infinity move English 10 - Error messages Once switched on the unit will launch an initialisation. The display will indicate «Error channel is XX» if a problem occurs with one or several channels.
  • Page 20 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com ® CONTEST...
