- Page 1 Professional Digital Two-Way Radio System VXD Series Installation Guide Vertex Standard LMR, Inc...
-
Page 3: Foreword
This manual is intended for use by experienced technicians familiar with similar types of equipment. Specifi- cally, it contains installation information required for the VXD Series Mobile Radios. For information related to the service of the VXD Series Mobile Radios, refer to the list applicable manuals available separately. -
Page 4: Table Of Contents
Table of Contents Table of Contents Foreword ..........................1 Product Safety and RF Exposure Compliance ..................1 Manual Revisions .............................1 Parts Ordering ............................1 Computer Software Copyrights ........................1 Document Copyrights..........................1 Disclaimer ..............................1 Trademarks ..............................1 Installation Requirements for Compliance with Radio Frequency (RF) Energy Exposure Safety Standards ..........4 Commercial Warranty ......................5 Limited Warranty ............................5 Chapter 1 Introduction ......................7... - Page 5 Table of Contents Table of Contents Chapter 3 Installation Details for Standard Configurations ..........21 Planning the Installation ....................... 21 3.1.1 Tools Required for Installation ................... 21 3.1.2 Installation Example......................21 3.1.3 Wiring Diagrams ........................22 Radio Mounting ..........................23 3.2.1 Dash Mount with Trunnion ....................24 3.2.2 Locking Kit (Optional) ......................
-
Page 6: Installation Requirements For Compliance With Radio Frequency (Rf) Energy Exposure Safety Standards
To ensure compliance to RF Energy Safety Standards: • Install only Vertex Standard approved antennas and accessories. • Be sure that antenna installation is per Antenna Installation on page 3-8 of this manual. -
Page 7: Commercial Warranty
Vertex Standard, at its option, will at no charge either repair the Product (with new or reconditioned parts), replace it (with a new or reconditioned Product), or refund the purchase price of the Product during the war- ranty period provided it is returned in accordance with the terms of this warranty. - Page 8 Note Note Page 6...
-
Page 9: Chapter 1 Introduction

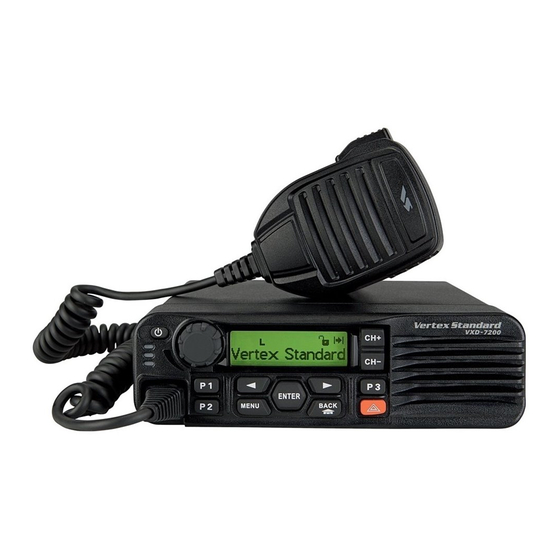

Chapter 1 Introduction Chapter 1 Introduction This manual covers the installation procedures for VXD Series Mobile Radios and accessories re- quired to complete the radio system. The radio system consists of a control head, radio, antenna, mi- crophone, speaker, cabling, and accessories. -
Page 10: Connections On The Back Of The Radio
Chapter 1 Introduction 1.1.3 Connections on the Back of the Radio Figure 1-3 shows the connections that are found on the back of the radio. For complete pin configuration of the rear accessory connector, see Figure 4-2, on page 4-2. Figure 1-3 Back View of the Mobile Radio Page 8... -
Page 11: Standard Configurations
Chapter 1 Introduction 1.2 Standard Configurations Currently the mobile radio can only be dash-mounted. 1.2.1 Dash Mount Configuration In the dash mount configuration of the mobile radio, the control head is mounted on the front of the transceiver housing. Electrical connection between the two takes place within the radio via a flexible cable between the connectors on the front of the transceiver and at the back of the control head. -
Page 12: Base/Control Stations
Chapter 1 Introduction 1.3 Base/Control Stations If the mobile radio equipment is installed at a fixed location and operated as a control station or as a fixed unit, the radio and antenna installation must comply with the following requirements in order to ensure optimal performance and compliance with the Product Safety and RF Energy Exposure chapter in the Operating Manual: For outdoor antenna installations, proper site grounding and lightning protection are vitally... -
Page 13: Chapter 2 Reducing Noise Interference
Chapter 2 Reducing Noise Interference Chapter 2 Reducing Noise Interference 2.1 Introduction Electrical noise generated by the electrical system of a vehicle, as well as local ambient noise, can interfere with normal operation of mobile radios. Satisfactory operation of a mobile radio may require slight or heavy noise reduction, depending upon the relative strength of the radio signal, and upon the ability of the radio to reject undesired noise. -
Page 14: Conducted Noise
Chapter 2 Reducing Noise Interference It is impractical to prevent all arcing in the standard vehicle electrical system. In an 8-cylinder engine running at 2,000 RPM, arcing occurs across the spark plugs at a rate of 8,000 sparks per minute or 133 sparks per second. -
Page 15: Operation Of A Conventional Ignition System
Chapter 2 Reducing Noise Interference 2.2 Operation of a Conventional Ignition System 2.2.1 Introduction To effectively reduce ignition interference in a vehicle, it is well to understand the operation of an auto- mobile ignition system. Ignition is necessary in a gasoline engine to ignite the gasoline vapor and the air mixture in its cyl- inders. -
Page 16: Detection Of Noise Sources
Chapter 2 Reducing Noise Interference When the breaker points open, primary current decreases and, by self-induction, an electromotive force is induced in the primary which is many times greater than the battery voltage. The high voltage inducted in the coil secondary causes a spark across the distributor rotor-to-spark plug wire gap and then across the spark plug gap for a short interval of time when the breaker points open. -
Page 17: Noise Reduction Techniques
Chapter 2 Reducing Noise Interference Radiated noise must be attacked after conducted and induced noise has been satisfactorily sup- pressed. The vehicle ignition system is usually the primary source of this interference. Antenna place- ment can be critical in some installations. Remember that static discharge generates static or radiated noise and will probably be generated only when the vehicle is in motion. -
Page 18: Distributor Interference
Chapter 2 Reducing Noise Interference Step 3. Step 4. Connect wire lead to capacitor Connect capacitor using lockwasher and nut. lead to battery post. From distributor Distributor Post Step 1. Mount Capacitor (0.1µF Coaxial Type) to vehicle chassis Battery Post using lockwasher and self-tapping screw. -
Page 19: Alternator/Generator Whine
Chapter 2 Reducing Noise Interference 2.4.3 Alternator/Generator Whine This type of interference is characterized by a high-pitched whine which varies with engine speed. A 0.5 μF coaxial capacitor can be used to bypass the whine. For generators, the capacitors is connected in the armature lead. -
Page 20: Voltage Regulator Noise
Chapter 2 Reducing Noise Interference Step 2. Step 1. Disconnect wire from Mount Capacitor to battery post and connect (0.5µF Coaxial Type) to capacitor using under alternator lockwasher and nut. ground screw. Caution: Do not connect capacitor to field terminal. Step 3. -
Page 21: Other Electrical Noises
Chapter 2 Reducing Noise Interference Step 1. Mount Capacitor (0.5µF Coaxial Type) to vehicle chassis Vehicle using lockwasher and self-tapping screw. Step 3. Add lead from battery Step 2. post to capacitor using Disconnect wire (dashed) lockwasher and nut. from battery post and Battery connect to capacitor using lockwasher and nut. - Page 22 Chapter 2 Reducing Noise Interference Firewall Fender Well Chassis Battery Front Wheel "A" Frame FL0830266-O Figure 2-6 Ground Bonding Page 20...
-
Page 23: Chapter 3 Installation Details For Standard Configurations
Chapter 3 Installation Details for Standard Configurations Chapter 3 Installation Details for Standard Configurations 3.1 Planning the Installation The mobile radio operates only in negative ground electrical systems. Before starting the radio installa- tion, make sure that the ground polarity of the vehicle is correct. Accidentally reversing the polarity will not damage the radio, but will cause the cable fuses to blow. -
Page 24: Wiring Diagrams
Chapter 3 Installation Details for Standard Configurations 3.1.3 Wiring Diagrams Figure 3-2 shows the wiring diagrams for some of the possible configurations. Identify the configura- tion that you are installing, and use the diagram when planning the installation. ANTENNA FUSE BATTERY RF ANTENNA RED LEAD... -
Page 25: Radio Mounting
Chapter 3 Installation Details for Standard Configurations 3.2 Radio Mounting DO NOT mount the radio on a plastic dashboard without first reinforcing the dashboard; the weight of the radio may crack or break the dashboard. DO NOT mount the radio on a flat or concave surface where the radio could be partially submersed in water. -
Page 26: Dash Mount With Trunnion
Chapter 3 Installation Details for Standard Configurations 3.2.1 Dash Mount with Trunnion 1. Select the location to mount your radio on the transmission hump (see Figure 3-4) or under the dash (see Figure 3-5). When mounting the trunnion on the transmission hump take care the trans- mission housing is not affected. -
Page 27: Locking Kit (Optional)
Chapter 3 Installation Details for Standard Configurations 3.2.2 Locking Kit (Optional) 3.2.2.1 All Radios If an optional locking kit is used (shown in Figure 3-6), position the lock bottom housing on the trunnion before installing the radio mounting screws. Then slip the top lock housing on and remove the key. You can install the lock on either side of the radio. -
Page 28: To Mount The Radio In The Frame
Chapter 3 Installation Details for Standard Configurations 3.2.3.2 To Mount the radio in the frame 1. Provide the electrical connections for the radio (power, antenna, accessories). 2. Plug in all the connectors and push the radio firmly into the mounting frame until the two springs snap into place (shown in Figure 3-7). -
Page 29: Ignition Sense Cable
Figure 3-8 Cabling Interconnect Diagram for Dash Mount 3.4 Ignition Sense Cable Vertex Standard supplies an ignition sense cable and recommends that it be used with every mobile installation. The ignition sense cable allows the radio to be turned on and off with the vehicle ignition switch, and allows the radio to “remember”... -
Page 30: Antenna Installation
NOTE: For mobile radios with rated power of 7 watts or less, the only installation restrictions are to use only Vertex Standard approved antennas and install the antenna externally on metal body ve- hicles. For mobile radios with rated power greater than 7 Watts, always adhere to all the guide- lines and restrictions in Section 3.5.1 below. -
Page 31: Antenna Installation Procedure
Chapter 3 Installation Details for Standard Configurations 3.5.2 Antenna Installation Procedure 1. Mount the antenna according to the instructions provided with the antenna kit. Run the coaxial ca- ble to the radio mounting location. If necessary, cut off the excess cable and install the cable con- nector. -
Page 32: Antenna Connection
NOTE: Applying excessive force with a tool can cause damage to the antenna or the connector (e.g., stripping threads, deforming the collar or connector, or causing the connector to twist in the housing opening and break). Vertex Standard recommends the following sequence to ensure proper attachment of the system (see Figure 3-10): Figure 3-10 Mini-UHF Connection 1. -
Page 33: Microphone Hang-Up Clip
Chapter 3 Installation Details for Standard Configurations 3.6 Microphone Hang-Up Clip 3.6.1 Standard Hang-Up Clip The hang-up clip must be within reach of the operator(s). Measure this distance before actually mount- ing the bracket. Since the bracket has a positive-detent action, the microphone can be mounted in any position. - Page 34 Chapter 3 Installation Details for Standard Configurations Note Page 32...
-
Page 35: Chapter 4 Options And Accessories Installation
The accessories must be installed through the rear accessory connector that is located on the rear of the radio, adjacent to the power connector. Most of the Vertex Standard-approved accessories are supplied with female terminals crimped to a 20-gauge wire specifically designed to fit the plug of the rear accessory connector. - Page 36 Chapter 4 Options and Accessories Installation Table 4-1 Rear Accessory Connector Pin Functions Pin No. Pin Name Pin Function Pin No. Pin Name Pin Function USB+ ( Data ) USB+ Rx Audio Receive Live Audio USB – USB – ( Data ) AUX Audio 2 PUBLIC Address 2 USB Power...
-
Page 37: Horn And Lights (External Alarm) Relay
Chapter 4 Options and Accessories Installation 4.1.1 Horn and Lights (External Alarm) Relay For installations that use the horn/lights option, select a suitable location for mounting (normally under the dash) and, referring to Figure 4-3, perform the following procedure: 1. Horn Relay – Connect the relay contacts across the horn ring switch, typically found in the steering column. -
Page 38: External Speaker
Chapter 4 Options and Accessories Installation 4.1.2 External Speaker DO NOT ground the radio’s speaker leads. This system has a floating speaker output (dc voltage on both leads); damage to the audio circuit will result if either lead is grounded or if they are shorted together. -
Page 39: Appendix
The Vertex Standard VXD Series Mobile Radios Basic Service Manual includes complete parts lists and parts numbers. Servicing Information If a unit requires further complete testing, knowledge and/or details of component level troubleshooting or service than is customarily performed at the basic level, please contact your Vertex Standard dealer. Page 37... -
Page 40: Index
Index Index accessories ignition installing cable ............... 28 dash mount..........33 Induced noise ............12 alligator clips ............14 installation antenna examples ............21 cable, cables, antenna connection ..........30 diagrams ........... 30 installing ............ 28 pin configuration ..........22 mounting ........... - Page 41 Index Index speaker connecting ............31 mounting ............36 tools, required ............21 trunnion bracket for speaker ......... 36 dash mount ............ 24 locking kit ............25 mounting bracket ..........24 orientation ............23 transmission hump mounting ......24 unmodulated ............14 wiring diagrams ...........
- Page 42 Note Page 40...
- Page 44 Copyright 2013 Vertex Standard LMR, Inc. All rights reserved. No portion of this manual may be reproduced without the permission of Vertex Standard LMR, Inc.
