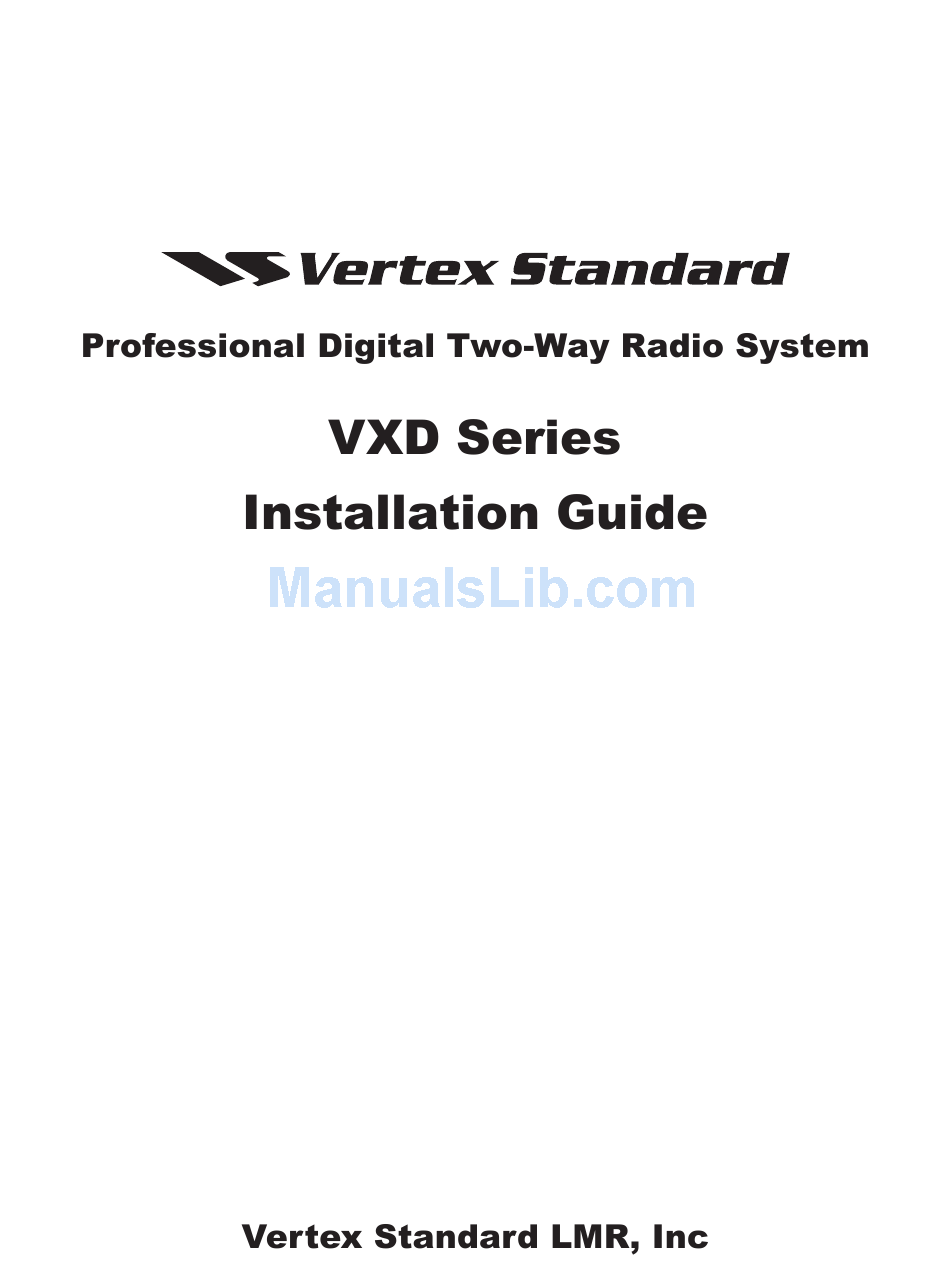

Vertex Standard VXD Series Installation Manual
Vertex Standard VXD Series Installation Manual

Vertex Standard VXD Series Installation Manual

Professional digital two-way radio system
Hide thumbs Also See for VXD Series:

Advertisement

Quick Links

Advertisement

loading

Summary of Contents for Vertex Standard VXD Series

  • Page 9 8.2” 6.8” 8.3” 7.9” 2“ 2.4“...
  • Page 12 Wall- outlet Line Cord with Ground Power Supply Outdoor Antenna Lightning Protector With Quarter Wave Shorting Stub Desktop Power Cable Speaker Desk Microphone Antenna Cable Antenna Connector Radio in Desktop Tray...
  • Page 14 Windshield Wiper Motor Inadequate Terminal or Fuse Block Filtering Heater Air Conditioner Blowe Radiated Noise Pick-up Electric Windows Motors Hood Static Antenna Ground or Location Power Seat Motor Electric Fuel Pump Distributor Ignition Voltage Coil Regulator Spark Plug Wires Alternator or Generator Spark Plugs Idle Stop...
  • Page 15 HV Lead Distributor Ignition Breaker Coil Ignition Points Switch Spark plug leads Spark Plugs Condenser Rotor Gap Ignition Breaker Coil Ignition Lead Inductance Points Switch Stray Capacitance Spark Plug Gap Battery Condenser...
  • Page 18 Step 3. Step 4. Connect wire lead to capacitor Connect capacitor using lockwasher and nut. lead to battery post. From distributor Distributor Post Step 1. Mount Capacitor (0.1µF Coaxial Type) to vehicle chassis Battery Post using lockwasher and self-tapping screw. Step 2.
  • Page 19 Step 1. Step 3. Mount Capacitor Connect wire lead to capacitor (0.5µF Coaxial Type) using lockwasher and nut. under generator ground screw. Step 4. Connect capacitor lead to armature post. Caution: Do not connect capacitor to field teminal. Step 2. Disconnect wire (dashed) from armature post and connect to capacitor using...
  • Page 20 Step 2. Step 1. Disconnect wire from Mount Capacitor to battery post and connect (0.5µF Coaxial Type) to capacitor using under alternator lockwasher and nut. ground screw. Caution: Do not connect capacitor to field terminal. Step 3. Connect wire lead to capacitor using lockwasher and nut.
  • Page 21 Step 1. Mount Capacitor (0.5µF Coaxial Type) to vehicle chassis Vehicle using lockwasher and self-tapping screw. Step 3. Add lead from battery Step 2. post to capacitor using Disconnect wire (dashed) lockwasher and nut. from battery post and Battery connect to capacitor using lockwasher and nut.
  • Page 22 Firewall Fender Well Chassis Battery Front Wheel "A" Frame FL0830266-O...
  • Page 24 ANTENNA FUSE BATTERY RF ANTENNA RED LEAD FUSE FIREWALL HOLE BLOCK IGNITION CABLE FUSE HORN/ POWER LIGHT ANTENNA CABLE CONNECTION TRUNNION CLIP SPEAKER CONTROL HEAD EMERGENCY SWITCH...
  • Page 25 RADIO FRONT...
  • Page 26 Wing Screw Lock Washer Threaded Hole for Wing Screw Lock Washer Trunnion Tabs Wing Screw Trunnion Wing Screw Lock Washer Lock Washer Wing Screw...
  • Page 27 Lock...
  • Page 29 CAUTION A good chassis connection via the black primary VEHICLE power cable is essential for radio operation and IGNITION SWITCH to prevent damage to the radio and cable kit. Connection to the vehicle frame is desirable. ON/ACC PART OF RADIO IGNITION RADIO POWER CABLE (BLK/GROUND) VEHICLE CABLE (thin RED)
