VX-2500
O
M
PERATING
ANUAL
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
YAESU EUROPE B.V.
P.O. Box 75525, 1118 ZN Schiphol, The Netherlands
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
VX-2500 O
M
PERATING
ANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VX-2500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vertex Standard VX-2500

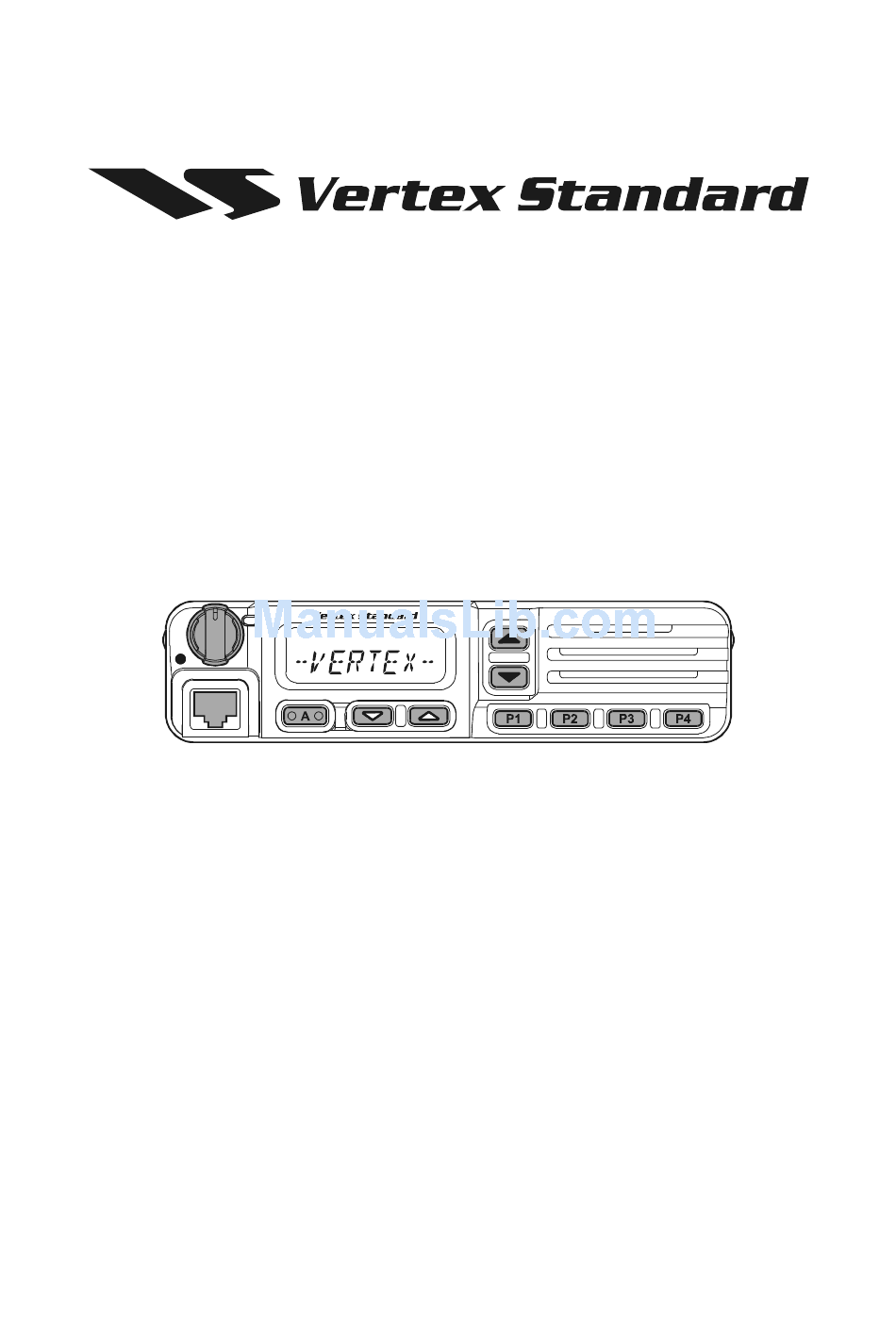

  • Page 1 VX-2500 PERATING ANUAL VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K.
  • Page 2 We’re glad you joined the VERTEX STANDARD team. Call on us anytime, be- cause communications is our business. Let us help you get your message across.
  • Page 3 NTRODUCTION The VX-2500 Series are full-featured FM transceivers designed for flexible mobile and base station business communications in the VHF or UHF Land Mobile bands. These transceiver are designed for reliable business communications in a wide vari- ety of applications with a wide range of operating capability provided by their lead- ing-edge design.
  • Page 4: Controls And Connectors

    Front Panel Important! - All buttons located on the Front Panel are Programmable Function ( PF ) Buttons, configured according to your network requirements and programmed by your VERTEX STANDARD dealer. The instructions below a typically-config- ured radio. Knob Turn this control clockwise to turn the radio on and to increase the volume. Turn it counterclockwise into the click-stop to turn the radio off.
  • Page 5: Microphone Jack

    This button can be set up for special applications, such as High/Low power selection, Monitor, Talk-Around, etc, as determined by your network require- ments and programmed by your VERTEX STANDARD dealer. [ ]/[ ] Buttons (Programmable Function Buttons) Pressing either button changes the current group (and displayed group number or name).
  • Page 6: Rear Panel

    External TX audio line input, PTT (Push To Talk), Squelch, and external RX audio line output signals may be obtained from this connector for use with ac- cessories such as data transmission/reception modems, etc. Page 4 VX-2500 O PERATING ANUAL...
  • Page 7: Switching Power On/Off

    If CTCSS or Digital Coded Squelch (DCS) Lockout has been programmed on a channel, the radio can transmit only when there is no carrier being received or when the carrier being received includes the correct CTCSS tone or DCS code. Page 5 VX-2500 O PERATING ANUAL...
  • Page 8: Automatic Time-Out Timer

    PTT switch and wait for the “penalty timer” to expire (if you press the PTT switch before this timer expires, the timer restarts, and you will have to wait another “penalty” period) Page 6 VX-2500 O PERATING ANUAL...
  • Page 9: Advanced Operation

    PERATION Programmable Function ( ) Buttons The VX-2500 includes nine Programmable Function (PF) Buttons. The PF button functions can be customized, via programming by your VERTEX STANDARD dealer, to meet your communications/network requirements. Some features may re- quire the purchase and installation of optional internal accessories. The possible PF button programming features are illustrated below, and these functions are explained on the pages to follow.
  • Page 10: Description Of Operating Functions

    ROUP ELECTION The VX-2500 is capable of separating its 128 memory channels into any of 10 groups. There is no limit as to the number of channels which may be assigned to each group. The Dealer will have made the group assignment at the time of channel program- ming.
  • Page 11 H Press the assigned PF button. H The scanner will search the two channels; it will pause each time it finds a channel on which someone is speaking. To stop Dual Watch: H Press the assigned PF button. Page 9 VX-2500 O PERATING ANUAL...
  • Page 12 Note that your dealer may have made provision for “Talk Around” channels by programming “repeater” and “Talk Around” frequencies on two adjacent channels. If so, the key may be used for one of the other Pre-Programmed Functions. Page 10 VX-2500 O PERATING ANUAL...
  • Page 13 PF button to sent your radio’s identification code (ANI) to the dispatcher. MERGENCY The VX-2500 includes an “Emergency” feature which may be useful if you have someone monitoring on the same frequency as your transceiver’s channel. Press the assigned PF button to initiate an emergency call. For further details con- tact your VERTEX STANDARD dealer.
  • Page 14: Arts (Auto Range Transpond System)

    When your radio is paged by a station bearing a tone sequence which matches yours, your radio’s squelch will open and the alert ringer will sound. The three-digit code of the station which paged you will be displayed on your radio’s LCD. Page 12 VX-2500 O PERATING ANUAL...
  • Page 15: Optional Accessories

    Availability of accessories may vary; some accessories are supplied standard per local requirements, others may be unavailable in some regions. Check with your VERTEX STANDARD Dealer for changes to this list. This device complies with Part 15 of the FCC rules.
  • Page 16 Copyright 2004 Printed in Japan VERTEX STANDARD CO., LTD. All rights reserved. No portion of this manual may be reproduced without the permission of VERTEX STANDARD CO., LTD. VX-2500 O PERATING ANUAL...
