Kyocera TASKalfa 250ci Quick Manual

QUICKGuide

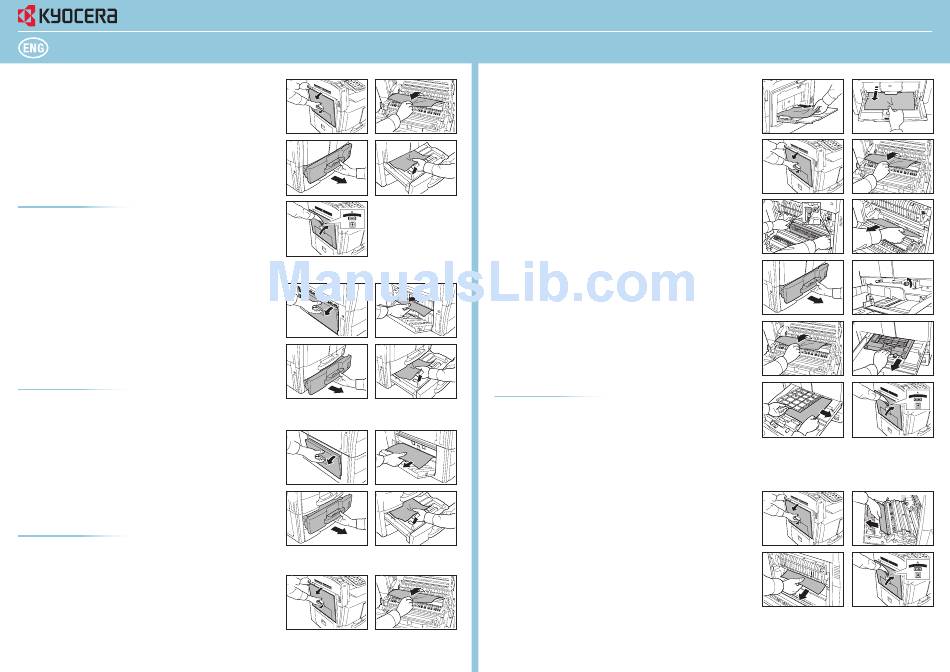

Clearing paper jams

Cassette 1
➊ Pull up left cover 1 lever and open
the left cover 1.
Remove the jammed paper.
➋
➌ Pull out cassette 1.
Remove the jammed paper. If the
➍
paper tears, remove every loose scrap
from inside the machine.
Push cassette 1 back in place secu-
➎
rely.
Press the specified position to close
➏
left cover 1.
Cassette 2 Open left cover 3.
➊
Remove the jammed paper.
➋
Pull out cassette 2.
➌
➍ Remove the jammed paper. If the
paper tears, remove every loose scrap
from inside the machine.
Push cassette 2 back in place secu-
➎
rely.
Close left cover 3.
➏
Optional Open left cover 4.
➊
Cassettes 3 and 4
Remove the jammed paper. If the
➋
paper tears, remove every loose scrap
from inside the machine.
➌ Pull out the cassette in use.
Remove the jammed paper.
➍
Push the cassette back in place
➎
securely.
Close left cover 4.
➏
Inside the Left Covers Open the left cover where the pa-
➊
per is jammed inside.
1, 3 and 4
Remove the jammed paper. If the
➋
paper tears, remove every loose scrap
from inside the machine.
➌ Close the left cover.
TASKalfa 250ci/300ci/400ci/500ci/552ci
① ②
③ ④
⑥
① ②
③ ④
① ②
③ ④
① ②
Clearing paper jams
Multi Purpose
➊ Remove all papers from the multi
purpose tray.
Tray
If paper is jammed inside, pull the
➋
paper toward you to remove.
Pull up left cover 1 lever and open
➌
the left cover 1.
Remove the jammed paper. If the
➍
paper tears, remove every loose scrap
from inside the machine.
➎ Open the feed guide B1.
Remove the jammed paper. If the
➏
paper tears, remove every loose scrap
from inside the machine.
Pull out cassette 1.
➐
➑ Turn the lower green knob (B2) to
the left at least 10 times.
Remove the jammed paper. If you
➒
cannot remove the paper, proceed
with the next step.
Pull out paper feed unit (B3).
❿
Open paper feed unit cover (B4)
⓫
and remove the jammed paper.
Push paper feed unit (B3) back in
⓬
place, and push the cassette back in
place securely.
⓭ Press the specified position to close
left cover 1.
Duplex Unit Pull up left cover 1 lever and open
➊
the left cover.
Remove the jammed paper.
➋
Press the specified position to close
➌
left cover 1.
① ②
③ ④
⑤ ⑥
⑦ ⑧
⑨ ⑩
⑪ ⑬
① ②
③
