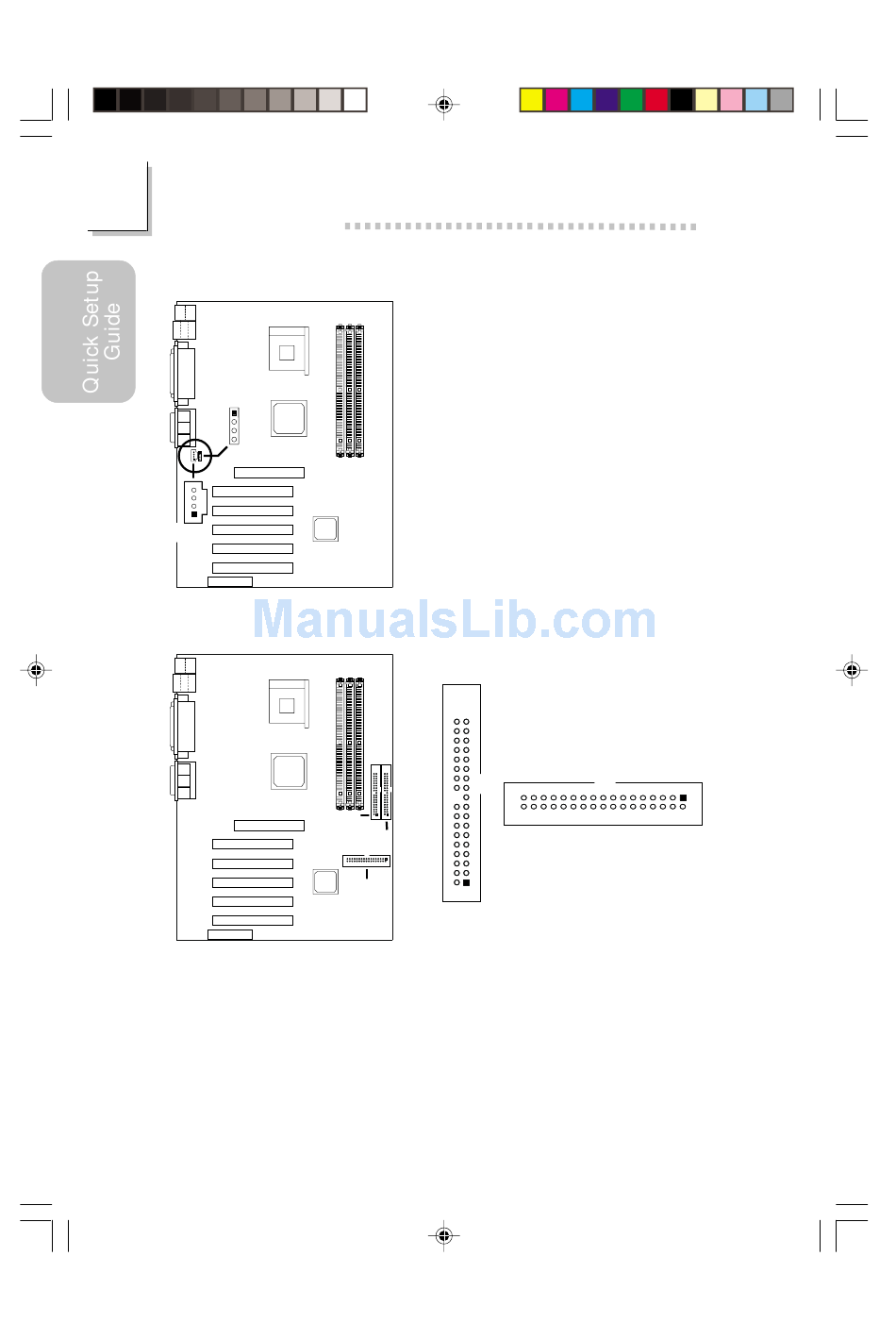

1.3.7 Internal Audio Connectors

1
2
3
4
AUX-in (J4)
4
3
2
1
CD-in
(J3)

1.3.8 Floppy and IDE Disk Drive Connectors

If you encountered problems while using an ATAPI CD-ROM drive that is
set in Master mode, please set the CD-ROM drive to Slave mode. Some
ATAPI CD-ROMs may not be recognized and cannot be used if
incorrectly set in Master mode.
12
CD-in / AUX-in
1 Left audio channel
2 Ground
3 Ground
4 Right audio channel
39
40
Secondary
IDE (IDE 2)
Primary IDE
(IDE 1)
2 1
Floppy
IDE
33 1
34 2
FDD
