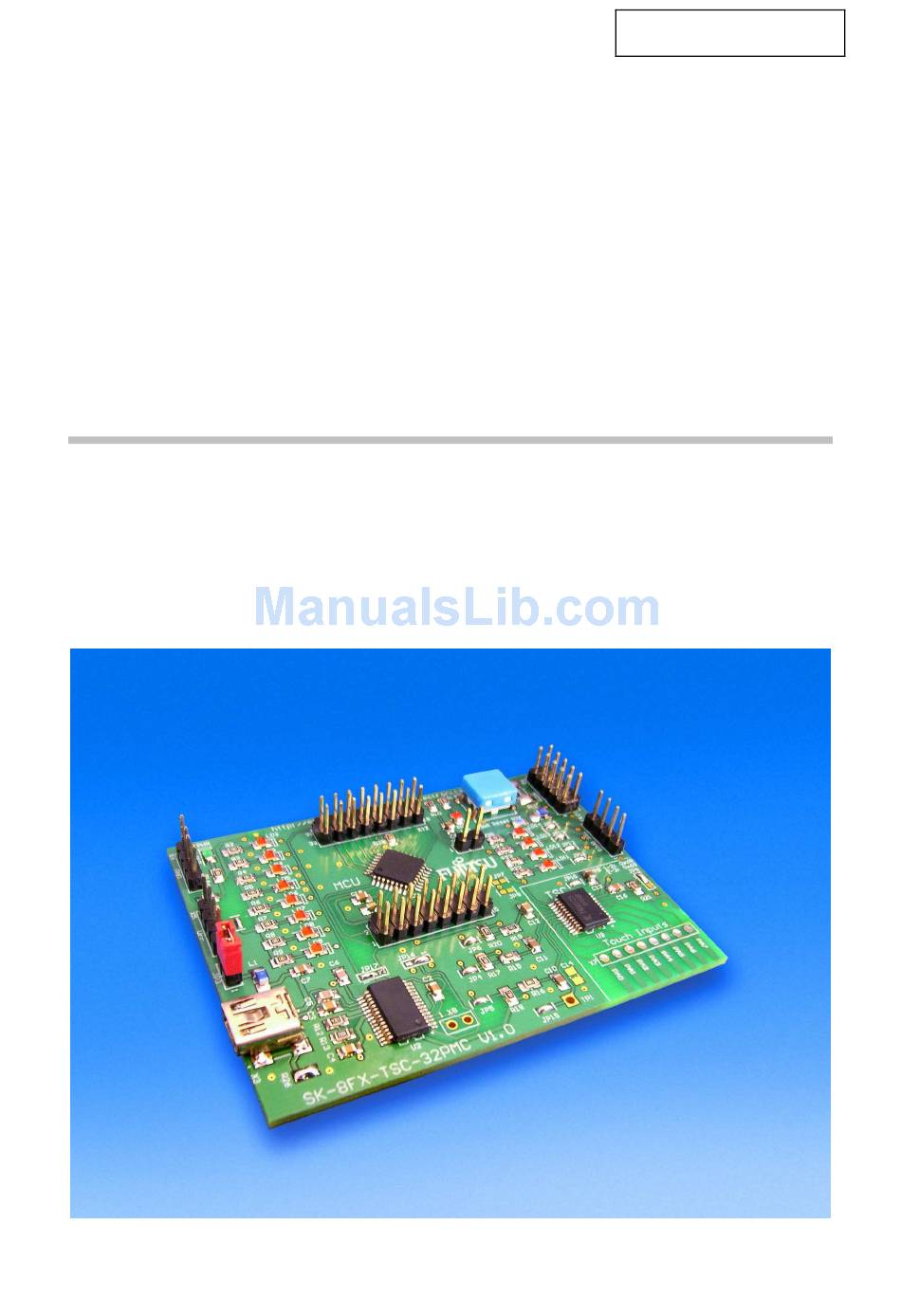

- Page 1 Fujitsu Semiconductor Europe FMEMCU-UG-90003-10 User Guide 8FX FAMILY MB95330 + FMA1125 SERIES EVALUATION BOARD SK-8FX-TSC-32PMC USER GUIDE...
-
Page 2: Revision History
SK-8FX-TSC-32PMC User Guide Revision History Revision History Date Issue 08.04.2011 V1.0, CHa, First Release This document contains 28 pages. FMEMCU-UG-90003-10 - 2 - © Fujitsu Semiconductor Europe GmbH... -
Page 3: Warranty And Disclaimer
The use of the deliverables (e.g. software, application examples, target boards, evaluation boards, starter kits, schematics, engineering samples of IC’s etc.) is subject to the conditions of Fujitsu Semiconductor Europe GmbH (“FSEU”) as set out in (i) the terms of the License Agreement and/or the Sale and Purchase Agreement under which agreements the Product has been delivered, (ii) the technical descriptions and (iii) all accompanying written materials. -
Page 4: Table Of Contents
TSC Touch Input Connector (X7) ................21 5 BASIC TSC TUNING PROCESS ................... 22 Reference Delay....................22 Alpha ........................23 Filter Period, Filter Threshold ................23 Impedance, Calibrated Impedance ................ 23 6 APPENDIX ........................25 FMEMCU-UG-90003-10 - 4 - © Fujitsu Semiconductor Europe GmbH... - Page 5 SK-8FX-TSC-32PMC User Guide Contents Related Products ....................25 7 INFORMATION IN THE WWW..................26 8 CHINA-ROHS REGULATION ..................27 9 RECYCLING ........................28 © Fujitsu Semiconductor Europe GmbH - 5 - FMEMCU-UG-90003-10...
-
Page 6: Overview
Chapter 1 Overview 1 Overview 1.1 Abstract The SK-8FX-TSC-32PMC is a multifunctional evaluation board for the Fujitsu 8FX Flash microcontroller MB95330 Series, as well as for the FMA1125 Series Touch Sensor Controller (TSC). It can be used stand-alone for software development and testing or as a simple target board to work with the emulator system. -
Page 7: Features
< 4 User LEDs connected to TSC GPIO pins with PWM capability < Reset button, Reset LED This board must only be used for test applications in an evaluation laboratory environment. © Fujitsu Semiconductor Europe GmbH - 7 - FMEMCU-UG-90003-10... -
Page 8: General Description
USB can be disconnected by solder jumpers to free the corresponding MCU pins. 1.3.4 Power Supply The SK-8FX-TSC-32PMC is by default powered by the USB connection to a host PC or USB power supply. Alternatively, a stabilized supply voltage can be connected to the pin headers X4 (GND) and X5 (VCC). - Page 9 Chapter 1 Overview 1.3.7 Debugging system (BGMA adapter) The SK-8FX-TSC-32PMC can be used together with the MB2146-08-E BGMA adapter (not included) for Flash programming of the MCU and for application debugging. For this, a 10- pin connector (X2) is provided.
-
Page 10: Installation
When you connect the board to the PC, the PC will recognize the new hardware and display messages prompting you to install the driver. Follow these steps to install the driver. FMEMCU-UG-90003-10 - 10 - © Fujitsu Semiconductor Europe GmbH... - Page 11 This procedure will explain how to install the driver software previously downloaded instead of connecting to Windows Update. Select "Install from a list or specific location (Advanced)", and click "Next". Click "Browse" and specify the folder containing the driver, then click "Next". © Fujitsu Semiconductor Europe GmbH - 11 - FMEMCU-UG-90003-10...
- Page 12 SK-8FX-TSC-32PMC User Guide Chapter 2 Installation Wait for the "USB Serial Converter" installation to complete. Click "Finish" to complete the installation of "USB Serial Converter". FMEMCU-UG-90003-10 - 12 - © Fujitsu Semiconductor Europe GmbH...
- Page 13 Next, install the "USB Serial Port". Select "Install from a list or specific location (Advanced)", and click "Next". Click "Browse" and specify the folder "CDM 2.04.06 WHQL Certified" downloaded earlier, then click "Next". © Fujitsu Semiconductor Europe GmbH - 13 - FMEMCU-UG-90003-10...
- Page 14 Click "Finish" to complete the installation of "USB Serial Port". the VCP Driver was installed, This completes the installation of the USB driver. Now that a new serial interface will be available in the system. FMEMCU-UG-90003-10 - 14 - © Fujitsu Semiconductor Europe GmbH...
-
Page 15: Default Jumper Settings
TSC TCLK input Solder JP 2 pin Closed JP16 Serial Data reception port (UI0/SIN) Solder JP 3 pin JP17 Serial Data transmission port (UO0/SOT) Solder JP 3 pin Table 2-1: Jumper Settings © Fujitsu Semiconductor Europe GmbH - 15 - FMEMCU-UG-90003-10... -
Page 16: Jumpers And Switches
The default setting is shown with a grey shaded area. 3.1 Power Supply (JP3) The SK-8FX-TSC-32PMC is by default powered by the USB connection to a host PC or USB power supply. Alternatively, a stabilized supply voltage can be connected to the pin headers X4 (GND) and X5 (VCC). -
Page 17: User Reset (Jp2)
Jumper Setting Description AVcc is connected to Vcc JP16 (RX) AVcc is disconnected from Vcc AVRH is connected to AVcc JP17 (TX) AVRH defined by resistor network Table 3-5: UART select © Fujitsu Semiconductor Europe GmbH - 17 - FMEMCU-UG-90003-10... -
Page 18: Mcu-Tsc Interface (Jp: 4, 5, 6, 7, 8)
TSC logic not connected to internal LDO Closed TCLK input connected to GND (internal clock used) JP15 (TCLK) Open TCLK can be used as external test clock input Table 3-7: TSC configuration FMEMCU-UG-90003-10 - 18 - © Fujitsu Semiconductor Europe GmbH... -
Page 19: Tsc User Leds (Jp: 11, 12, 13, 14)
LD13 is connected to TSC GPIO2 (TSC Pin 4) JP13 (LD13) Open LD13 is not connected Closed LD14 is connected to TSC GPIO3 (TSC Pin 8) JP14 (LD14) Open LD14 is not connected Table 3-8: TSC User LEDs © Fujitsu Semiconductor Europe GmbH - 19 - FMEMCU-UG-90003-10... -
Page 20: Connectors
When powering up, please follow the order given below: 1. Connect BGMA adapter to the SK-8FX-TSC-32PMC. 2. Connect BGMA adapter to host USB port (LED on BGMA adapter should be green) 3. Power up the SK-8FX-TSC-32PMC (LED on BGMA adapter should turn orange) Pin Number Pin Signal... -
Page 21: Gnd Connector (X4)
Touch input 3 (or GPIO) Touch input 4 (or GPIO) Touch input 5 (or GPIO) Touch input 6 (or GPIO) Touch input 7 (or GPIO) Table 4-3: TSC Touch Input Connector Signals © Fujitsu Semiconductor Europe GmbH - 21 - FMEMCU-UG-90003-10... -
Page 22: Basic Tsc Tuning Process
Following some basic rules during the tuning process of an FMA1125 touch application can help to get the application running quickly. An example program is pre-programmed on the SK-8FX-TSC-32PMC, which enables easy parameter tuning using a sort of command-line interface to a host PC running a standard terminal program (8N1, 115200 baud). -
Page 23: Alpha
SK-8FX-TSC-32PMC User Guide Chapter 5 Basic TSC Tuning Process This capacitor is called ‘Tuning Capacitor’ (C14 on the SK-8FX-TSC-32PMC). Also here, one step of Reference Delay register corresponds to 0.078pF when using the default settings, so that attaching a 4.7pF capacitor to the PAREF pin will decrement all impedance values by about 60 counts. - Page 24 Reference Impedance can be used as strength value for each channel, and using an interpolation algorithm, high-resolution poison information can be calculated. Please refer to the SK-TSC-1127-SB example software for implementation details (available on the Fujitsu Web site mentioned in the appendix of this document).
-
Page 25: Appendix
BGMA adapter for Flash programming and debugging < SK-TSC-1125S Starter Kit / Test Board for FMA1125 TSC < SK-TSC-1127-SB Starter Kit for FMA1127 TSC < SK-TSC-1127-TB Test Board for FMA1127 TSC © Fujitsu Semiconductor Europe GmbH - 25 - FMEMCU-UG-90003-10... -
Page 26: Information In The Www
Datasheets and Hardware Manuals, Support Tools (Hard- and Software) http://mcu.emea.fujitsu.com/ Touch Sensor Controllers http://www.fujitsu.com/emea/services/microelectronics/tsc/ Power Management Products http://www.fujitsu.com/emea/services/microelectronics/powerman/ Media Products: SAW filters, acoustic resonators and VCOs http://www.fujitsu.com/emea/services/microelectronics/saw/ For more information about FUJITSU SEMICONDUCTOR http://www.fujitsu.com/emea/services/microelectronics/ FMEMCU-UG-90003-10 - 26 - © Fujitsu Semiconductor Europe GmbH... -
Page 27: China-Rohs Regulation
SK-8FX-TSC-32PMC User Guide Chapter 8 China-RoHS regulation 8 China-RoHS regulation This board is compliant with China RoHS © Fujitsu Semiconductor Europe GmbH - 27 - FMEMCU-UG-90003-10... -
Page 28: Recycling
According to the European WEEE-Directive and its implementation into national laws we take this device back. For disposal please send the device to the following address: Fujitsu Semiconductor Europe GmbH Warehouse/Disposal Monzastraße 4a 63225 Langen FMEMCU-UG-90003-10 - 28 - © Fujitsu Semiconductor Europe GmbH...
