Fujitsu Microelectronics Europe
FMEMCU-UG-960010-11
User Guide
F²MC-16FX FAMILY

EVALUATION BOARD

SK-96320-80PMC
USER GUIDE

Advertisement

Table of Contents
loading

Summary of Contents for Fujitsu SK-96320-80PMC

  • Page 1: Evaluation Board

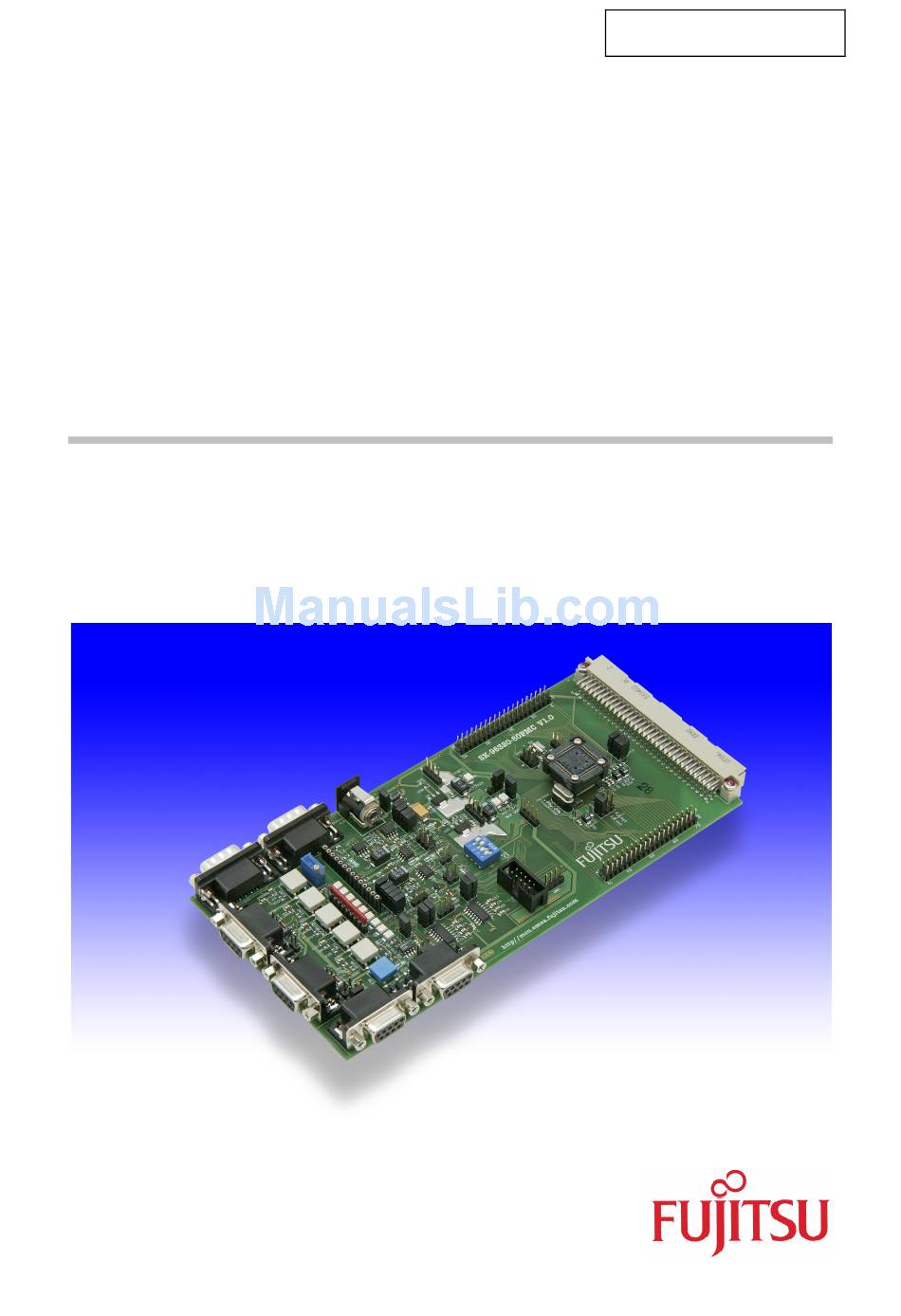

    Fujitsu Microelectronics Europe FMEMCU-UG-960010-11 User Guide F²MC-16FX FAMILY EVALUATION BOARD SK-96320-80PMC USER GUIDE...
  • Page 2: Revision History

    SK-96320-80PMC User Guide Revision History Revision History Date Issue 06.07.2007 V1.0, HWe/DGo, First Release 08.02.2008 V1.1, HWe, China-RoHS regulation added This document contains 34 pages. FMEMCU-UG-960010-11 - 2 - © Fujitsu Microelectronics Europe GmbH...
  • Page 3: Warranty And Disclaimer

    To the maximum extent permitted by applicable law, Fujitsu Microelectronics Europe GmbH restricts its warranties and its liability for the SK-96320-80PMC Board and all its deliverables (eg. software include or header files, application examples, target boards, evaluation boards, engineering samples of IC’s etc.), its performance and any consequential damages, on the use of the Product in...
  • Page 4: Table Of Contents

    Edge connector (X1, X2) ..................25 UART”A”, UART”B” connector (X3, X5)..............25 LIN”A”, LIN”B” Interface connector (X6, X8) ............26 CAN”A”, CAN”B” Interface connector (X10, X11)........... 26 USER-LEDs & optional LC-Display ............... 26 FMEMCU-UG-960010-11 - 4 - © Fujitsu Microelectronics Europe GmbH...
  • Page 5 6 SILK-PLOT OF THE BOARD ..................28 7 REVISION AND ERROR LIST ..................29 8 RELATED PRODUCTS ....................30 9 INFORMATION IN THE WWW..................31 10 CHINA-ROHS REGULATION ..................32 11 RECYCLING ........................34 © Fujitsu Microelectronics Europe GmbH - 5 - FMEMCU-UG-960010-11...
  • Page 6: Overview

    Chapter 1 Overview 1 Overview 1.1 Abstract The SK-96320-80PMC is a multifunctional evaluation board for the Fujitsu 16-bit Flash microcontroller series MB96320. It can be used stand-alone for software development and testing or as a simple target board to work with the emulator system.
  • Page 7: General Description

    SK-96320-80PMC User Guide Chapter 1 Overview 1.3 General Description The SK-96320-80PMC supports the 16-bit Flash microcontroller MB96320 Series. It can be used as a stand-alone evaluation board or as a target board for the emulator debugger. The evaluation board supports the following package: FPT-80P-M21.
  • Page 8 If the board is used as an emulator target board, the microcontroller must be removed from the socket and the corresponding probe cable has to be mounted: Series V-Chip Probe cable NQ-Pack HQ-Pack MB96320 MB96V300B MB2198-505 NQPACK080SD-ND HQPACK080SD FMEMCU-UG-960010-11 - 8 - © Fujitsu Microelectronics Europe GmbH...
  • Page 9: Installation

    When turning on the system, be sure to use the following power-up sequence: 1. Power up the emulator main unit (MB2198-01) 2. Power up the adapter board (MB2198-500) 3. Power up the target board (SK-96320-80PMC) To turn off the system, switch off the components in reverse order, beginning with the target board.
  • Page 10: Default Jumper Settings For Mb96320

    Closed JP44 LIN VBat A Jumper 2 pin Open JP45 LIN VBat B Jumper 2 pin Open JP46 SDA0 Pull-Up Jumper 2 pin Open JP47 SCL0 Pull-Up Jumper 2 pin Open FMEMCU-UG-960010-11 - 10 - © Fujitsu Microelectronics Europe GmbH...
  • Page 11 SK-96320-80PMC User Guide Chapter 2 Installation LIN B LIN A UART A CAN A UART B CAN B Solder Jumper Std. Jumper © Fujitsu Microelectronics Europe GmbH - 11 - FMEMCU-UG-960010-11...
  • Page 12: Jumpers And Switches

    ON (closed) 1 (high) S2/2 (MD1) OFF (open) 0 (low) ON (closed) 1 (high) S2/3 (MD2) OFF (open) 0 (low) S2/4 not connected MD0 MD1 MD2 nc Dip-Switch S2 (run mode) FMEMCU-UG-960010-11 - 12 - © Fujitsu Microelectronics Europe GmbH...
  • Page 13: Power Supply (Jp: 29, 37, 43, 44, 45)

    (VBAT_A) Open No voltage supply to Vs of LIN A JP45 Closed Vs of LIN B is powered by the board (VBAT_B) Open No voltage supply to Vs of LIN B © Fujitsu Microelectronics Europe GmbH - 13 - FMEMCU-UG-960010-11...
  • Page 14: Analog Power Supply Voltage (Jp: 11, 13, 15)

    If JP11 and JP15 are open, the user has to supply an adequate analog voltage supply (AVcc and AVss) to the A/D-converter. If JP13 is open, the resistors R11 and R23 define AVRH. By default the resistors R11 and R23 are not mounted on the board. FMEMCU-UG-960010-11 - 14 - © Fujitsu Microelectronics Europe GmbH...
  • Page 15: Subclock (Jp: 34, 41)

    Pin 25 is connected to the 32kHz Subclock (X1A) JP34 (X1A, P41) Pin 25 is used as P4_1 and is connected to X4-C9 Default: JP41: 1-2, JP34: 1-2 By default, the 32 kHz-subclock-crystal is connected to the microcontroller. © Fujitsu Microelectronics Europe GmbH - 15 - FMEMCU-UG-960010-11...
  • Page 16: Uart"A" (Jp: 1, 2, 31)

    RTS and CTS of X5 are connected JP32 (RTS-CTS) Open RTS and CTS of X5 are not connected By default, UART3 is connected to UART”B”. UART “B” can be used for serial asynchronous Flash programming. FMEMCU-UG-960010-11 - 16 - © Fujitsu Microelectronics Europe GmbH...
  • Page 17: Lin"A" (Jp: 17, 18, 21, 22, 44)

    No voltage supply to Vs of LIN A Connects WAKE signal to Bus power JP36 (WAKE) Connects WAKE signal to VCC By default, the LIN”A”-interface is not connected to a UART. © Fujitsu Microelectronics Europe GmbH - 17 - FMEMCU-UG-960010-11...
  • Page 18: Lin"B" (Jp: 9, 10, 38, 39, 45)

    TX1 of MCU is connected to CAN”A” JP26 (CAN”A”RX) closed RX1 of MCU is connected to CAN”A” CAN A VCC is set to 5V JP19 (VCC CAN A) CAN A VCC is set to 3V3 FMEMCU-UG-960010-11 - 18 - © Fujitsu Microelectronics Europe GmbH...
  • Page 19: Can"B" (Jp: 27, 28)

    For normal operation the C-pin must be connected to two capacitors. For test purposes you can disconnect these two capacitors. Jumper Setting Description C-Pin is connected to capacitors for normal closed operation JP40 (C-Pin) C-Pin is left open (not recommended for normal open operation) © Fujitsu Microelectronics Europe GmbH - 19 - FMEMCU-UG-960010-11...
  • Page 20: Reset-Generation (Jp: 3, 4, 5, 7, 24, 35)

    If JP35 (Polarity) is set, JP4 and either JP3 or JP5 have to be set, too. If the reset LED is steadily on, check the power supply input voltage and the settings for the reset-generation by UART. FMEMCU-UG-960010-11 - 20 - © Fujitsu Microelectronics Europe GmbH...
  • Page 21: Buttons Sw1, Sw2, Sw3, Sw4, Sw5, Sw6 (Jp: 12, 14, 16, 20, 23, 24)

    JP24 (Reset) Open No connection to RSTX Default: JP12, JP14, JP16, JP20, JP23, JP24 = Closed By default, all push-buttons as well as the reset circuit are connected to the microcontroller. © Fujitsu Microelectronics Europe GmbH - 21 - FMEMCU-UG-960010-11...
  • Page 22: Programming The Internal Flash Memory

    4.1 Asynchronous Mode In order to program the Flash-ROM asynchronously, the tool “Fujitsu Flash MCU Programmer for FMC16FX” can be used. This tool is available free on the Fujitsu Micros DVD or Web Site (http://mcu.emea.fujitsu.com/: select < Software < Utilities) The following procedure must be followed to enable Flash Programming: 1.
  • Page 23 Chapter 4 Programming the internal Flash memory 6. Check that the Reset LED is off. Otherwise change the DTR polarity (JP35) and check the power supply voltage. Start the tool “Fujitsu Flash MCU Programmer for FMC16FX” software and follow the instructions: MB96F326R Figure 4-1: Settings for Automatic Mode 7.
  • Page 24: Synchronous Mode

    X17: Flash programming socket nc. 1 2 P00_1 MD0 3 4 nc. RSTX 5 6 SIN3 SOT3 7 8 SCK3 VCC 9 10 GND Figure 4-2: Flash Programming Socket FMEMCU-UG-960010-11 - 24 - © Fujitsu Microelectronics Europe GmbH...
  • Page 25: Connectors

    TXD is the transmit output, RXD is the receive input. The DTR or RTS signal can be used to generate a reset. Please use a 1:1 cable for PC-connection. Connectors X3, X5: CTS RTS DSR © Fujitsu Microelectronics Europe GmbH - 25 - FMEMCU-UG-960010-11...
  • Page 26: Lin"A", Lin"B" Interface Connector (X6, X8)

    N1 can be removed. Instead of the user-LEDs an alphanumeric LC-Display (optional) can be connected. The following control signals are provided: VCC GND Port 06_7 06_6 06_5 06_4 06_3 06_2 06_1 06_0 FMEMCU-UG-960010-11 - 26 - © Fujitsu Microelectronics Europe GmbH...
  • Page 27: Sk-96320-80Pmc User Guide

    JP21 (LIN A) P00_3 P00_4 JP39 (LIN B) P00_5 JP38 (LIN B) P00_6 P00_7 P09_0 P09_1 P01_0 JP20 (SW4) P01_1 P01_2 JP6 (UARTB/X17) P01_3 JP8 (UARTB/X17) P01_4 P01_5 P01_6 P01_7 P09_2 P09_3 P02_0 © Fujitsu Microelectronics Europe GmbH - 27 - FMEMCU-UG-960010-11...
  • Page 28: Silk-Plot Of The Board

    Pin 79 Pin 1 Pin 80 Pin 2 96F326 Pin 40 Pin 42 4MHz Pin 39 Pin 41 FlashKit Power- MAX3232 Jack MAX3232 CAN”B” UART”B” optional: LCD Reset CAN”A” UART”A” LIN”A” LIN”B” FMEMCU-UG-960010-11 - 28 - © Fujitsu Microelectronics Europe GmbH...
  • Page 29: Revision And Error List

    Revisions – Errors Author 18.04.2007 New document HWe/DGo 18.04.2007 EMDC Design Spec Change < RSTx at pin 57 (former pin 55) < Hand wire RST to pin 57 (required for PCB V1.0) © Fujitsu Microelectronics Europe GmbH - 29 - FMEMCU-UG-960010-11...
  • Page 30: Related Products

    (Tokyo Eletech Corp. http://www.tetc.co.jp/) < HQPACK080SD Header for NQPACK080SD < MB96320 Series < MB96V300B MB96300 Series Evaluation chip < MB96F326RS Flash MCU, MB96320 Series, single-clock < MB96F326RW Flash MCU, MB96320 Series, dual-clock FMEMCU-UG-960010-11 - 30 - © Fujitsu Microelectronics Europe GmbH...
  • Page 31: Information In The Www

    Microcontrollers (8-, 16- and 32bit), Graphics Controllers Datasheets and Hardware Manuals, Support Tools (Hard- and Software) http://mcu.emea.fujitsu.com/ Power Management Products http://www.fujitsu.com/emea/services/microelectronics/powerman/ Media Products: SAW filters, acoustic resonators and VCOs http://www.fujitsu.com/emea/services/microelectronics/saw/ For more information about FUJITSU MICROELECTRONICS http://www.fujitsu.com/emea/services/microelectronics/ © Fujitsu Microelectronics Europe GmbH - 31 - FMEMCU-UG-960010-11...
  • Page 32: China-Rohs Regulation

    “Year”. FMEMCU-UG-960010-11 - 32 - © Fujitsu Microelectronics Europe GmbH...
  • Page 33 X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T11363-2006. • Data listed in the table represents best information available at the time of publication © Fujitsu Microelectronics Europe GmbH - 33 - FMEMCU-UG-960010-11...
  • Page 34: Recycling

    According to the European WEEE-Directive and its implementation into national laws we take this device back. For disposal please send the device to the following address: Fujitsu Microelectronics Europe GmbH Warehouse/Disposal Monzastraße 4a 63225 Langen FMEMCU-UG-960010-11 - 34 - © Fujitsu Microelectronics Europe GmbH...
