Summary of Contents for Prodimar MiniTIM
-

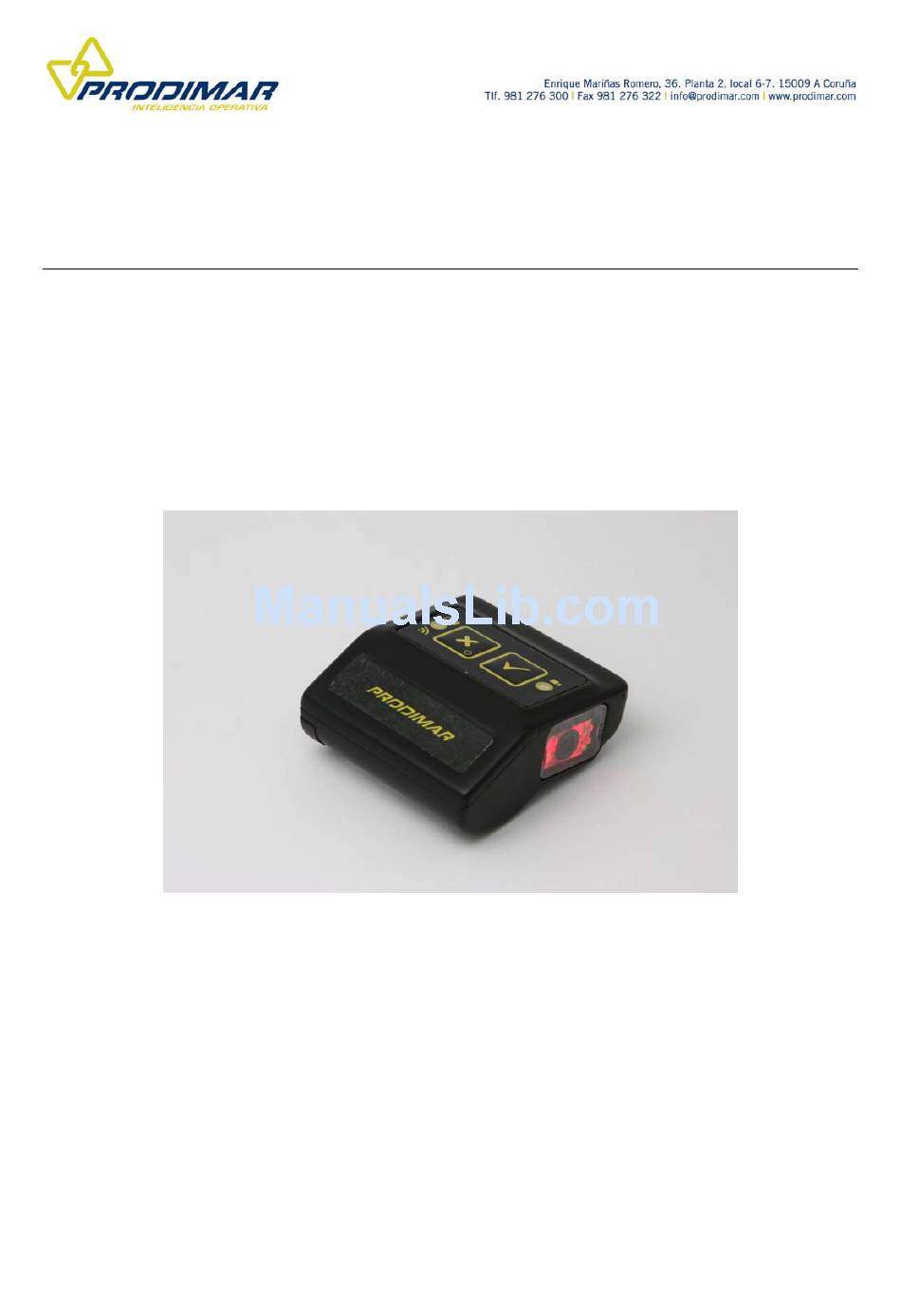

Page 1: Minitim - Bluetooth User Guide
MiniTIM – Bluetooth user guide Rev. 1.0 1 de 14... -
Page 2: Table Of Contents
About keys and leds ........................7 Getting started ..........................8 Switching on the MiniTIM ....................8 MiniTIM connection to a remote device ................8 Scanner Bluetooth operation ......................9 APPENDIXES ........................... 10 APPENDIX A – CONFIGURATION THROUGH BARCODES ........10 Operational modes ........................ -
Page 3: Relation Of Changes
2 Relation of changes. Checking Date Modifications Feb 26th 2010 Initial version 3 de 14... -
Page 4: About Minitim
3 About MiniTIM MiniTIM is a next generation wearable barcode scanner with Bluetooth communications. The main characteristics of MiniTIM are: Imager scanner: it allows reading both 1D y 2D barcodes in any position. Proximity detection. Movement detection (accelerometer). Bluetooth v2.0 connections. -
Page 5: Operational Modes
Scanner Bluetooth mode. 4.1 Initial mode-Inactivity Once the battery is correctly installed in the MiniTIM, the device is in a initial suspension mode. In this state, the MiniTIM, with a minimal battery comsuption, doesn’t show any visual activity. To start operational mode it is necessary to long press the “X”... -
Page 6: Scanner Bluetooth Operational Mode
Note #2: This mode allows configuring the scanner only with the codes provided by the device manufacturer. It has no utility for the configuration of parameters for the MiniTIM use. These parameters must be configured during the device starting, as established in the section “Getting started”. -
Page 7: About Keys And Leds
Red blinking: Low battery notification. o Right Led: Permanently in orange color: MiniTIM is sending data to a remote device. Permanently in red color: Fail to send the data due to a Bluetooth connection failure. Once the BT connection is restored the scanned barcode is automatically sent. -
Page 8: Getting Started
MiniTIM parameters if necessary, through a range of special barcodes. Then, MiniTIM, via the left LED, will indicate if it is already connected to a remote device. If there is no connection to a remote device, the LED will flicker in green color. -
Page 9: Scanner Bluetooth Operation
“X” key. Sending the scanned barcode to a remote device. MiniTIM will automatically send the last read barcode to the remote device if this one keeps being connected. If the connection with the remote device is missed during the process: a) The right LED will stay in a permanent red color and the barcode won’t be sent... -
Page 10: Appendixes
8 APPENDIXES 8.1 APPENDIX A – CONFIGURATION THROUGH BARCODES Operational modes Scanner Bluetooth mode. Scanner configuration mode. 10 de 14... -
Page 11: Scanner Activation Modes
Scanner activation modes a. Unit: No Reading enabled: Activation by movement detection. Activation by keystroke. Activation by proximity detection. 11 de 14... - Page 12 b. Combined: Activation by movement detection and keystroke. Activation by movement and proximity detection. Activation by keystroke and proximity detection. Activation by keystroke, movement and proximity detection. 12 de 14...
-
Page 13: Appendix B - Scanner Default Configuration
8.2 APPENDIX B – SCANNER DEFAULT CONFIGURATION The following barcodes enable the device to return to the manufacturer configuration if it is necessary. These barcodes must be scanned in the scanner configuration mode and in the indicated order: 1) Configuring scanner to RS-232 serial port. ) Default configuration: 13 de 14... - Page 14 14 de 14...
