UNPACKING AND ASSEMBLY
ATTACHING THE GUARD

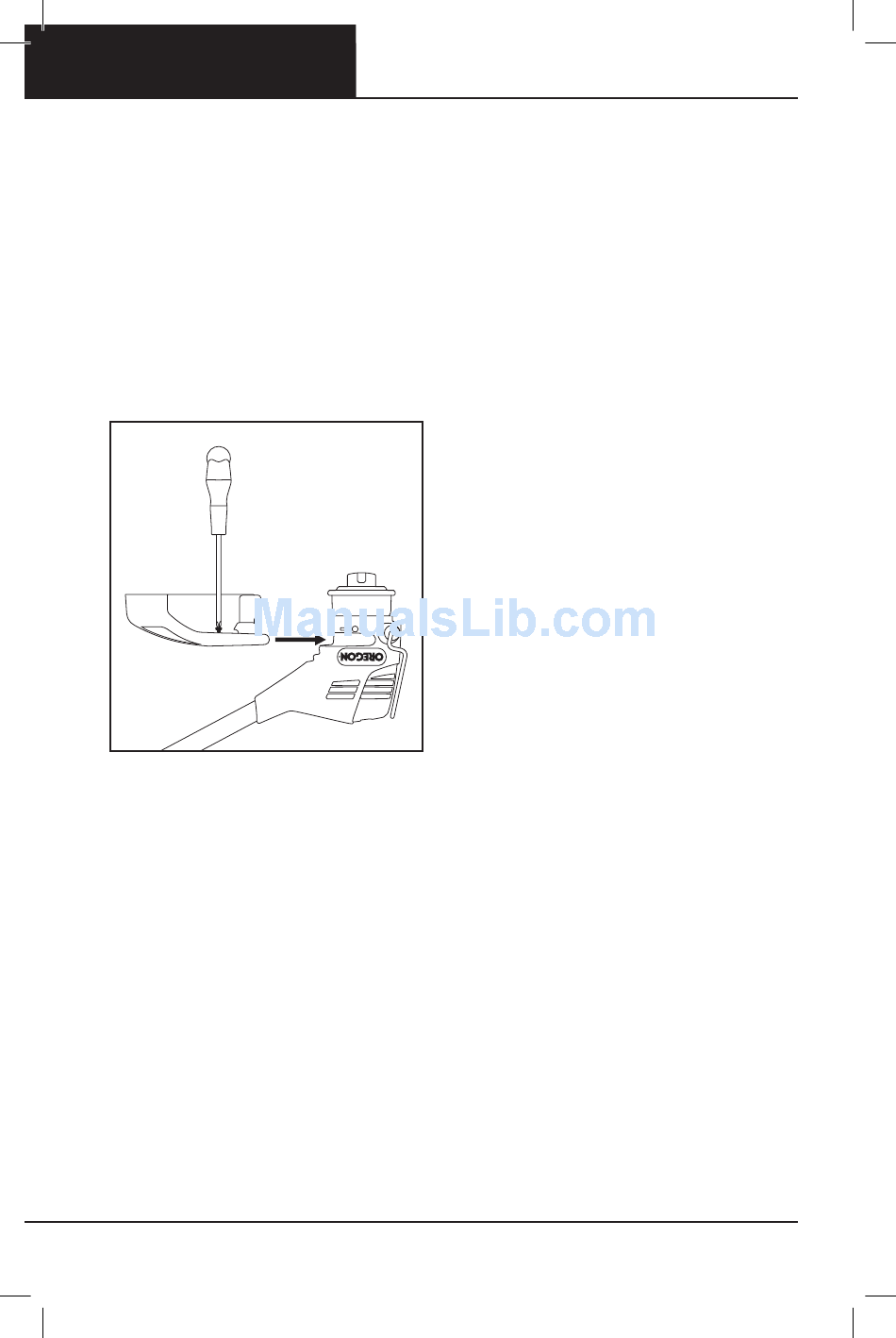

The guard fits onto the slot on the
trimmer motor housing (Fig 5)
• Turn the trimmer/edger upside down
• Slide the guard onto the trimmer until it
clicks into place (1)
• Tighten the screw on the guard (2) to
hold the guard in place
IMPORTANT: INSTALL THE SCREW TO
MAKE SURE THE GUARD STAYS IN
PLACE.
FIG. 5
(2)
16
(1)
OREGON® CORDLESS TOOL SYSTEM
TRIMMER/EDGER MODEL ST250
AE 0213 - F/N 558938
