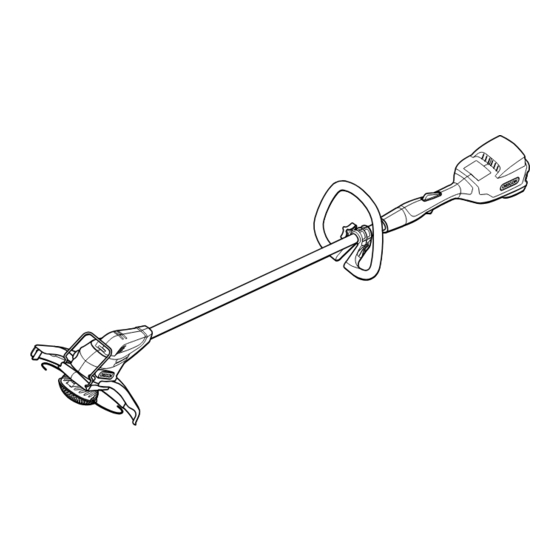

Oregon ST275 Original Instruction Manual

Trimmer/edger

Hide thumbs Also See for ST275:

Original instruction manual (88 pages)

Original instruction manual (512 pages)

Original instruction manual (556 pages)

Table Of Contents

Table of Contents

Quick Links

Summary of Contents for Oregon ST275

Page 1 MODEL ST275 TRIMMER PENTRU GAZON ŞI MARGINE MODEL ST275 ORIGINAL INSTRUKTIONSMANUAL GRÆSTRIMMER/KANTKLIPPER PÔVODNÝ NÁVOD NA POUŽITIE MODEL ST275 KROVINOREZ/VYŽÍNAČ – MODEL ST275 ΑΡΧΙΚΟ ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ ОРИГІНАЛЬНА ІНСТРУКЦІЯ — ПОСІБНИК ΧΟΡΤΟΚΟΠΤΙΚΟ/ΚΟΦΤΗΣ ΑΚΡΩΝ ST275 ТРИМЕР/ПІДРІВНЮВАЧ, МОДЕЛЬ ST275 MANUAL DE INSTRUCCIONES ORIGINAL DESBROZADORA /CORTABORDES MODELO ST275 ALKUPERÄINEN KÄYTTÖOPAS...
Page 2 OREGON® Cordless Tool System TRIMMER/EDGER MODEL ST275 ENGLISH WARNING: READ AND UNDERSTAND ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS MAY RESULT IN ELECTRIC SHOCK, FIRE AND/OR SERIOUS INJURY. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
Page 3: Table Of Contents
OREGON® Cordless Tool System TABLE OF CONTENTS TRIMMER/EDGER MODEL ST275 TABLE OF CONTENTS SYMBOLS AND LABELS TRIMMER/EDGER NAMES AND TERMS PRODUCT IDENTIFICATION SAFETY RULES GENERAL POWER TOOL SAFETY WARNINGS WORK AREA SAFETY ELECTRICAL SAFETY PERSONAL SAFETY POWER TOOL USE AND CARE...
Page 4: Symbols And Labels
OREGON® Cordless Tool System SYMBOLS AND LABELS TRIMMER/EDGER MODEL ST275 SYMBOLS AND LABELS These symbols and labels appear on the trimmer/edger, battery, and charger SYMBOL NAME EXPLANATION CLASS II DESIGNATED DOUBLE INSULATED CONSTRUCTION CONSTRUCTION TOOLS SAFETY ALERT INDICATES THAT THE TEXT THAT FOLLOWS EXPLAINS A SYMBOL DANGER, WARNING, OR CAUTION.
Page 5: Trimmer/Edger Names And Terms
OREGON® Cordless Tool System TRIMMER/EDGER NAMES AND TERMS TRIMMER/EDGER MODEL ST275 TRIMMER/EDGER NAMES AND TERMS Adjustment knob: The knob on the spool Motor housing: The plastic cover at the that is rotated to load the trimmer line end of the shaft that holds the guard and...
Page 6: Product Identification
OREGON® Cordless Tool System PRODUCT IDENTIFICATION TRIMMER/EDGER MODEL ST275 PRODUCT IDENTIFICATION KNOW THE TRIMMER/EDGER TRIGGER LOCK-OUT THROTTLE TRIGGER BATTERY PORT BATTERY PACK FRONT HANDLE BATTERY RELEASE PRODUCT NAME PLATE FRONT HANDLE REAR HANDLE CLAMPING SCREW SHAFT GUARD TRIMMER MOTOR HOUSING...
Page 7: Safety Rules
OREGON® Cordless Tool System SAFETY RULES TRIMMER/EDGER MODEL ST275 INTRODUCTION This trimmer/edger is designed for regular maintenance trimming of grass and weeds using flexible nylon trimmer line. It is not designed to clear heavy brush or for use with any metal cutting attachments. Any other use other than stated is not recommended.
Page 8: Personal Safety
OREGON® Cordless Tool System SAFETY RULES TRIMMER/EDGER MODEL ST275 • Do not overreach. Keep proper footing • If operating a power tool in a damp and balance at all times. This enables location is unavoidable, use a residual current device (RCD) protected supply...
Page 9: Power Tool Use And Care
OREGON® Cordless Tool System SAFETY RULES TRIMMER/EDGER MODEL ST275 POWER TOOL USE AND CARE BATTERY TOOL USE AND CARE • Do not force the power tool. Use the • Recharge only with the charger correct power tool for your application.
Page 10: Trimmer/Edger Safety Warnings
OREGON® Cordless Tool System SAFETY RULES TRIMMER/EDGER MODEL ST275 TRIMMER/EDGER STORAGE, TRANSPORTING, SAFETY WARNINGS AND DISPOSAL STORING THE TRIMMER/EDGER • Remove the battery pack from the trimmer/edger • Clean the trimmer/edger thoroughly • Store in a dry place • Keep out of reach of children or pets...
Page 11: Battery Safety
OREGON® Cordless Tool System SAFETY RULES TRIMMER/EDGER MODEL ST275 STORING THE CHARGER BATTERY SAFETY • Remove battery pack from the charger WARNING: IMPROPER BATTERY • Disconnect charger from power source CARE CAN CAUSE THE BATTERY TO • Store in a dry place...
Page 12: Charger Safety
OREGON® Cordless Tool System SAFETY RULES TRIMMER/EDGER MODEL ST275 IMPORTANT: THIS APPLIANCE IS NOT • Use only the charger specifically INTENDED FOR USE BY PERSONS designed for the battery pack, and (INCLUDING CHILDREN) WITH follow the safety precautions described REDUCED PHYSICAL, SENSORY OR in “Charger Safety”...
Page 13: Unpacking And Assembly
OREGON® Cordless Tool System UNPACKING AND ASSEMBLY TRIMMER/EDGER MODEL ST275 UNPACKING AND ASSEMBLY UNPACKING ASSEMBLY WHAT’S IN THE BOX? The trimmer/edger requires some assembly before use These items ship with the trimmer/edger: DANGER: TO AVOID SERIOUS • Trimmer/Edger PERSONAL INJURY, DO NOT •...
Page 14 OREGON® Cordless Tool System UNPACKING AND ASSEMBLY TRIMMER/EDGER MODEL ST275 ATTACHING THE GUARD • Pull the leading end of the trimmer line until the leading end and the trailing The guard fits onto the slot on the end are about the same length trimmer motor housing (Fig 3) •...
Page 15: Operating The Trimmer/Edger
OREGON® Cordless Tool System OPERATING THE TRIMMER/EDGER TRIMMER/EDGER MODEL ST275 OPERATING THE TRIMMER/EDGER BATTERY PACK AND CHARGER Only use the cord set that was supplied with the charger At first use, verify that the plug type matches the receptacle WARNING: TO REDUCE THE RISK...
Page 16 OREGON® Cordless Tool System OPERATING THE TRIMMER/EDGER TRIMMER/EDGER MODEL ST275 CHARGING THE BATTERY PACK INSERTING AND RELEASING THE BATTERY PACK WARNING: FAILURE TO FOLLOW Only use the OREGON® brand battery PROPER CHARGING PROCEDURES packs specified in these operating MAY CAUSE EXCESSIVE VOLTAGE,...
Page 17: General Operation
OREGON® Cordless Tool System OPERATING THE TRIMMER/EDGER TRIMMER/EDGER MODEL ST275 GENERAL OPERATION FOOTING Stand or walk with both feet on solid ground Do not overreach STOPPING THE TRIMMER/EDGER Release the throttle trigger to stop the trimmer/edger CAUTION: TO REDUCE THE RISK...
Page 18: Trimming
OREGON® Cordless Tool System OPERATING THE TRIMMER/EDGER TRIMMER/EDGER MODEL ST275 CONTROLLING TRIMMER HEAD TRIMMING SPEED The throttle trigger controls the speed at which the trimmer head turns Squeeze the throttle trigger more firmly for faster cutting speed Trimming cuts grass and weeds that are...
Page 19: Edging
OREGON® Cordless Tool System OPERATING THE TRIMMER/EDGER TRIMMER/EDGER MODEL ST275 EDGING In tight spaces, such as against a fence or other barrier, it is acceptable to reverse grip on the rear handle and hold the trimmer/edger in a more vertical position (Fig 18) FIG.
Page 20: Maintenance And Cleaning
OREGON® Cordless Tool System MAINTENANCE AND CLEANING TRIMMER/EDGER MODEL ST275 MAINTENANCE AND CLEANING INSPECT THE HANDLES TRIMMER/EDGER WARNING: SERIOUS PERSONAL INJURY CAN RESULT IF A DAMAGED HANDLE BREAKS DURING USE. MAKE SURE THAT BOTH THE FRONT AND REAR HANDLES ARE CLEAN, DRY, AND ARE FREE OF WARNING: FAILURE TO IDENTIFY CRACKS OR OTHER DAMAGE.
Page 21: Replacing Trimmer Line
OREGON® Cordless Tool System MAINTENANCE AND CLEANING TRIMMER/EDGER MODEL ST275 REPLACING TRIMMER LINE • Insert trimmer line through one hole in the knob (1) and feed it through an eyelet (2) in the side of the trimmer head WARNING: A BATTERY OPERATED...
Page 22: Disassembling The Trimmer Head
OREGON® Cordless Tool System MAINTENANCE AND CLEANING TRIMMER/EDGER MODEL ST275 • Hold the trimmer head with one hand • Remove the spool and the spring and turn the knob counter-clockwise to (Fig 25) wind the line until about 13–15 cm (5–6...
Page 23: Removing And Replacing The Trimmer Head
OREGON® Cordless Tool System MAINTENANCE AND CLEANING TRIMMER/EDGER MODEL ST275 REMOVING AND REPLACING • Line up the tabs on the cover (1) with the slots in the trimmer head (2), and press THE TRIMMER HEAD the cover onto the trimmer head until...
Page 24: Sharpening The Line Cutting Blade
OREGON® Cordless Tool System MAINTENANCE AND CLEANING TRIMMER/EDGER MODEL ST275 SHARPENING THE LINE • Remove the grass wrap protector from the trimmer head (Fig 31) CUTTING BLADE It is recommended that an OREGON® FIG. 31 Service Dealer sharpen the line cutting...
Page 25: Correcting Grass Bind
OREGON® Cordless Tool System MAINTENANCE AND CLEANING TRIMMER/EDGER MODEL ST275 CORRECTING GRASS BIND BATTERY PACK CAUTION: A BATTERY OPERATED WARNING: THERE ARE NO TOOL WITH THE BATTERY PACK USER SERVICEABLE PARTS INSIDE INSERTED IS ALWAYS ON AND CAN THE BATTERY PACK. DO NOT START ACCIDENTALLY.
Page 26: Troubleshooting
OREGON® Cordless Tool System TROUBLESHOOTING TRIMMER/EDGER MODEL ST275 TROUBLESHOOTING Use this table to see possible solutions for possible problems with the trimmer/ edger. If these suggestions do not solve the problem, see “Warranty and service” . SYMPTOM POSSIBLE CAUSE RECOMMENDED ACTIONS Battery discharged Recharge.
Page 27 OREGON® Cordless Tool System TROUBLESHOOTING TRIMMER/EDGER MODEL ST275 SYMPTOM POSSIBLE CAUSE RECOMMENDED ACTIONS This may occur when the trimmer/edger is Battery pack over/under run continuously or exposed to high ambient temperature protection temperatures. Allow the battery pack to reach the is activated acceptable temperature range before charging.
Page 28: Specifications And Components
OREGON® Cordless Tool System SPECIFICATIONS AND COMPONENTS TRIMMER/EDGER MODEL ST275 SPECIFICATIONS AND COMPONENTS REPLACEMENT COMPONENTS PART NUMBER 15 m (50 ft) 566846 TRIMMER LINE EU/UK 126 m (413 ft) 566847 2.0 mm BIOTRIM+™ 377 m (1237 ft) 566848 1/2 lb donut ≈ 207 ft...
Page 29: Warranty And Service
OREGON® Cordless Tool System WARRANTY AND SERVICE TRIMMER/EDGER MODEL ST275 WARRANTY AND SERVICE WARRANTY SERVICE AND SUPPORT INFORMATION Blount, Inc warrants all registered OREGON® Cordless Tools, Battery Packs, Visit us on the web at and Chargers for a period of two (2) OregonCordless.com for service centre...
Page 30: Ec - Declaration Of Conformity
OREGON® Cordless Tool System EC - DECLARATION OF CONFORMITY TRIMMER/EDGER MODEL ST275 EC - DECLARATION OF CONFORMITY Blount International Inc. 4909 SE International Way, Portland Oregon, 97222 USA DECLARES THAT THE FOLLOWING PRODUCT(S): Battery Powered Trimmer/Edger Brand: OREGON® Model: ST275...
Page 31: Customer Service By Country 510
OREGON® Cordless Tool System CUSTOMER SERVICE BY COUNTRY TRIMMER/EDGER MODEL ST275 CUSTOMER SERVICE BY COUNTRY COUNTRY PHONE EMAIL ADDRESS France 0-800 913086 Info FR@OregonCordless com Germany 0800-180-2167 Info DE@OregonCordless com 0-800-098-8536 Info UK@OregonCordless com Sweden 020-100230 Info SE@OregonCordless com Australia...
Page 32 Blount International Inc. 4909 Southeast International Way Portland, OR 97222-4679 OregonCordless.com...
