Installation using Outdoor Kit (BTOK)

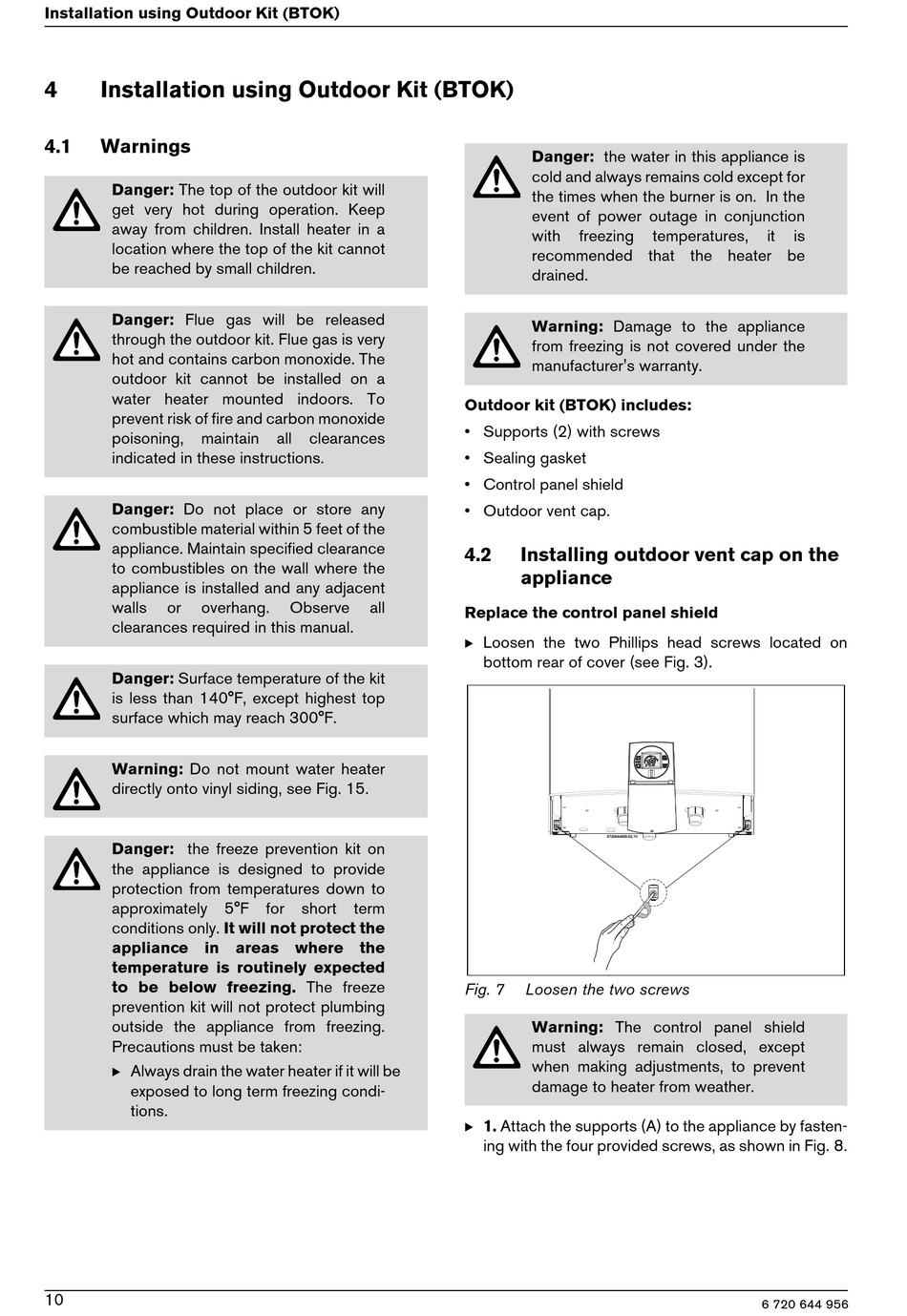

4 Installation using Outdoor Kit (BTOK)
4.1 Warnings
Danger: The top of the outdoor kit will
get very hot during operation. Keep
away from children. Install heater in a
location where the top of the kit cannot
be reached by small children.
Danger: Flue gas will be released
through the outdoor kit. Flue gas is very
hot and contains carbon monoxide. The
outdoor kit cannot be installed on a
water heater mounted indoors. To
prevent risk of fire and carbon monoxide
poisoning, maintain
indicated in these instructions.
Danger: Do not place or store any
combustible material within 5 feet of the
appliance. Maintain specified clearance
to combustibles on the wall where the
appliance is installed and any adjacent
walls or overhang.
clearances required in this manual.
Danger: Surface temperature of the kit
is less than 140°F, except highest top
surface which may reach 300°F.
Warning: Do not mount water heater
directly onto vinyl siding, see Fig. 15.
Danger: the freeze prevention kit on
the appliance is designed to provide
protection from temperatures down to
approximately 5°F for short term
conditions only. It will not protect the
appliance in areas where the
temperature is routinely expected
to be below freezing. The freeze
prevention kit will not protect plumbing
outside the appliance from freezing.
Precautions must be taken:
B Always drain the water heater if it will be
exposed to long term freezing condi-
tions.
10
all clearances
Observe all
Danger: the water in this appliance is
cold and always remains cold except for
the times when the burner is on. In the
event of power outage in conjunction
with freezing
recommended that the heater be
drained.
Warning: Damage to the appliance
from freezing is not covered under the
manufacturer's warranty.
Outdoor kit (BTOK) includes:
• Supports (2) with screws
• Sealing gasket
• Control panel shield
• Outdoor vent cap.
4.2 Installing outdoor vent cap on the
appliance
Replace the control panel shield
B Loosen the two Phillips head screws located on
bottom rear of cover (see Fig. 3).
6720644956-02.1V
Fig. 7 Loosen the two screws
Warning: The control panel shield
must always remain closed, except
when making adjustments, to prevent
damage to heater from weather.
B 1. Attach the supports (A) to the appliance by fasten-
ing with the four provided screws, as shown in Fig. 8.
temperatures, it is
6 720 644 956
