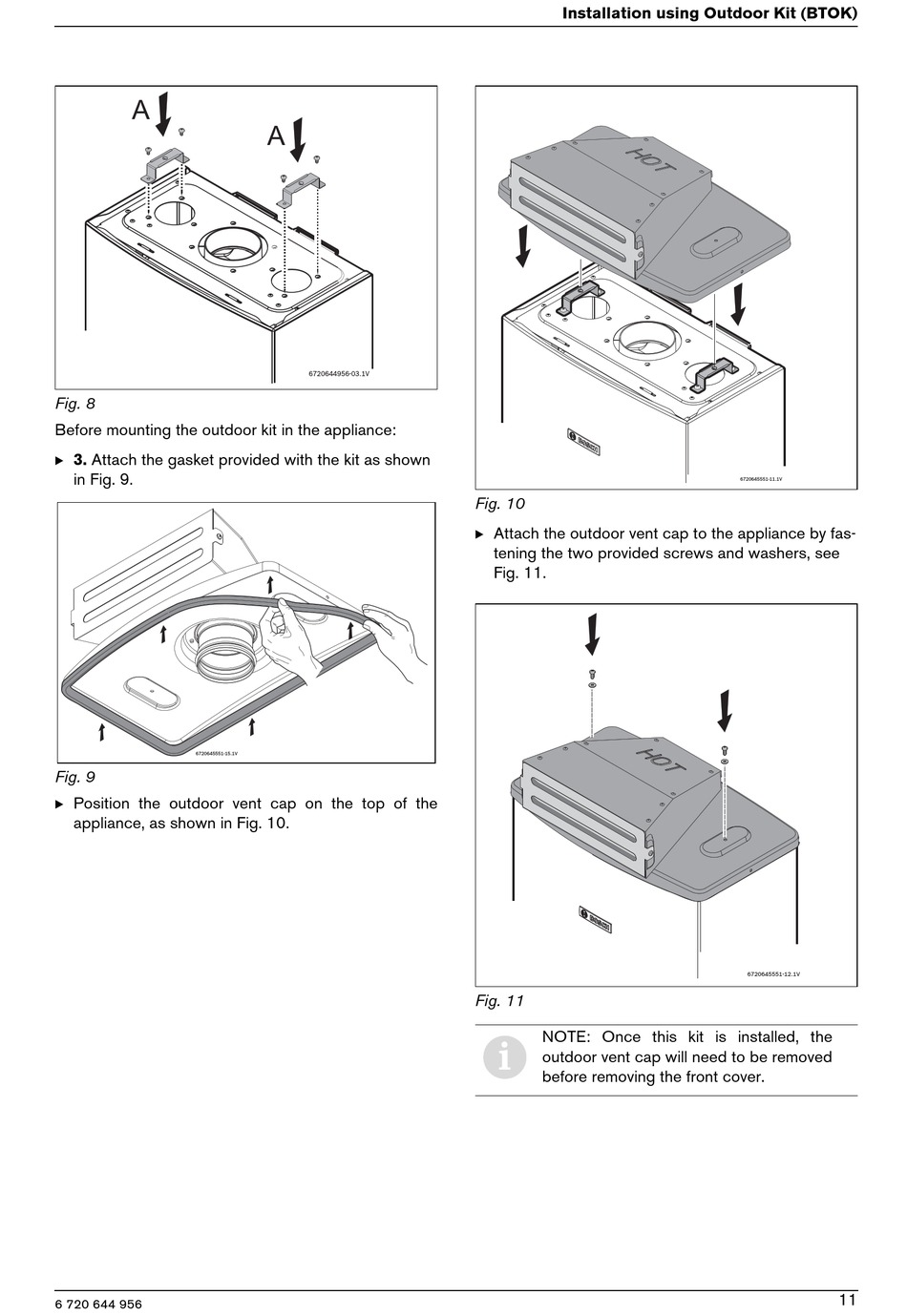

Fig. 8

Before mounting the outdoor kit in the appliance:

B 3. Attach the gasket provided with the kit as shown

in Fig. 9.

6720645551-15.1V

Fig. 9

B Position the outdoor vent cap on the top of the

appliance, as shown in Fig. 10.

6 720 644 956

6720644956-03.1V

Installation using Outdoor Kit (BTOK)

Fig. 10

B Attach the outdoor vent cap to the appliance by fas-

tening the two provided screws and washers, see

Fig. 11.

Fig. 11

NOTE: Once this kit is installed, the

outdoor vent cap will need to be removed

before removing the front cover.

6720645551-11.1V

6720645551-12.1V
