Instructions for the installer
3.2

pACkAGING

The ARES Tec boiler is supplied assembled in a box on a pallet.
Once the two straps have been removed, lift the box
off from the top and make sure the contents are intact.
Packaging materials (cardboard box, straps, plastic bags,
etc.) constitute a potential hazard and must be kept
out of the reach of children.
Alpha will not be held liable in case of damage caused
to people, animals or property due to failure to observe
the above.
C
B
Model A (mm)
440 1263
550 1531
660 1531
770 1799
900 1799
Alpha ARES Tec 440 - 900
A
Gross
B (mm) C (mm)
Weight (kg)
1120 1515 585
1120 1515 643
1120 1515 707
1120 1515 806
1120 1515 858

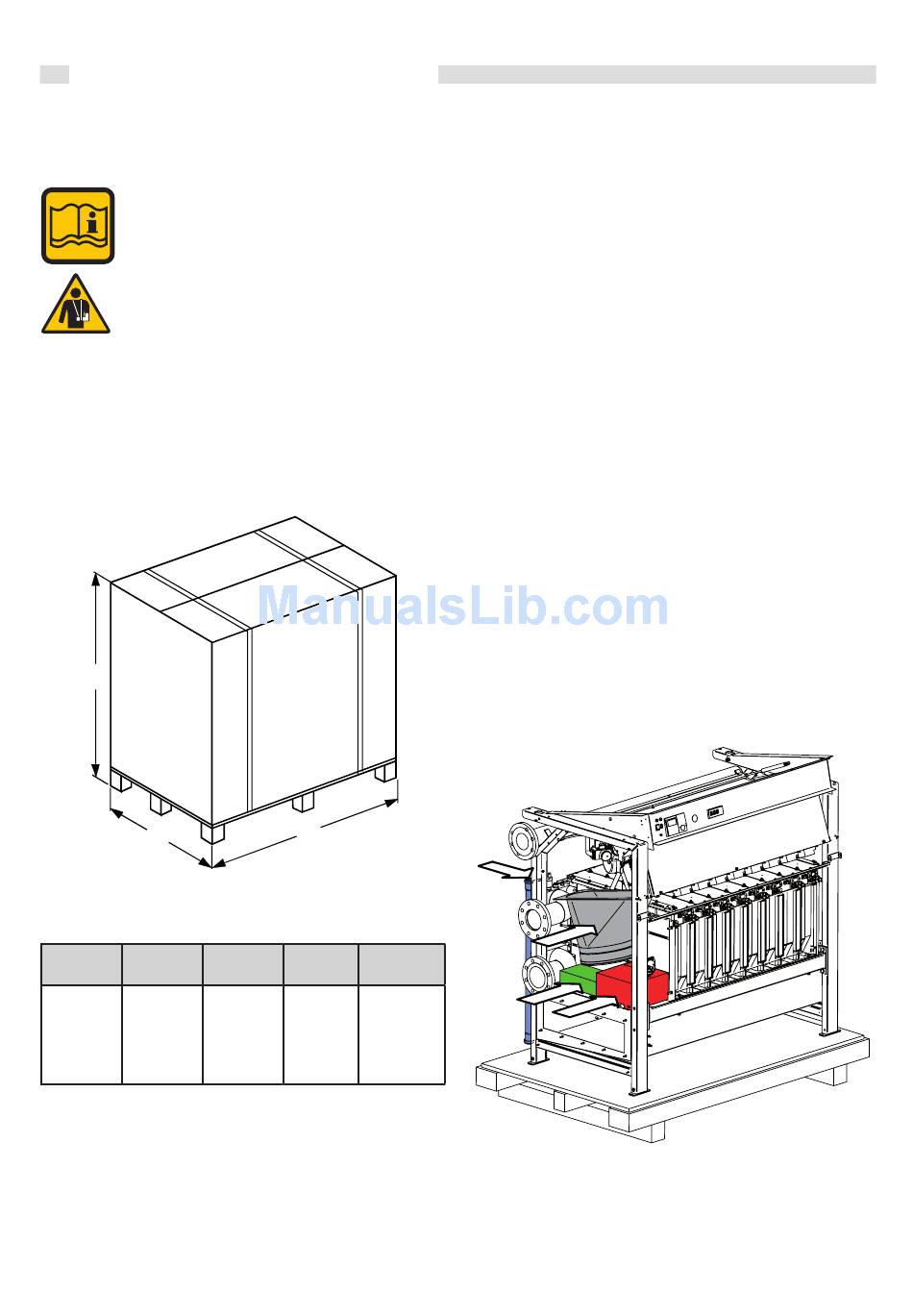

Contents of pack.
on the left side of the boiler:
• The flue exhaust manifold.
• A cardboard box containing:
• Gasket between pan and terminal.
• Collar gasket (Ø 250) Ø 300.
• Two bends + 1 x tee + plastic cap for condensate drain.
• Screws required to secure the flue terminal.
• Sensors: external, flow, storage tank.
• Flue inspection cap.
• Kit of resistances.
• Plate and cable clamp for power output.
• A cardboard box containing:
• Flanges.
Inside the rear side of the casing:
• Condensate drain trap pipes (1 m).
Above the boiler cover:
• A plastic bag containing:
• Installation and servicing instructions.
• System manager instructions handbook.
• TGC control unit user handbook.
• Warranty certificate.
• Hydraulic test certificate.
• Control unit handbook.
• Spare parts list.
• Support pins (for burner service mode).
position of contents
