Alpha E-Tec Plus 28 Installation And Servicing Instructions

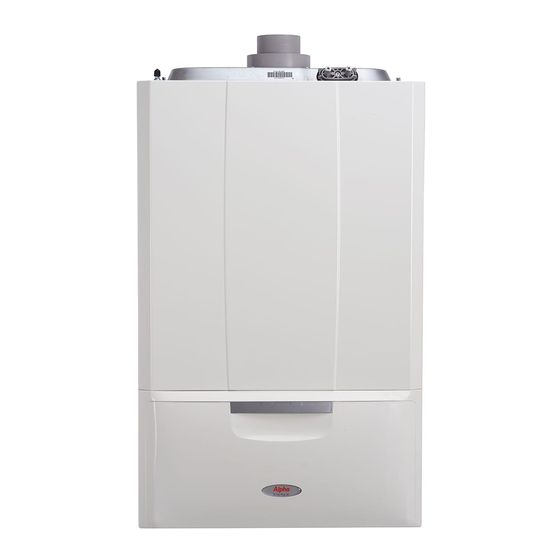

Wall mounted, fan assisted, room sealed, gas fired, high efficiency condensing combination boiler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Installation and Servicing
E-Tec Plus 28 and 33
Wall Mounted, Fan Assisted, Room Sealed,
Gas Fired, High Efficiency Condensing Combination Boiler
These instructions have been carefully prepared but we reserve the right
to alter the specification at any time in the interest of product improvement.
© Alpha Therm Limited 2018.
Instructions
For Technical help or for Service call ...
ALPHA HELPLINE Tel: 0344 871 8764
website: www.alpha-innovation.co.uk
Nepicar House, London Road,
Wrotham Heath, Sevenoaks,
Kent TN15 7RS
Alpha E-Tec Plus 28
Alpha E-Tec Plus 33
Set for use with Natural Gas
Leave these instructions with the User
G.C. No. 47 532 77
G.C. No. 47 532 78
Part No. 1.042373 rev. ST.003780/000
0918/D387
