2.3

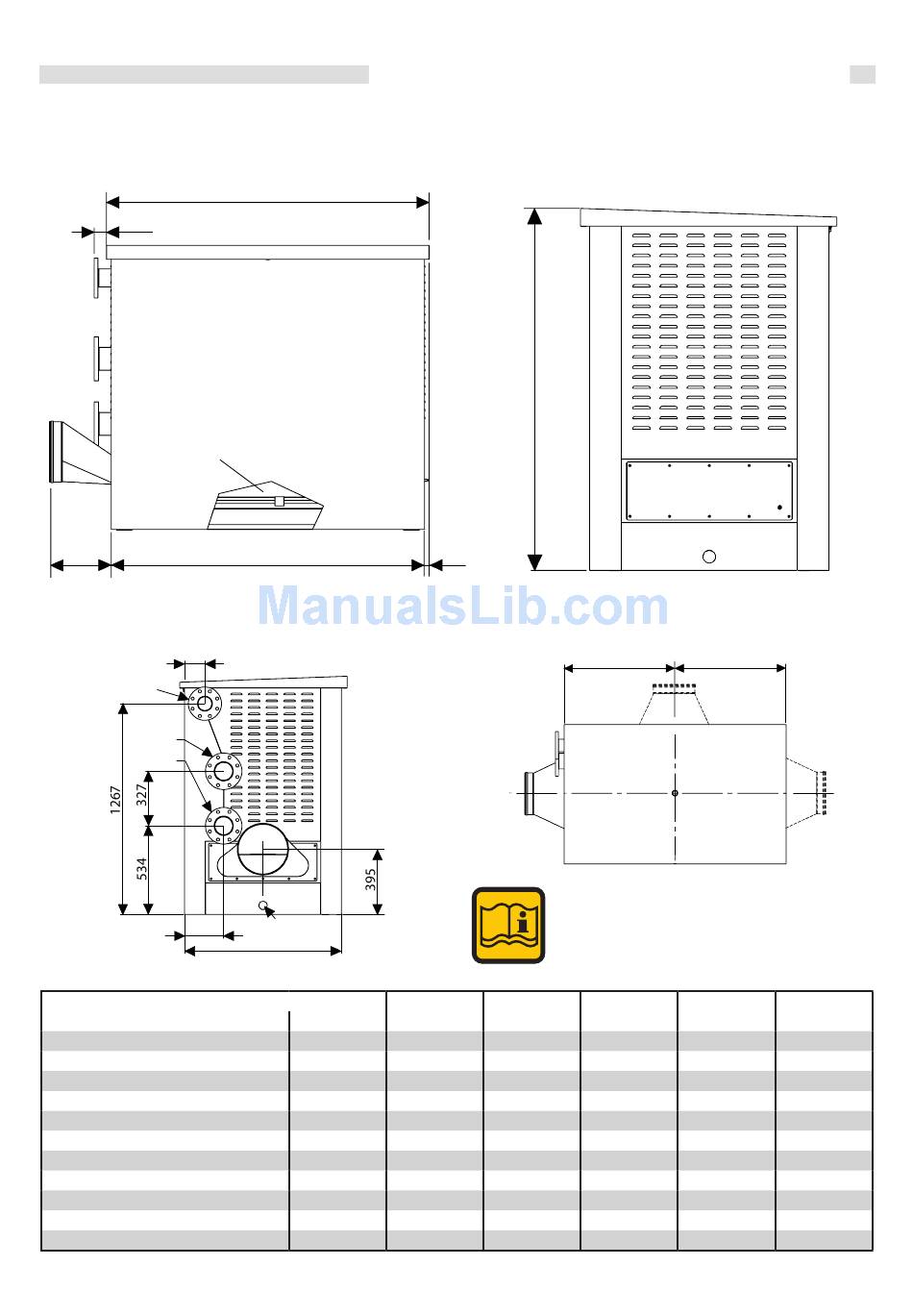

DIMENSIoNS

62.5
Condensate drain
287
LEFT SIDE VIEW
122
G
F
R
235
ARES Tec
Dimensions
Heating elements
Height 'H'
Width 'W'
Width 'W1'
Depth
Attachment sizes
Gas fitting 'G'
System flow 'F'
System return 'R'
Flue fitting
Condensate drain
FRONT VIEW
W
W1
Condensate
drain
946
Unit
No. off
mm
mm
mm
mm
mm
mm
mm
mm
mm
Technical data and dimensions
(As supplied, for left side attachments)
H
24
flue outlets:
Left side (supply condition)
Right side
Rear side
440 550
4 5
1448 1448
1087 1355
1039 1307
946 946
80 80
100 100
100 100
250 250
40 40
11
RIGHT SIDE VIEW
TOP VIEW
= =
660 770
6 7
1448 1448
1355 1623
1307 1575
946 946
80 80
100 100
100 100
300 300
40 40
Alpha ARES Tec 440 - 900
900
8
1448
1623
1575
946
80
100
100
300
40
