Alpha E-Tec 25R Installation And Servicing Instructions

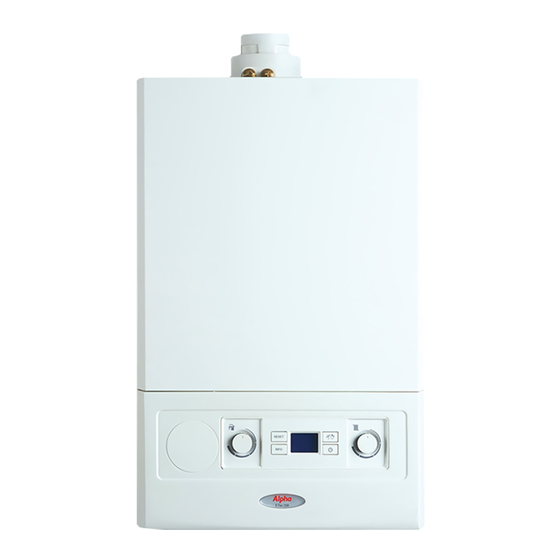

Wall mounted, fan assisted, room sealed, gas fired, high efficiency condensing regular boiler
Hide thumbs Also See for E-Tec 25R:
Table of Contents

Advertisement

Quick Links

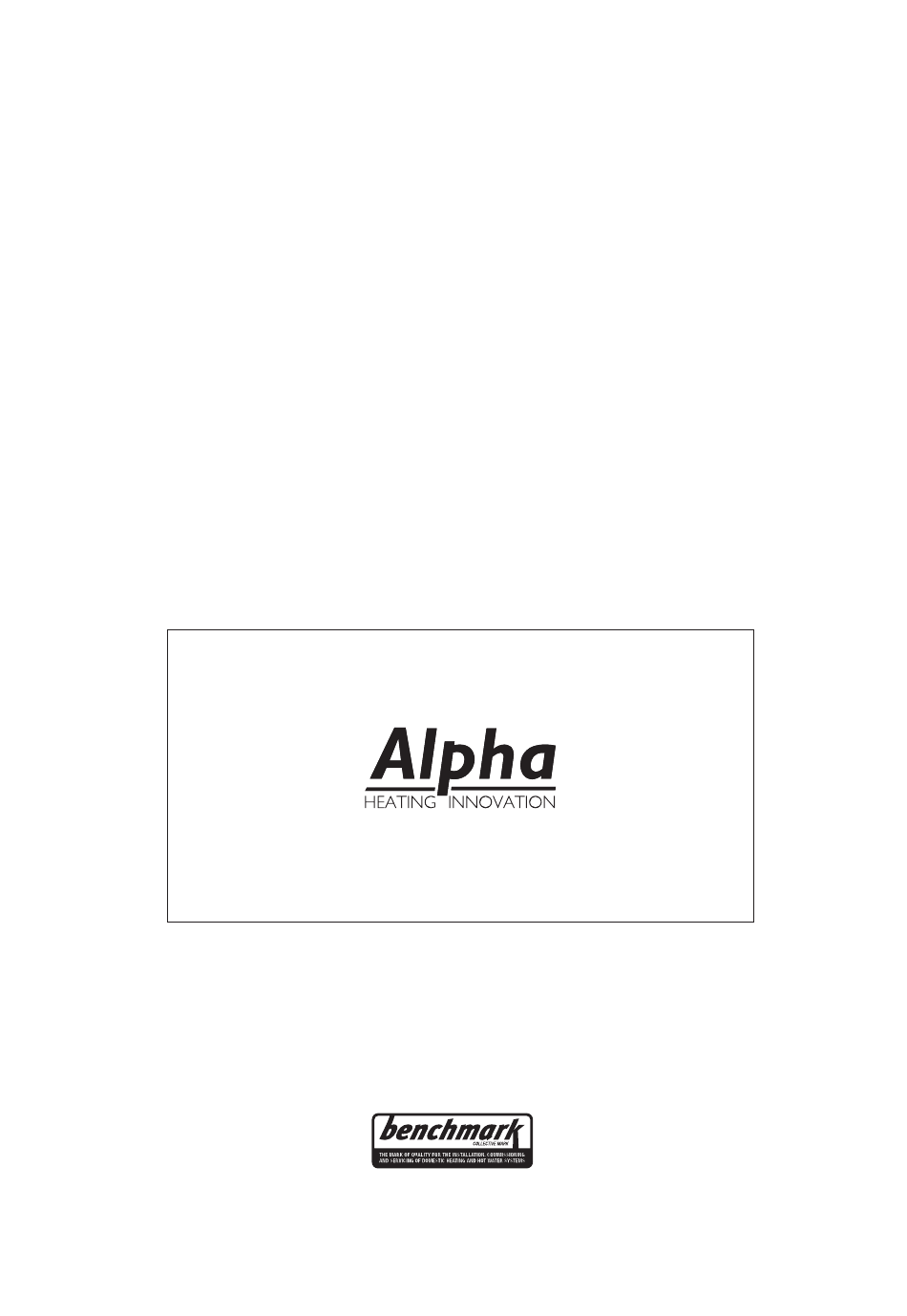

Installation and Servicing
Wall Mounted, Fan Assisted, Room Sealed,
Gas Fired, High Efficiency Condensing Regular Boiler
These instructions have been carefully prepared but we reserve the right
to alter the specification at any time in the interest of product improvement.
© Alpha Therm Limited 2018.
Instructions
E-Tec 25R
For Technical help or for Service call ...
ALPHA HELPLINE Tel: 0344 871 8764
website: www.alpha-innovation.co.uk
Nepicar House, London Road,
Wrotham Heath, Sevenoaks,
Kent TN15 7RS
Set for use with Natural Gas
Leave these instructions with the User
Part No. 1.041526 rev. ST.003864/000
1118/D389
