Summary of Contents for Fujitsu ASBA09LGC

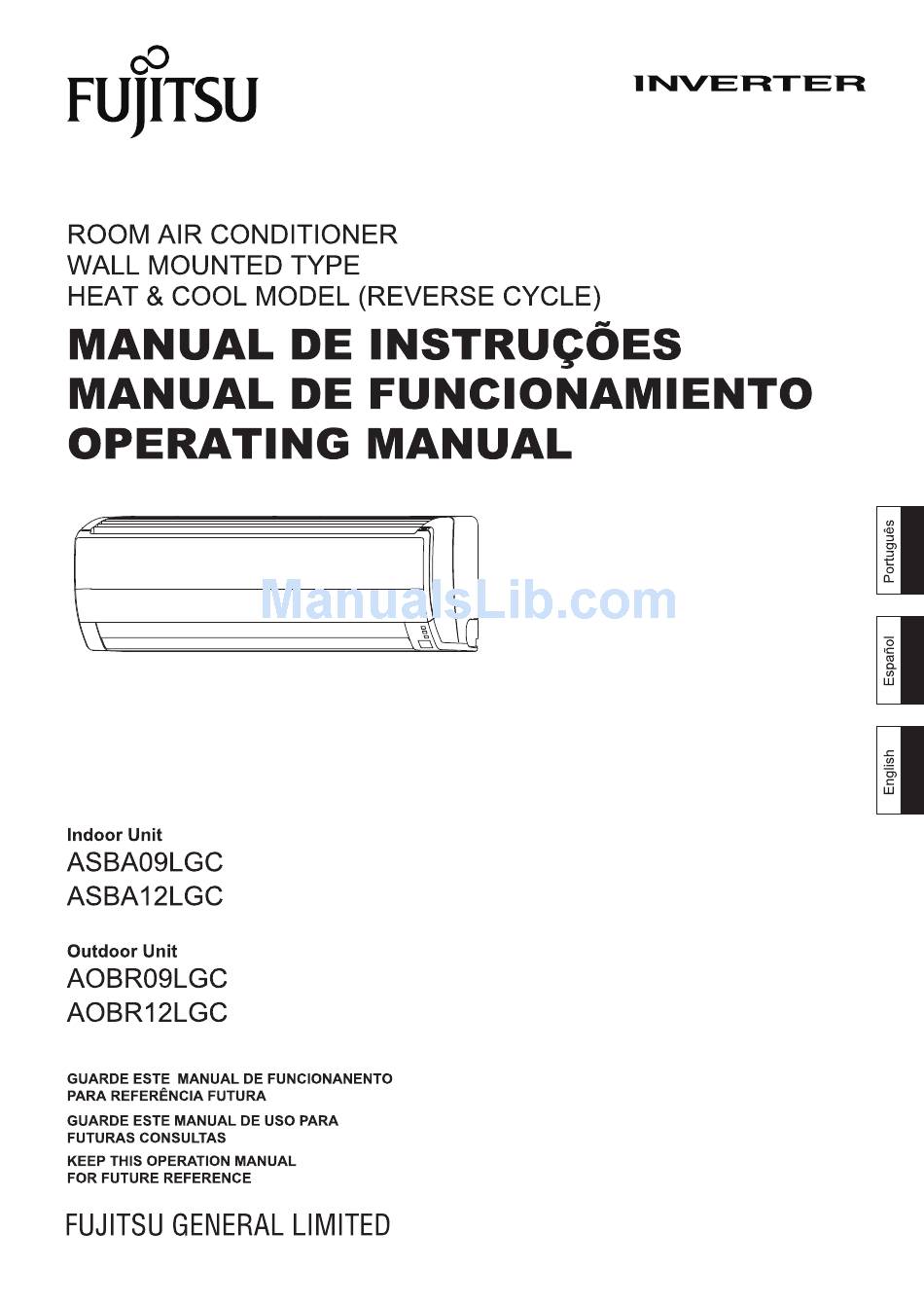

- Page 1 PART NO.9317433044-05...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ........En-1 ECONOMY OPERATION ........En-10 FEATURES AND FUNCTIONS ......En-2 10°C HEAT OPERATION ........En-11 NAME OF PARTS ..........En-3 SWING OPERATION .......... En-11 PREPARATION .............En-5 COIL DRY OPERATION ........En-11 OPERATION ............En-6 MANUAL AUTO OPERATION ......En-12 TIMER OPERATION ..........En-8 CLEANING AND CARE ........En-12 SLEEP TIMER OPERATION .........En-9 TROUBLESHOOTING ........En-14... -
Page 3: Features And Functions
FEATURES AND FUNCTIONS INVERTER SWING OPERATION At the start of operation, a large power is used to bring the room The Air Flow Direction Louvers swings automatically up and quickly to the desired temperature. Afterward, the air conditioner down so that the air speeds to every nook and corner of your automatically switches to a low power setting for economic and room. -
Page 4: Name Of Parts
NAME OF PARTS Fig. 1 Fig.2 OPERATION TIMER COIL DRY Fig.3 Fig. 5 Fig.4 Fig. 6 MODE MODE 10˚c HEAT 10˚c HEAT ECONOMY ECONOMY SWING Fig. 7 To facilitate explanation, the accompanying illustra- tion has been drawn to show all possible indicators; in actral operation, however, the display will only show those indicators appropriate to the current operation. - Page 5 Fig. 1 Indoor Unit Fig. 6 Remote Control Unit 1 Operating Control Panel (Fig. 2) J Signal Transmitter 2 MANUAL AUTO button K MODE button ● L 10°C HEAT button When kept on pressing the MANUAL AUTO button for more than 10 seconds, the forced M SET TEMP.
-
Page 6: Preparation
PREPARATION Turn on the Power CAUTION! ● Take care to prevent infants from acciden- Connect the Power Supply Plug to an electrical outlet; in tally swallowing batteries. ● When not using the Remote Control Unit for the case of a direct line connection, turn on the circuit an extended period, remove the batteries to breaker. -
Page 7: Operation
OPERATION To Select Mode Operation Press the START/STOP button (Fig.6 R). The indoor unit’s OPERATION Indicator Lamp (green) (Fig. 3 5) will light. The air conditioner will start operating. Press the MODE button (Fig.6 K) to select the desired mode. Each time the button is pressed, the mode will change in the following order. - Page 8 OPERATION To Stop Operation Press the START/STOP button (Fig. 6 R). The OPERATION Indicator Lamp (green) (Fig. 3 5) will go out. About AUTO CHANGEOVER Operation ● When AUTO CHANGEOVER operation first selected, the fan will op- AUTO: erate at very low speed for about one minute, during which time the indoor unit detects the room conditions and selects the proper operation mode.
-
Page 9: Timer Operation
TIMER OPERATION Before using the timer function, be sure that the Remote Control Unit is set to the correct current time (☞ P. 4). To Use the ON timer or OFF timer Press the START/STOP button (Fig. 6 R) To Cancel the Timer (if the indoor unit is already operating, proceed to step 2). -
Page 10: Sleep Timer Operation
SLEEP TIMER OPERATION Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operation is stopped. To Use the SLEEP Timer To Cancel the Timer: While the air conditioner is operating or stopped, press the Use the TIMER MODE button to select “CAN- SLEEP button (Fig. -
Page 11: Economy Operation
● Use the air direction adjustments within the ranges shown above. DANGER! ● The vertical airfl ow direction is set automatically as shown, in accordance with the type ● Never place fi ngers or foreign objects inside of operation selected. the outlet ports, since the internal fan operates During Cooling/Dry mode : Horizontal fl... -
Page 12: 10°C Heat Operation
10°C HEAT OPERATION • The room temperature can be maintained at 10°C by pressing the 10°C HEAT button (Fig.6 L) so as to prevent the room temperature from falling too far. To use 10°C HEAT OPERATION While 10˚C HEAT OPERATION is in progress, the following operations/ Press the 10°C HEAT button (Fig.6 L) features cannot be used... -
Page 13: Manual Auto Operation
MANUAL AUTO OPERATION Use the MANUAL AUTO operation in the event the Remote Control Unit is lost or otherwise unavailable. How To Use the Main Unit Controls ● When the air conditioner is operated by the controls on the Main Unit, it will oper- ate under the same mode as the AUTO Press the MANUAL AUTO button (Fig. - Page 14 CLEANING AND CARE 3. Replace the Air Filter and close the Intake Grille. 3. Install the two Air fi lters and close the 1 Align the sides of the air fi lter with the panel, and push in Intake Grille. fully, making sure the two lower tabs are returned properly to their holes in the panel.
-
Page 15: Troubleshooting
CLEANING AND CARE About the Air Cleaning Filters POLYPHENOL CATECHIN AIR CLEANING FILTER (one sheet) ● The Air Cleaning Filters are disposable fi lters. (They can not be washed and reused.) ● For storage of the Air Cleaning Filters, use the fi lters as soon as possible after opening the package. (The air cleaning effect decreases when the fi... - Page 16 TROUBLESHOOTING Symptom Problem See Page NORMAL Airfl ow is weak or stops: ● When Heating operation is started, fan speed is temporarily very FUNCTION low, to allow internal parts to warm up. ● During Heating operation, if the room temperature rises above the —...
-
Page 17: Operating Tips
OPERATING TIPS Operation and Performance Microcomputer-controlled Automatic Defrosting Heating Performance ● When using the Heating mode under conditions of low outdoor ● This air conditioner operates on the heat-pump principle, absorbing heat from outdoor air and transferring that heat to temperature and high humidity, frost may form on the outdoor indoor unit.
