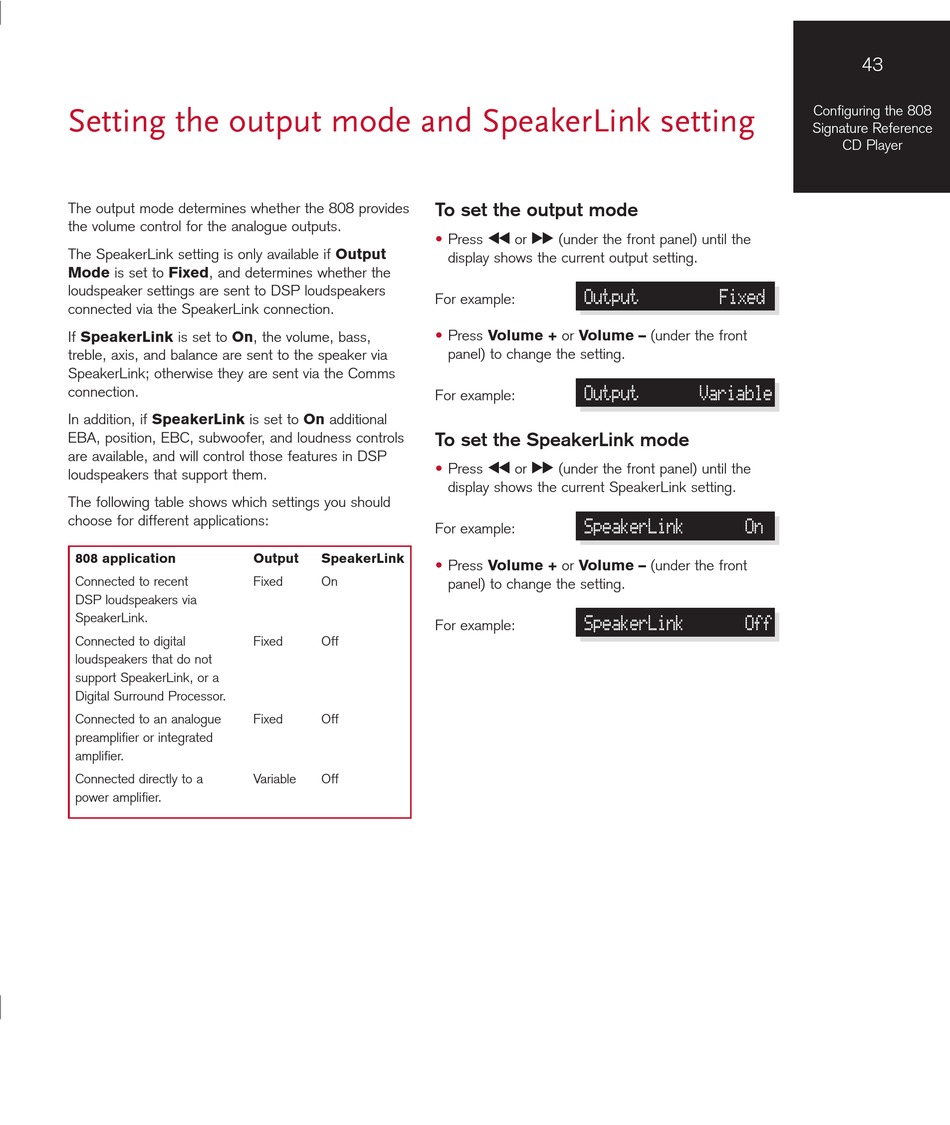

Setting the output mode and SpeakerLink setting

The output mode determines whether the 808 provides
the volume control for the analogue outputs.
The SpeakerLink setting is only available if Output
Mode is set to Fixed, and determines whether the
loudspeaker settings are sent to DSP loudspeakers
connected via the SpeakerLink connection.
If SpeakerLink is set to On, the volume, bass,
treble, axis, and balance are sent to the speaker via
SpeakerLink; otherwise they are sent via the Comms
connection.
In addition, if SpeakerLink is set to On additional
EBA, position, EBC, subwoofer, and loudness controls
are available, and will control those features in DSP
loudspeakers that support them.
The following table shows which settings you should
choose for different applications:
808 application
Connected to recent
DSP loudspeakers via
SpeakerLink.
Connected to digital
loudspeakers that do not
support SpeakerLink, or a
Digital Surround Processor.
Connected to an analogue
preamplifier or integrated
amplifier.
Connected directly to a
power amplifier.
Output SpeakerLink
Fixed On
Fixed Off
Fixed Off
Variable Off
To set the output mode
• Press ¯ or ˘ (under the front panel) until the
display shows the current output setting.
Output
For example:
Press Volume + or Volume – (under the front
•
panel) to change the setting.
Output
For example:
To set the SpeakerLink mode
• Press ¯ or ˘ (under the front panel) until the
display shows the current SpeakerLink setting.
SpeakerLink
For example:
• Press Volume + or Volume – (under the front
panel) to change the setting.
SpeakerLink
For example:
