Installing the 808

Applications

Signature Reference
CD Player

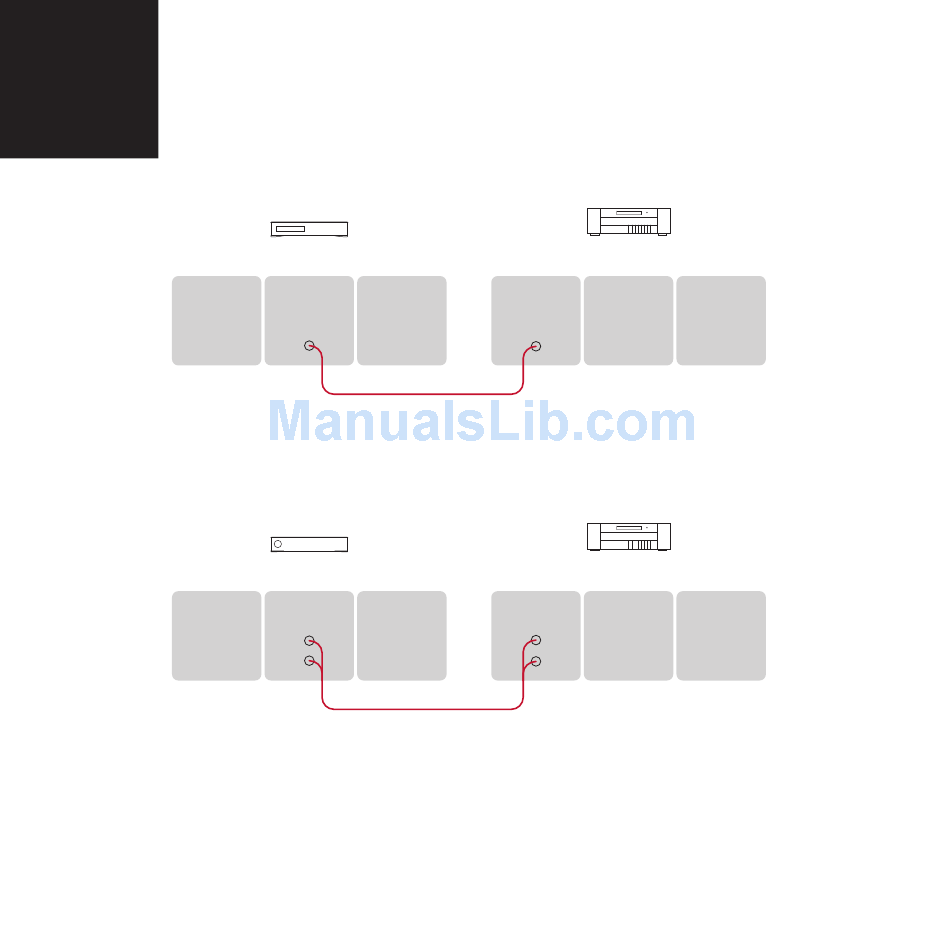

To connect to a digital source (eg DVD player)
You can connect up to two digital coax inputs and two
digital optical inputs to the 808 Signature Reference
CD Player.
To connect to an analogue source (eg TV tuner)
You can connect up to six analogue sources to the 808
Signature Reference CD Player
• Connect the analogue source to one of the analogue
input sockets of the 808, using screened coax phono
leads.
Digital source
DIGITAL
OUT
Digital coax lead
Analogue source
ANALOGUE
OUT
Phono leads
808 Signature Reference CD Player
DIGITAL IN
D1
• Connect the digital source to an appropriate digital
input socket on the 808, using either screened coax
phono leads, or a Toslink lead.
808 Signature Reference CD Player
ANALOGUE IN
A1+A2
