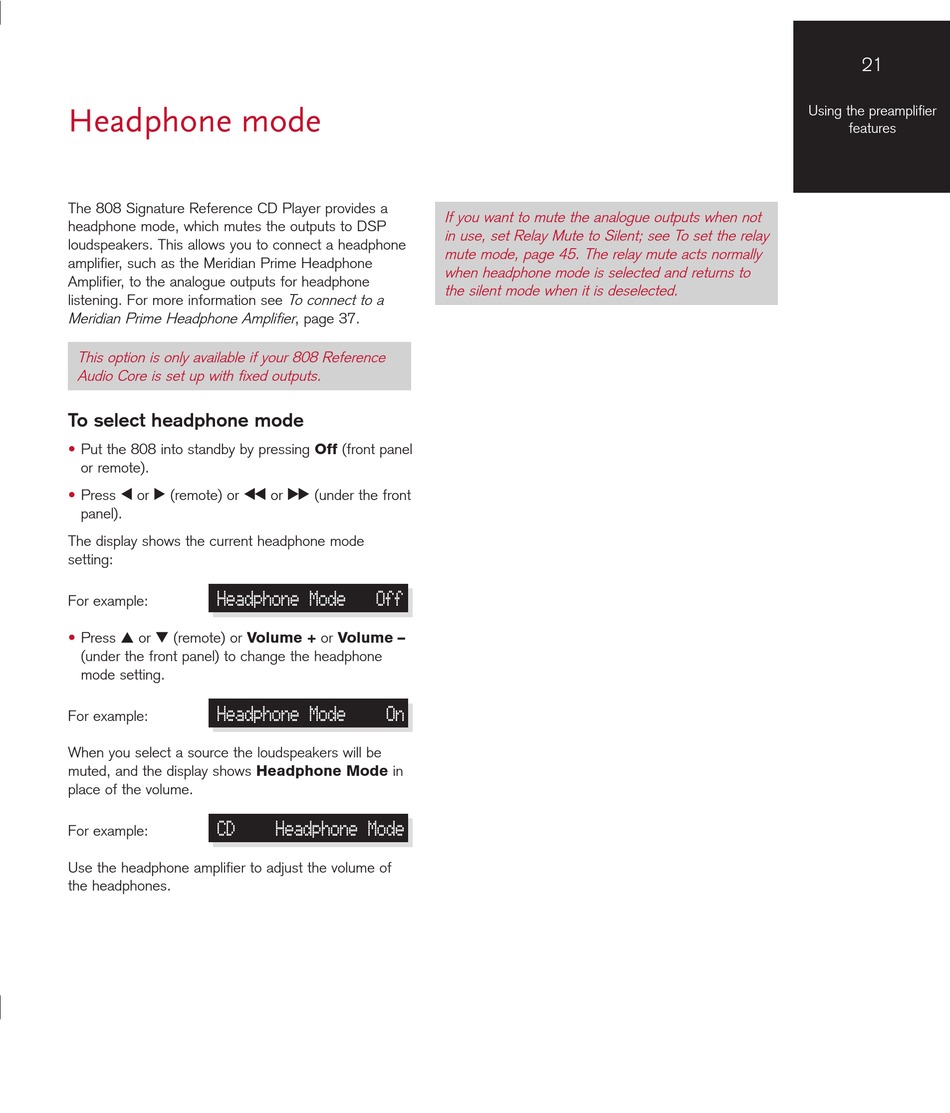

Headphone mode

The 808 Signature Reference CD Player provides a
headphone mode, which mutes the outputs to DSP
loudspeakers. This allows you to connect a headphone
amplifier, such as the Meridian Prime Headphone
Amplifier, to the analogue outputs for headphone
listening. For more information see To connect to a
Meridian Prime Headphone Amplifier , page 37.
This option is only available if your 808 Reference
Audio Core is set up with fixed outputs.
To select headphone mode
• Put the 808 into standby by pressing Off (front panel
or remote).
• Press < or > (remote) or ¯ or ˘ (under the front
panel).
The display shows the current headphone mode
setting:
Headphone Mode
For example:
• Press A or V (remote) or Volume + or Volume –
(under the front panel) to change the headphone
mode setting.
Headphone Mode
For example:
When you select a source the loudspeakers will be
muted, and the display shows Headphone Mode in
place of the volume.
CD
For example:
Use the headphone amplifier to adjust the volume of
the headphones.
If you want to mute the analogue outputs when not
in use, set Relay Mute to Silent; see To set the relay
mute mode, page 45. The relay mute acts normally
when headphone mode is selected and returns to
the silent mode when it is deselected.
Off
On
Headphone Mode
21
Using the preamplifier
features
