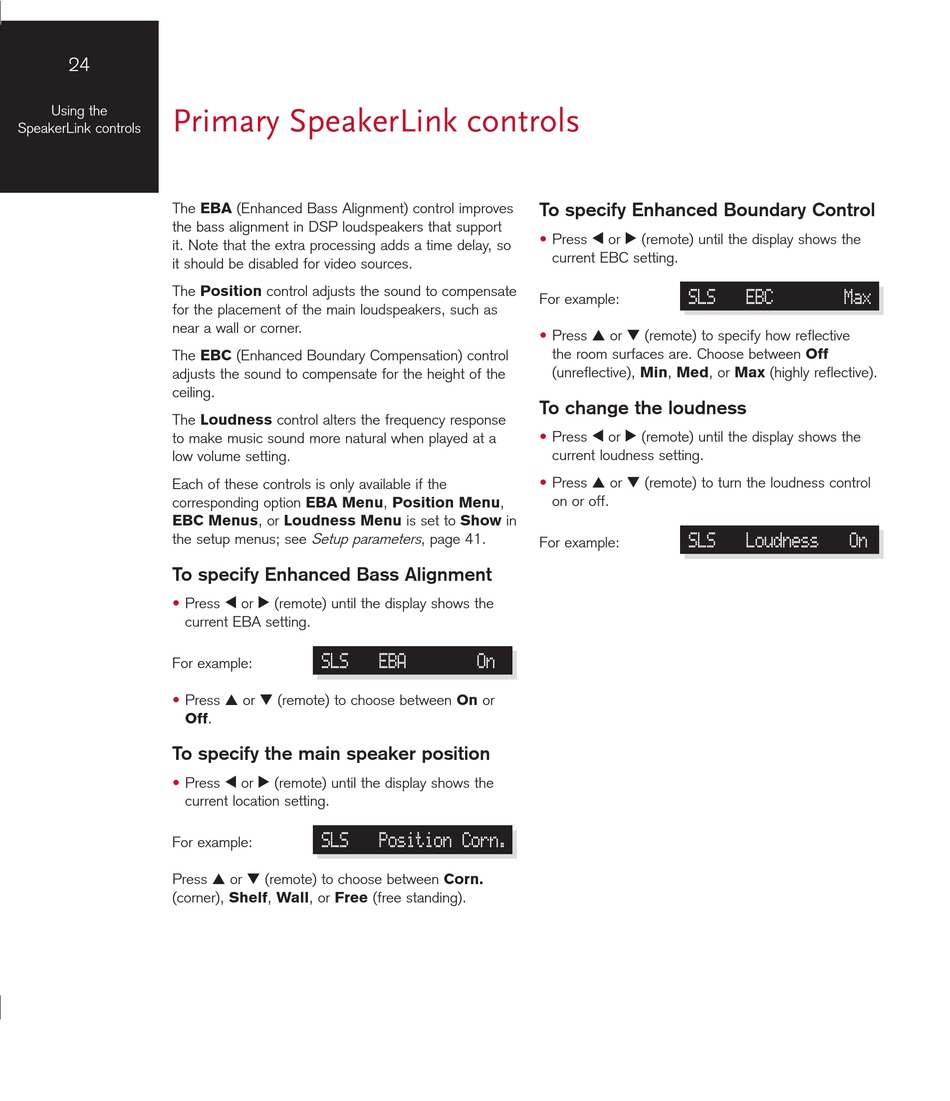

Primary Speakerlink Controls - Meridian 808 Signature Reference User Manual

24
Using the

Primary SpeakerLink controls

SpeakerLink controls
The EBA (Enhanced Bass Alignment) control improves
the bass alignment in DSP loudspeakers that support
it. Note that the extra processing adds a time delay, so
it should be disabled for video sources.
The Position control adjusts the sound to compensate
for the placement of the main loudspeakers, such as
near a wall or corner.
The EBC (Enhanced Boundary Compensation) control
adjusts the sound to compensate for the height of the
ceiling.
The Loudness control alters the frequency response
to make music sound more natural when played at a
low volume setting.
Each of these controls is only available if the
corresponding option EBA Menu, Position Menu,
EBC Menus, or Loudness Menu is set to Show in
the setup menus; see Setup parameters , page 41.
To specify Enhanced Bass Alignment
• Press < or > (remote) until the display shows the
current EBA setting.
For example:
Press A or V (remote) to choose between On or
•
Off.
To specify the main speaker position
• Press < or > (remote) until the display shows the
current location setting.
For example:
Press A or V (remote) to choose between Corn.
(corner), Shelf, Wall, or Free (free standing).
SLS EBA On
SLS Position Corn.
To specify Enhanced Boundary Control
• Press < or > (remote) until the display shows the
current EBC setting.
SLS
For example:
• Press A or V (remote) to specify how reflective
the room surfaces are. Choose between Off
(unreflective), Min, Med, or Max (highly reflective).
To change the loudness
• Press < or > (remote) until the display shows the
current loudness setting.
• Press A or V (remote) to turn the loudness control
on or off.
SLS
For example:
EBC Max
Loudness On
