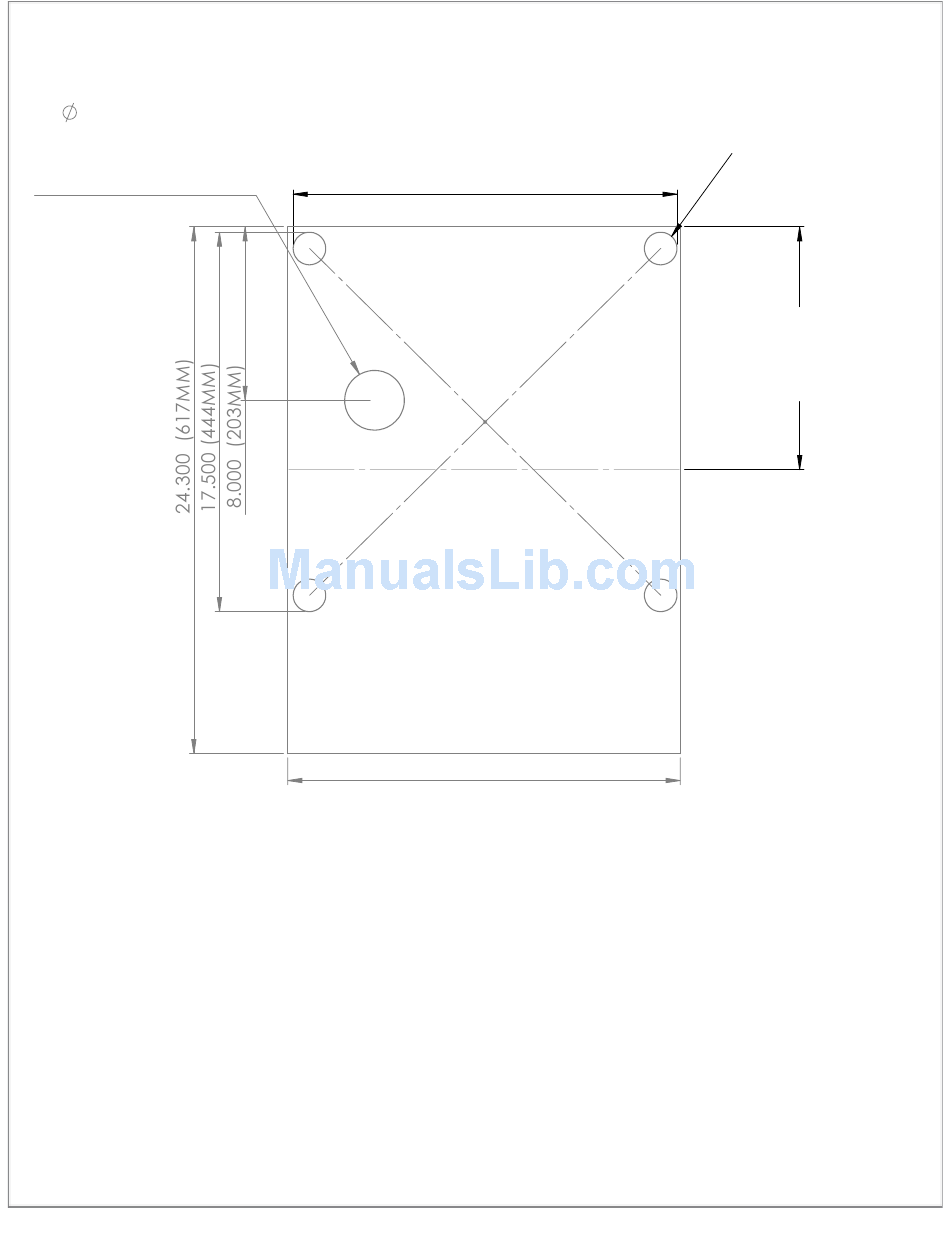

TOP VIEW LOOKING DOWN
2.750 (70MM)
THIS IS THE PLACEMENT
FEET 4 PLACES
OF HOLE FOR DRAIN
17.700 (450MM)
WATER AND POWER
11.200
(285MM)
FROM BACK PANELTO
CLOSED STEAM HANDLE
FRONT OF MACHINE
18.100 (460MM)
HEIGHTS:
TO TOP OF BACK PANEL
12.75" (323.8 MM)
TO TOP OF BREW ACTUATOR
13.4" (340.3 MM)
TO TOP OF STEAM ACTUATOR
13.75" (349.3 MM)
PORTAFILTER TO DRIPTRAY
4.7" (119.4 MM)
