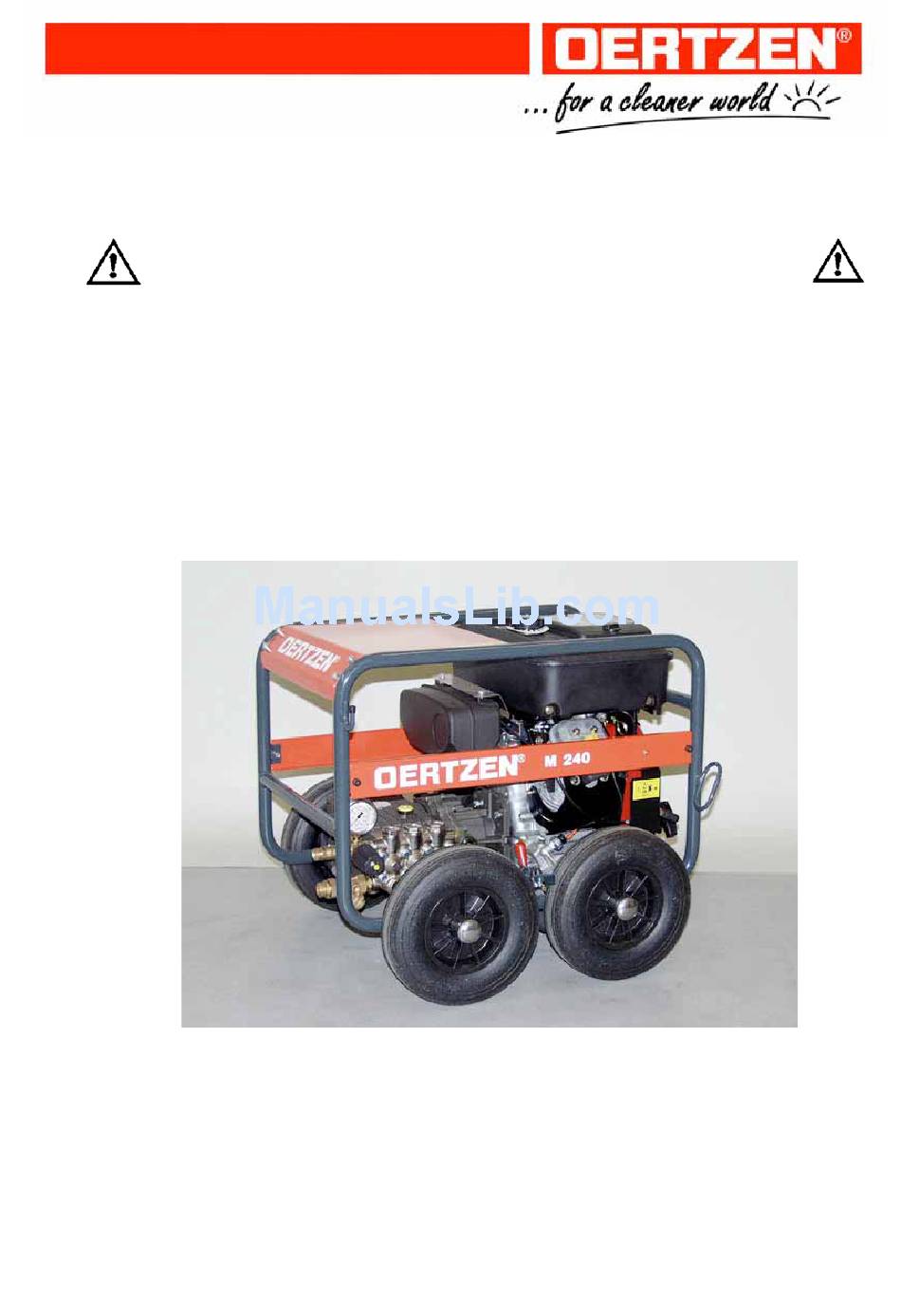

- Page 1 To be read carefully before start-up! Operation Manual M 240 von Oertzen GmbH • Ferdinand-Harten-Str. 10 • 22949 Ammersbek • Tel. +49 40 604110 • Fax +49 40 6041149 www.oertzen-gmbh.de • info@oertzen-gmbh.de...
-
Page 2: Table Of Contents
Table of Content Introduction page Safety Instructions pages 4 – 5 Configuration/Illustration pages 6 – 7 Start-up/Operation/Shut-down pages 8 – 11 Maintenance and Care pages 12 – 14 Technical Data page Trouble-Shooting pages Declaration of Conformity page... -
Page 3: Introduction
Introduction By buying the OERTZEN equipment you have purchased one of the most durable and reliable high pressure cleaners available on the market. Its balanced ratio of water flow (temperature) and working pressure perfectly meets all cleaning requirements. The OERTZEN high pressure cleaners and accessories conform to all European safety regulations which is guaranteed by the CE symbol on the type plate. -
Page 4: Safety Instructions
Unsuitable respectively defective high pressure hoses often cause severe accidents during operation. Therefore high pressure hoses to be carefully inspected before start-up and replaced by original OERTZEN equipment in case of damage. Use of other than original OERTZEN equipment (hand nut marked with OERTZEN), results in expiry of the EC Declaration of Conformity, as well as product liability and warranty. - Page 5 After work the machine to be locked and secured against unauthorized/accidental operation by means of the safety lever. Use of equipment and/or consumables which is/are not delivered or expres- sively approved by OERTZEN results in expiry of the EC Declaration of Conformity, as well as product liability and warranty.
-
Page 6: Configuration/Illustration
Configuration/Illustration The machines of the Mobile series consist of a low speed, oil-greased high pressure inline plunger pump, driven by a low-emission 4-stroke petrol engine in V-design. An oil-greased reduction gear flanged between pump and motor reduces the high pressure pump speed. In order to extend the engine lifetime, an oil shortage cut-out is installed, which switches off the engine in case the oil level drops below specified limits. - Page 7 safety/control valve pressure gauge water inlet/pre-filter high pressure pump high pressure water outlet dip stick/oil filler high pressure pump (see page 13) fuel tank 37 a fuel cock exhaust pipe air filter 47 a dip stick combustion engine speed adjustment choke starter handle override switch...
-
Page 8: Start-Up/Operation/Shut-Down
(sight glass/dip stick), correct oil level of combustion engine (dip stick). Only oil qualities approved by OERTZEN to be used. High pressure pump: special pump oil OERTZEN OSP, reduction gear: special pump oil OERTZEN OSP, combustion engine: OERTZEN special motor oil OSM. - Page 9 Connections Water Supply Connect water inlet (6) of the machine to water source with a clean hose (diameter see table page 9). Before connecting water supply hose, rinse it thoroughly. In case of connection to the potable water distribution, observe DIN 1988 (for momentary connections use a backflow preventer with non- return function and ventilation).
- Page 10 Operation For starting the combustion engine, observe engine manufacturer’s instructions. Never disconnect starter battery when engine is running. In order to ease start-up of the engine, open safety/control valve (3) by turning the hand wheel counter-clockwise for pressure relief purposes. •...
- Page 11 • Thoroughly clean high pressure hose. In case of damage (cuts, abrasions, kinks) replace high pressure hose for safety reasons. • Only original OERTZEN high pressure hoses to be used. Otherwise Declaration of Conformity and warranty will expire. • Reel up high pressure hose properly without any loops.
-
Page 12: Maintenance And Care
Ignoring the required maintenance intervals voids all warranty. Combustion Engine Maintenance instructions of motor manufacturer to be strictly followed. Exclusively OERTZEN OSM motor oil to be used. Use of oil qualities not approved by OERTZEN voids all warranty. Reduction Gear First oil change after 50 operating hours, all further oil changes every 500 operating hours, min. - Page 13 Water Strainer The filter is arranged in the water inlet and must be inspected and cleaned prior to start up. Change strainer, if needed. Supply of polluted water or dirty strainer will cause severe damages on the pump and unloader valve. Frost Protection Proper frost protection of the machine during storage and transport is essential, in order to avoid severe damages and consequently dangers...
-
Page 14: Technical Data
Technical Data Technical Data Mobil 240 Mobil 240 from serial No. 5060201 Water consumption/adjustable 500 – 1020 l/h 500 – 1320 l/h Max. operating pressure 260 bar 260 bar Working pressure/adjustable 240 bar 240 bar Power 14 HP/10,3 kW 14 HP/10,3 kW Fuel consumption at full load 3,8 l/h 3,8 l/h... -
Page 15: Trouble-Shooting
Any repair work must only be carried out by qualified personnel. Only original OERTZEN equipment to be installed, as otherwise warranty and Declaration of Conformity will be void, health and safety standards are not guaranteed.
