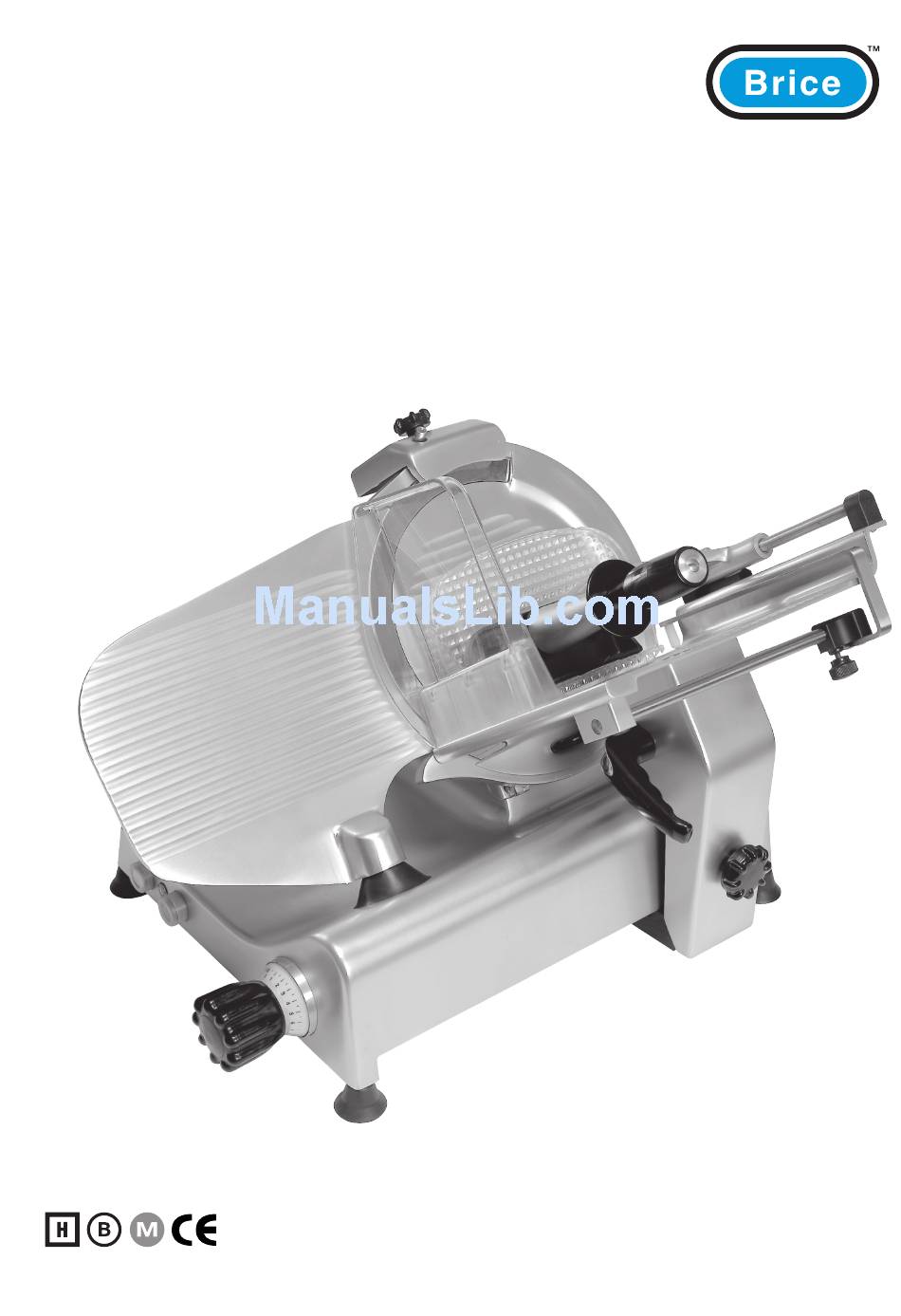

- Page 1 Operation and Safety Manual Model 300IB Gravity-feed Slicers...
-
Page 2: Safety Issues
SAFETY ISSUES 1. NEvEr touch this machine without training and authorisation from your supervisor. 2. Machine MUST BE on solid, level bench/table. 3. Guards MUST BE in place before plugging in and turning on machine. 4. AlwAYS use the three-pronged plug provided. 5. NEvEr use your hand to hold food stuffs in place on the meat table. 6. NEvEr touch the slicer blade when it is rotating. 7. KEEp hands, arms, hair and loose clothing clEAr of all moving parts. 8. Should the slicer jam, SwITcH OFF ANd UNplUg before removing the obstruction. 9. SwITcH OFF ANd UNplUg the machine from its power source before cleaning, sanitizing or servicing. 10. USE ONlY the attachments provided by the manufacturer and designed for this machine. YOUr SAFETY IS OUr prIMArY cONcErN DEC LARAT I ON OF C ONF O RM I T Y is built in conformity with the provisions of: 98/37/C EE... - Page 3 Conventions and Symbols used in this Manual To reduce confusion, and to highlight important points and safety matters, we have established some standard terms and symbols: • “slicer” Whenever we talk about the slicer, we mean the slicer that is covered in this Manual. • “foodstuff” We use the word “foodstuff” to refer to any kind of meat or other food that is usually sliced on a slicer. • “meat table” This is the table (usually on the right side of the slicer) on which you place the foodstuff to be sliced. On gravity-feed slicers the meat table is steeply angled. • “meat grip” The meat grip is the device that holds the foodstuff in position on the meat table. It is usually attached to the meat table and moves with the foodstuff as it is sliced. • “Last Slice device” This device (where fitted) is usually part of the meat grip and is used to hold small and hard- to-handle stubs of processed foodstuffs (particularly meats) so that they can be sliced to the last slice. • “thickness control” This is the mechanism by which you control the slice thickness, and is usually a large rotary control on the front of the machine. It may or may not be illuminated, depending on the individual slicer. • “sharpener” When we talk about the sharpener, we mean a built-in blade sharpening or grinding device that has a grinding stone and, optionally, a finishing stone. 300IB Belt Drive Series Gravity Slicers Introduction ...
- Page 4 Carry OUT aNy prOCeDUre ThaT pLaCeS yOUr haNDS ON Or Near The SLICer BLaDe yOU MUST wear SUITaBLe prOTeCTIVe haND COVerINGS SUCh aS STeeL MeSh GLOVeS TO preVeNT aCCIDeNTaL INjUry frOM The BLaDe. Introduction 300IB Series Belt Drive Gravity Slicers...
- Page 5 2. Power OFF 3. Power indicator 4. Meat table/carriage 5. Pusher/Last Slice Device (LSD) 6. Slice thickness plate 7. Slice thickness control 8. Pusher handle 9. Pusher grip plate 10. Sharpener 11. Finishing stone button 12. Sharpening stone button 13. Carriage lock 14. Pusher lock 15. Pusher plate 16. Blade cover 17. Blade cover handle 18. Blade cover release knob 19. Slice deflector 20. Sharpener locking knob 21. Blade ring guard 22. Meat table pusher handle 23. Product fence 24. Product fence locking knob Dimensions 300IB Belt Drive Series Gravity Slicers Introduction 3...
-
Page 6: Installing The Slicer
1. Make sure that the slicer is switched off by pressing the button at the front of the machine. 2. Ensure that all the supplied guards and blade shields are correctly fitted. 3. Check that the meat table carriage moves easily and that it does not stick at any point along its travel. If the carriage is difficult to move or seems to stick now and then refer to the Maintenance section for instructions on lubrication. 4. Check that the meat grip moves freely along the length of its travel If the meat grip is difficult to move or seems to stick now and then refer to the Maintenance section for instructions on lubrication. 5. Check that the thickness control operates smoothly. Be sure to return it to the zero mark before proceeding. 6. Switch the slicer on by pressing the ON button at the front of the machine. Immediately the thickness control will light up, showing power is on, and the blade will spin in an anti-clock- wise direction. 7. Switch off the machine by pressing the OFF button at the front of the machine. Your slicer is now ready to use. Introduction 300IB Series Belt Drive Gravity Slicers... -
Page 7: Manual Operation
Maintenance section for the correct procedure for blade sharpening. Manual operation Begin using the slicer by returning the thickness control to zero and making sure that the meat tray carriage is pulled to the front of the slicer. 1. Draw the pusher/LSD (5) back from the Slice thickness plate (6) and raise it. 2. Place the product to be sliced on the meat table (4), firmly against the carriage barrier wall closest to the operator, and up against the Slice thickness plate (6). Place the pusher/LSD (5) on top of the product to be sliced. 3. Set the desired thickness of slice using the thickness control (7). 4. Switch the slicer on by pressing the ON button at the front of the machine (1). Immediately the power indicator (3) will light up, showing power is on, and the blade will spin in an anti- clockwise direction. 300IB Belt Drive Series Gravity Slicers Operation ... - Page 8 Operation and Safety Manual ™ 5. Grasp the pusher handle (22) firmly and push the product holder away from you towards the back of the slicer, while pressing the pusher/LSD (5) down onto the product and towards the Thickness plate. Once the slice has been cut, pull the meat table back towards you. 6. Repeat step 5 as often as required to obtain the number of slices needed. 7. When you have finished slicing, make sure that the product holder is pulled to the front of the slicer and switch off the power at the control panel by pressing the OFF button (2) at the front of the machine. Using the Last Slice device Cleanly slicing the last 1 or 2 centimetres of foodstuffs on a slicer without wastage can be difficult. This is particularly the case when slicing packaged foodstuffs with rounded-off ends (or stubs). The Last Slice device overcomes the problem. 1. When the foodstuff is sliced down to the last 1 or 2 centimetres, lift off the pusher/LSD (5) and turn the foodstuff around so that the uncut end of the stub is pressed against the thickness plate (6). 2. Position the pusher/LSD (5) behind the foodstuff so that the spikes of the LSD press into the cut face of the foodstuff. 3. Continue slicing until the remaining foodstuff has been cut. Operation 300IB Series Belt Drive Gravity Slicers...
-
Page 9: Cleaning The Slicer
1. With the carriage and meat table assembly removed, undo the blade cover securing knob (18) and lift the blade cover (16) straight off the blade. 2. Turn the slice deflector (19) to expose the back of the blade. 3. Clean the centre plate with a warm damp cloth. 4. The blade is now completely exposed. Wearing steel mesh protective gloves, wipe down the blade surfaces (front and back) using a warm, damp cloth. 5. Dry off the blade and lightly smear on some protective oil using the cloth supplied. Make sure that you are still wearing the steel mesh glove. 300IB Belt Drive Series Gravity Slicers cleaning ... -
Page 10: Cleaning Schedule
™ 6. Replace the blade cover so that the nut on the underside of the plate engages the blade centre. 7. While pressing down on the centre of the plate push and turn the blade cover securing knob to engage it in the blade cover. Tighten the knob. 8. Replace the meat table and carriage assembly and tighten the securing knob. Make sure that the edge of the meat table sits right up against the blade cover. You may have to push the meat table back to the end of its travel to seat it correctly. The slicer is now clean and ready for use. Cleaning Schedule How frequently the slicer is cleaned will depend on how heavily the machine is used. However, we recommend that you adopt the following cleaning schedule as a MINIMUM requirement to maintain hygiene. After Every After every use half day last use The cleaning schedule Wipe down slicing guide, meat table & centre plate Wipe down all exposed surfaces (no disassembly) Clean all surfaces including blade (disassemble machine) cleaning 300IB Series Belt Drive Gravity Slicers... -
