Summary of Contents for VIA Technologies NAB-7400

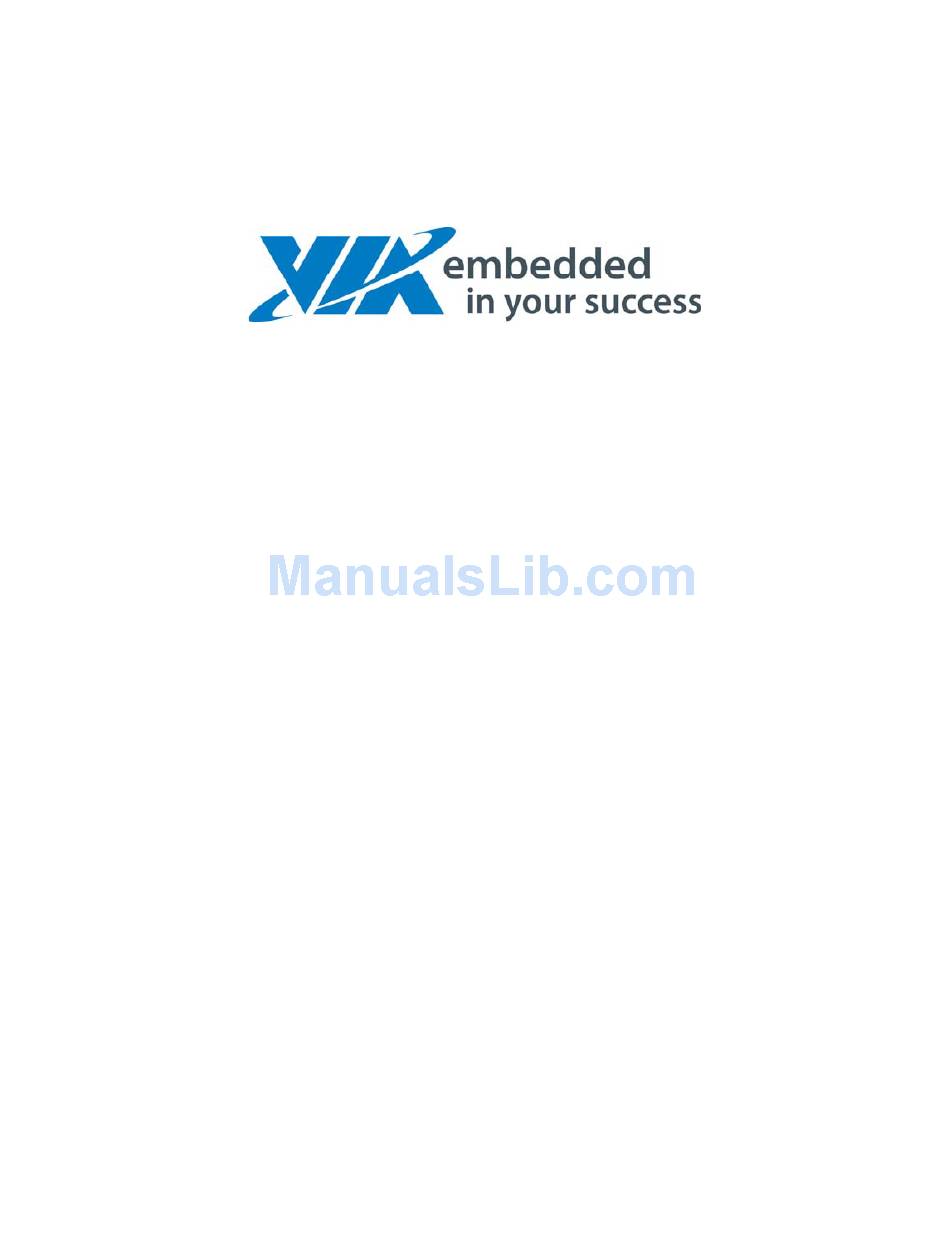

- Page 1 Operating Guide NAB-7400 Mainboard March 9, 2007 Version 1.1...
-
Page 2: Table Of Contents
VIA NAB-7400 Board Dimensions ..............................7 VIA NAB-7400 Height Distribution .............................. 8 Power Consumption ..................................9 VIA NAB-7400 (MAX)................................9 VIA NAB-7400 (MEAN) ................................11 Power Specifications ..................................13 VIA NAB-7400 Microsoft and Linux Driver Support ....................... 14 ..............................14 ICROSOFT RIVER UPPORT ................................14... -
Page 3: Via Nab-7400 Overview
The VIA NAB-7400 also have two mini PCI interface and one 32-bit PCI Golden Finger for expandability options. The VIA NAB-7400 is compatible with a full range of Mini-ITX chassis as well as FlexATX and MicroATX enclosures and power supplies. -
Page 4: Via Nab-7400 Layout
NAB-7400 Operating Guide VIA NAB-7400 Layout March 9, 2007 - 2 - Version 1.1... -
Page 5: Via Nab-7400 Specifications
NAB-7400 Operating Guide VIA NAB-7400 Specifications Model Name - NAB-7400 Processor - VIA C7 NanoBGA2 1.0GHz Processor Chipset - VIA CN700 North Bridge - VT8237R-Series South Bridge System Memory - 1 DDR2 400/533 DIMM socket - Up to 1GB Memory Size... -
Page 6: Via Nab-7400 Processor Skus
NAB-7400 Operating Guide VIA NAB-7400 Processor SKUs The VIA NAB-7400 is available with the following CPU options: • 1.0 GHz VIA C7 NanoBGA2 Processor March 9, 2007 - 4 - Version 1.1... -
Page 7: Via C7 Processor Overview
NAB-7400 Operating Guide VIA C7 Processor Overview The VIA CN700 is designed to enable high quality digital video streaming and DVD playback in a new generation of fanless, small form factor PCs and IA devices. The VIA CN700 features the embedded VIA UniChrome™ Pro AGP MPEG-2 video decoding acceleration,... -
Page 8: Via Nab-7400 I/O Back Panel Layout
NAB-7400 Operating Guide VIA NAB-7400 I/O Back Panel Layout The NAB-7400’s ultra compact 17cm x 17.8cm, integrated design supports all the standard legacy x86 connectivity options as well as PS2 Mouse port, PS2 Keyboard port, COM port, two USB 2.0 ports, and four RJ-45 LAN ports. -
Page 9: Via Nab-7400 Board Dimensions
NAB-7400 Operating Guide VIA NAB-7400 Board Dimensions March 9, 2007 - 7 - Version 1.1... -
Page 10: Via Nab-7400 Height Distribution
NAB-7400 Operating Guide VIA NAB-7400 Height Distribution March 9, 2007 - 8 - Version 1.1... -
Page 11: Power Consumption
NAB-7400 Operating Guide Power Consumption Power consumption tests were carried out comparing the VIA NAB-7400 running with VIA C7 1.0 GHz NanoBGA2 processor. The following tables are a comprehensive breakdown of the NAB-7400 platform’s voltage, amp and wattage values while running common system applications. - Page 12 NAB-7400 Operating Guide E. Run C.C. Winstone 2001 Measured Voltage Measured Amp. Watts 3.234 1.422 4.599 Main Board +3.3V 5.056 2.100 10.618 Main Board +5V 4.961 0.190 0.943 Main Board 5VSB Main Board +12V 12.059 0.083 1.001 Main Board Power Consumption 17.160...
-
Page 13: Via Nab-7400 (Mean)
NAB-7400 Operating Guide VIA NAB-7400 (MEAN) A. Playing DVD – Power DVD 5.0 Measured Voltage Measured Amp. Watts 3.247 1.324 4.299 Main Board +3.3V 5.029 1.569 7.891 Main Board +5V 4.948 0.186 0.920 Main Board 5VSB 12.033 0.067 0.806 Main Board +12V Main Board Power Consumption 13.916... - Page 14 NAB-7400 Operating Guide F. S3 Mode – Funvtion Not Supported Measured Voltage Measured Amp. Watts Main Board +3.3V 0.000 Main Board +5V 0.000 Main Board 5VSB 0.000 Main Board +12V 0.000 Main Board Power Consumption 0.000 March 9, 2007 - 12 -...
-
Page 15: Power Specifications
The NAB-7400 utilizes an industry standard 20-pin ATX main connector to the power supply. Due to the NAB-7400 platform’s ultra low power requirements a 90 – 120 Watt ATX power supply is ample for even the heaviest of multimedia system applications. -
Page 16: Via Nab-7400 Microsoft And Linux Driver Support
VIA NAB-7400 Microsoft and Linux Driver Support Microsoft Driver Support VIA NAB-7400 offers full support for the complete range of Microsoft operating systems. For standard operating systems, Windows 2000/XP latest drivers downloads can be found in the VEPD website at www.viaembedded.com. -
Page 17: Contact
NAB-7400 Operating Guide Contact For more information on the VIA NAB-7400 Mainboard contact your sales representative or visit our website at www.viaembedded.com Taiwan 440 Mission Court, Suite 220 1F, No. 531, Chung Cheng Road Fremont, CA 94539 Hsin Tien, Taipei 231...
