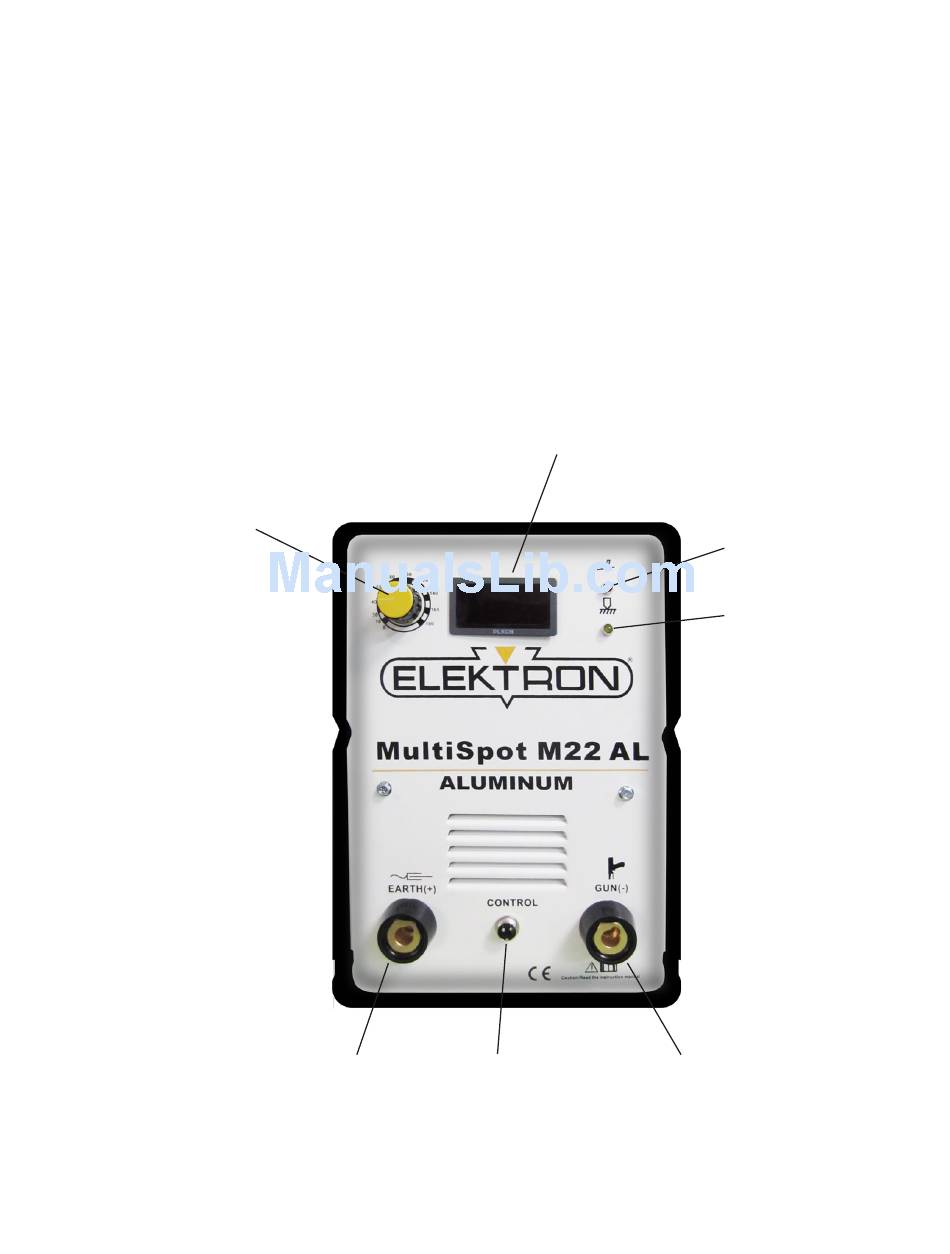

2-6.1 Controls on generator front panel
A
Output indicator
During machine output, the red LED will light.
A1
Connection indicator
When the torch and earth (ground) cables have a good connection, the yellow LED will light.
B
Output voltage meter
C
Output voltage adjustment for stud welding
D
STUD torch connector
E
SPOT earth (ground) connector
F
Control cable connector
C
E
B
F
9
A
A1
D
