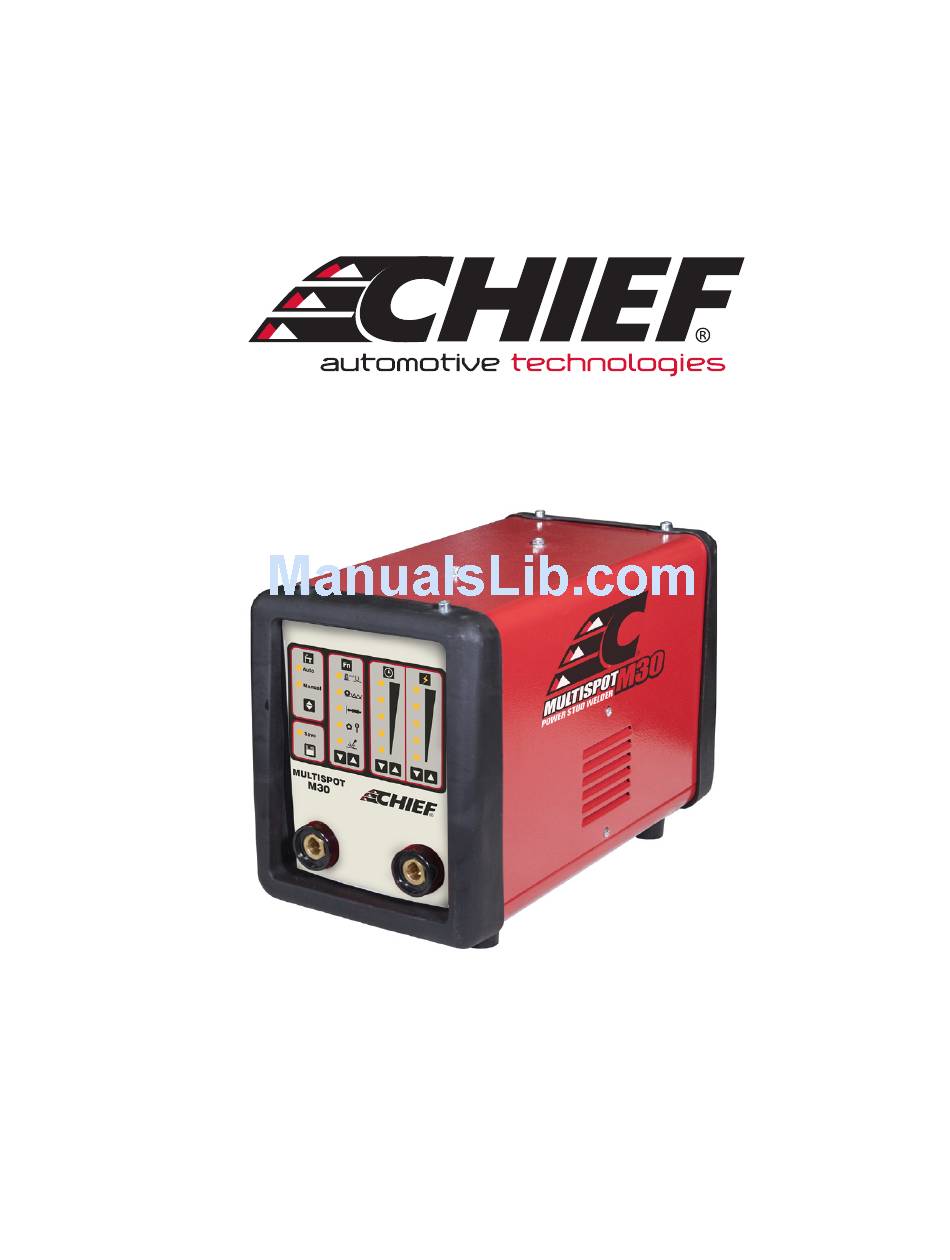

- Page 1 M30 SPOT WELDER INSTRUCTION MANUAL 230V 1PH. We have the right to improve and update the machine. The picture and the content are just for your reference. IN20808 2017 © Chief Automotive Technologies CO9910.4 Rev. - 2/09/17...
-
Page 2: Safety Precautions
IMPORTANT: BEFORE STARTING THE EQUIPMENT, READ THE CONTENTS OF THIS MANUAL, WHICH MUST BE STORED IN A PLACE FAMILIAR TO ALL USERS FOR THE ENTIRE OPERATIVE LIFE-SPAN OF THE MACHINE. THIS EQUIPMENT MUST BE USED SOLELY FOR WELDING OPERATIONS. 1. SAFETY PRECAUTIONS WELDING CAN BE HARMFUL TO YOURSELF AND OTHERS. -
Page 3: Specifications
ELECTROMAGNETIC COMPATIBILITY This machine is manufactured in compliance with the instructions contained in the harmonized standard and must be used solely for professional purposes in an industrial environment. There may be potential difficulties in ensuring electromag- netic compatibility in non-industrial environments. IN CASE OF MALFUNCTIONS, REQUEST ASSISTANCE FROM QUALIFIED PERSONNEL. -
Page 4: Installation
3. INSTALLATION 3.1 SETUP Place the machine in a ventilated area. Dust, dirt, or any other foreign material that may enter the machine can restrict ventilation which could affect the ma- chine’s performance. 3.2 INPUT POWER CONNECTIONS All sections concerning the installation of this machine must be read carefully. This machine must be installed by skilled personnel. - Page 5 4. DESCRIPTION OF CONTROLS A--- There is two modes for choice, Auto mode and Manual mode. B--- Save Save the customer setting. The machine will load the save settings every operation. C\D--- Welding function selection. Press C and D for 2 seconds, the machine will clear the save settings.
- Page 6 5. THE WELDING MODE SETTING INSTRUCTIONS 1.) Auto mode When setting Auto Mode, the machine can weld without pressing the torch switch. Make sure the torch, work cable, and work piece have a good connection, wait for the delay timer, the machine will output power and welding. When setting welding time up, the machine will stop output, lift the torch from the work piece.
- Page 7 7. STUD WELDING AND SPOT WELDING 1.) Stud welding When mounting the stud, the stud must extend past the three support legs about 2mm. Confirm the stud welding position. Press the support legs on the work piece firmly. Make sure the work piece is smooth and clean. Press the torch trigger. The stud screw will be welded on the base metal immediately.
- Page 8 8. STUD WELDING TROUBLESHOOTING 1.) The ground cable or base metal are not making a good connection. 2.) Torch cable or ground cable is winding, coiled up, or crossed. Cables must be straight. 3.) The diameter of screw clamp and stud screw is not suitable, or screw clamp is worn. 4.) The base metal is dirty, rusty, painted, or other problem interfering with electricity conductibility.
- Page 9 9. CARBON SHEET ROD 1. Power switch on, set suitable function. (Manual-2T Ctrl) 2. Set output current (low current). 3. Press the torch trigger. The output power is “ON” continually. If torch trigger is released, the output power is “OFF”. Spot welding Do not use this function continuously for long periods of time, transformer damage may occur.
- Page 10 NOTES...
- Page 11 NOTES...
- Page 12 996 Industrial Dr. Madison, IN 47250 Phone: 800.445.9262 Fax: 866.275.0173 www.chiefautomotive.com Chief reserves the right to alter product specifications and/or package components without notice.
