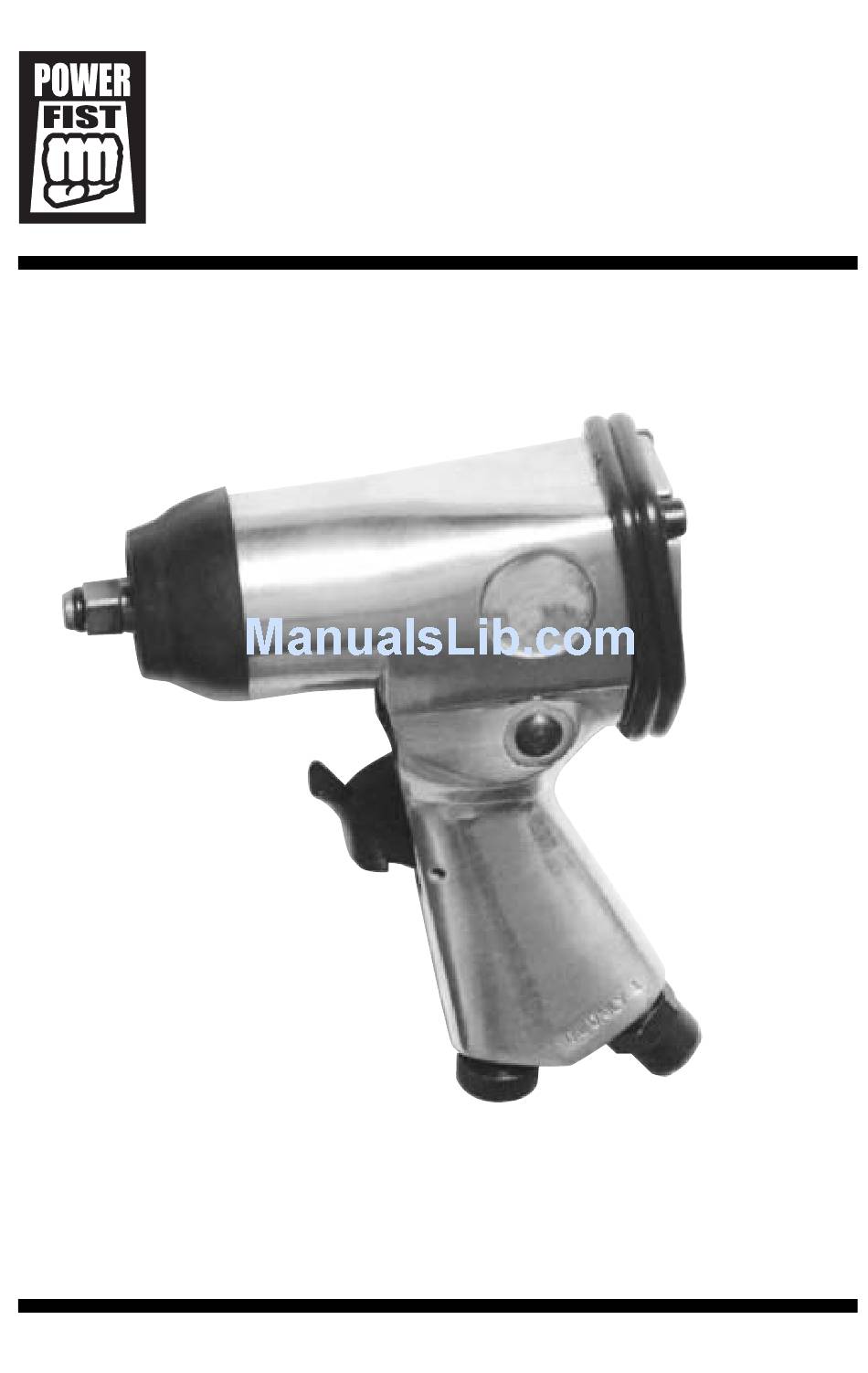

- Page 1 8192098 3/8" Dr. Air Butterfly Impact Wrench Owner’s Manual Read and understand all instructions before use. Retain this manual for future reference.
-
Page 2: Specifications
Specifications • Operating speed: 9,000 max RPM • Torque: 75 ft-lbs • Air inlet: 1/4" NPT • Average air consumption: 3 CFM • Max air pressure: 90 PSI • 3/8" drive Store this manual and the invoice in a safe place for future reference. Safety Information Warning: when using tools, basic safety precautions should always be followed to reduce the risk of personal injury and damage to... - Page 3 7. Use eye, face and ear protection. Always wear ANSI approved impact safety goggles. Wear a full face shield if you are producing metal filings or wood chips. Wear an ANSI approved dust mask or respirator when working around metal, wood and chemical dusts and mists. Wear ANSI approved earplugs.
- Page 4 16. Replacement parts and accessories. When servicing, use only identical replacement parts. Only use accessories intended for use with this tool. 17. Do not operate tool if under the influence of alcohol or drugs. Read warning labels on prescriptions to determine if your judgement or reflexes are impaired while taking drugs.
- Page 5 Operation 1. Prepare a 1/4" air connector (not included) to connect to the air inlet (29) on the impact wrench. First, wrap the 1/4" air connector with pipe thread seal tape before threading it into the air inlet. Connect the 3/8" ID air source hose to a quick connect coupler (not included), then to the impact wrench.
- Page 6 Maintenance 1. Make sure the impact wrench is disconnected from the air hose before attempting any maintenance. 2. Wipe the impact wrench down with a lint free cloth after each use. 3. Make sure the anvil is clear of dirt or debris. If possible, spray it with compressed air before each use.
-
Page 7: Parts List
Parts List No. Part No. Part Motor 23. Cap washer Oil seal 24. Screw O-ring 25. Valve pin Socket retainer 26. O-ring Spindle bush 27. Steel ball Anvil shank 28. Spring Driver cam 29. Air inlet Hammer dog 30. Spring Hammer cage 31. - Page 8 Parts Diagram Note: Some parts listed are shown for illustration purposes only and are not available as replacement parts.
