Manuale per l'installazione e l'uso
Installation and operation manual
46212.004
Telecamera Bullet IR IP 1,3 Mpx, obiettivo 4mm, PoE
Camera Bullet IR IP 1,3 Mpx, Lens 4mm, PoE

Advertisement

loading
Need help?

Need help?

Do you have a question about the 46212.004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vimar 46212.004

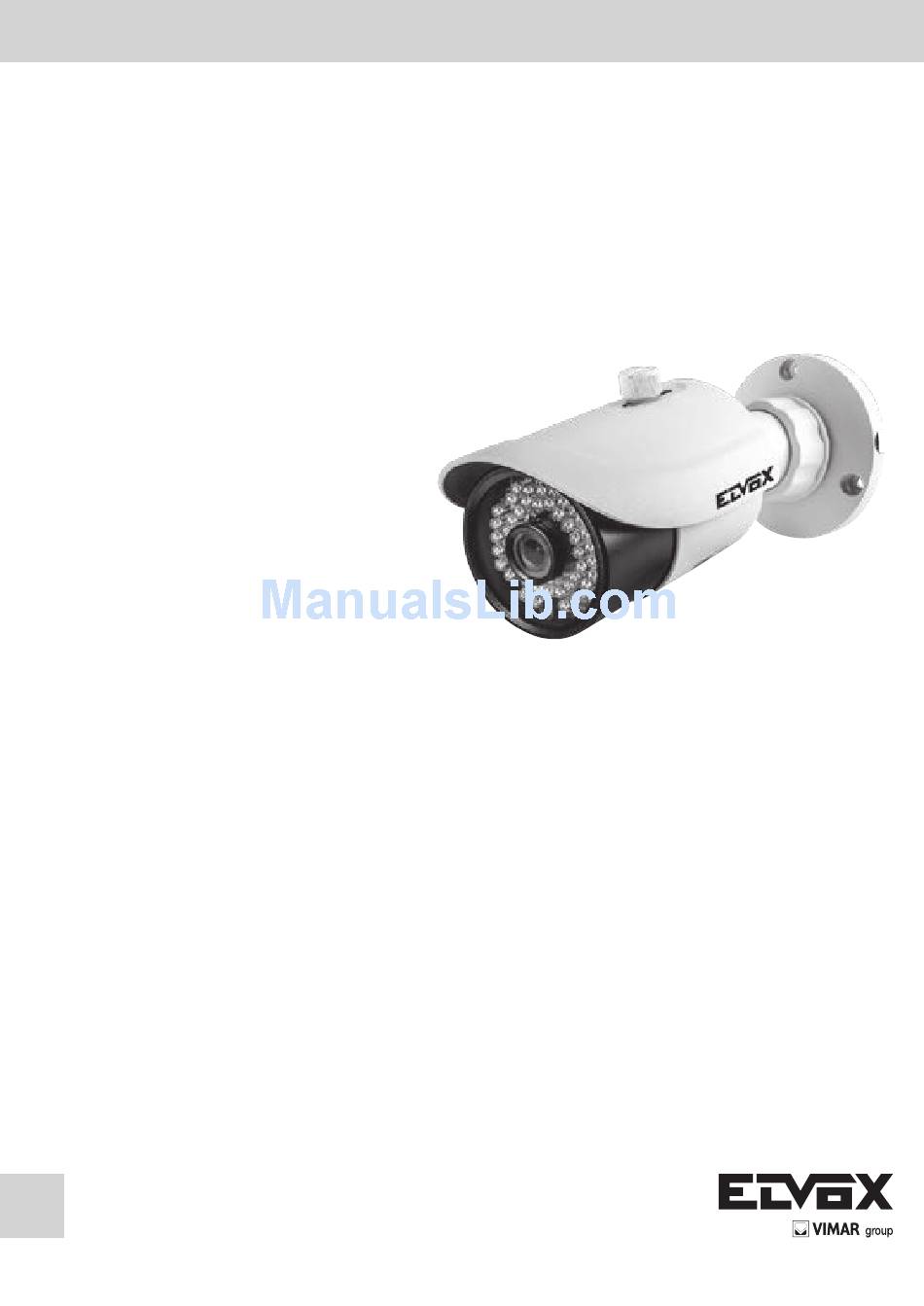

  • Page 1 Manuale per l’installazione e l’uso Installation and operation manual 46212.004 Telecamera Bullet IR IP 1,3 Mpx, obiettivo 4mm, PoE Camera Bullet IR IP 1,3 Mpx, Lens 4mm, PoE...
  • Page 2 Prima di utilizzare il prodotto - Prima di utilizzare il prodotto si raccomanda vivamente di leggere il manuale e di conservarlo in un luogo sicuro per consulta- zione futura. - Il presente documento contiene le istruzioni per l'uso del prodotto. Non è la garanzia di qualità. Ci riserviamo il diritto di correg- gere errori di stampa, incongruenze con la versione più...
  • Page 3: Installazione

    F o c u s Z o o m Installazione Installare l'IP-CAM su rete Ethernet I collegamenti del server video digitale sono illustrati di seguito. Figura 2-1 Collegamento Eseguire i collegamenti del PC e della IP-CAM come illustrato nella figura sopra. I passaggi per il collegamento sono illustrati di seguito: Fase 1: Collegare il monitor, il microfono e la rete al dispositivo.
  • Page 4 Specifiche Modello 46212.004 Sensore di immagine 1/3"CMOS Pixel immagine 1280x960 Otturatore elettronico 1/25s ~ 1/100000s Diaframma automatico Diaframma fisso Telecamera Illuminazione minima 0 Lux (con LED IR ON) Obiettivo Tipo di attacco Attacco M12 Compressione H.264 Risoluzione: 960P (1280x960), 720P (1280×720), VGA (640×480), QVGA (320×240) Frame rate: 1280x960 (1~30fps) / 1280x720 (1~30fps) / 1280x720 (1~10fps) / 640×480...
  • Page 5 Before use this product - Before operation, we strongly advise users to read this manual and keep it properly for using later. - This is product instructions not quality warranty. We may reserve the rights of amending the typographical errors, inconsisten- cies with the latest version, software upgrades and product improvements, interpretation and modification.
  • Page 6: Installation

    F o c u s Z o o m Installation Install IP-CAM to Ethernet Network The connection of digital video server is show below. Figure 2-1 Connection Please connect the PC and IP-CAMERA in accordance with the above picture. The connection steps are shown as below: Step 1: Connect the monitor, microphone and network to the device.
  • Page 7: Specification

    Specification Model 46212.004 Image sensor 1/3"CMOS Image pixels 1280x960 Electronic shutter 1/25s ~ 1/100000s Auto iris Fixed iris Camera Min. illumination 0 lux (IR LED ON) Lens Mount type M12 mount Compression H.264 Resolution 960P (1280x960), 720P (1280×720), VGA (640×480), QVGA (320×240) Frame rate 1280x960 (1~30fps) / 1280x720 (1~30fps) 1280x720 (1~10fps) / 640×480( 1~30fps)
  • Page 8 Vimar SpA: Viale Vicenza, 14 36063 Marostica VI - Italy Tel. +39 0424 488 600 - Fax (Italia) 0424 488 188 49400741A0 00 14 11 Fax (Export) 0424 488 709 VIMAR - Marostica - Italy www.vimar.com...
