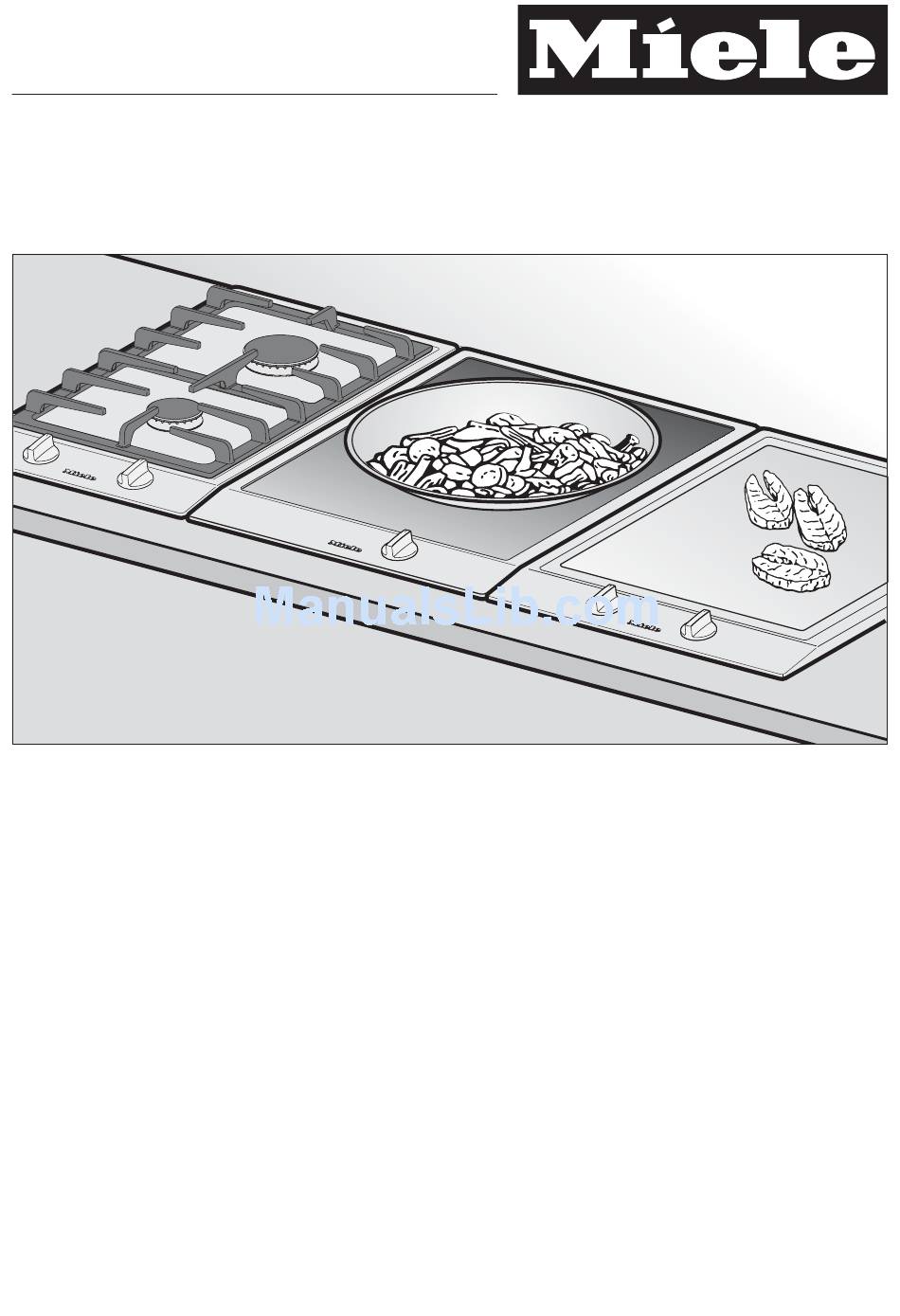

- Page 1 Operating and Installation Instructions Ceramic Combiset CS 1112 CS 1122 en - US To prevent accidents and appliance damage, read these instructions before installation or use. M.-Nr. 07 346 400...
-
Page 2: Table Of Contents
Installation dimensions CS 1122 ........ -
Page 3: Important Safety Instructions
WARNING- When using your gas appliance follow basic precautions, including the following: This gas combiset conforms to all uniform safety codes and regulations. Read all instructions before installation or use to prevent injury and appliance damage. These instructions contain important information on installation, safety, use and maintenance of this appliance. - Page 4 IMPORTANT SAFETY INSTRUCTIONS Technical safety Installation, repair and maintenance work should be performed by a Miele authorized service technician. Work by unqualified persons could be dangerous and may void the warranty. Be sure your appliance is properly installed and grounded by a qualified technician.
- Page 5 Be sure that the power cord does not come in contact with any "hot spots" after installation. Safety DO NOT TOUCH THE COOKING AREA OR THE VICINITY AROUND THE COOKING AREA - During operation, the cooking area and its surroundings will get hot and can cause burns.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS Make certain that the power cords of small appliances do not come in contact with the appliance. The insulation of the cable could become damaged. Danger of electric shock! Be careful not to drop anything on the ceramic surface of the combiset. Even lightweight objects may cause damage.
-
Page 7: Description Of The Combiset
CS 1112 a Variable burner : C 4" or 7" (100 mm or 180 mm) - Power: 700 W or 1800 W b Standard burner : " (145 mm) - Power: 1200 W c Burner indicators d Display Description of the combiset Control knobs for the burners: f Standard burner (front) g Variable burner (rear) - Page 8 Description of the combiset CS 1122 a Extended burner C 7" or 7" x 10 " (180 mm or 180 mm x 265 mm) - Power: 1500 W / 2400 W b Standard burner " (145 mm) - Power: 1200 W...
-
Page 9: Before Using For The First Time
Clean the combiset ^ Remove any protective coverings or stickers. ^ Before using for the first time, clean the appliance with a damp cloth and dry with a soft cloth. Do not use liquid dish soap to clean the combiset, this may cause permanent blue discolorations. -
Page 10: How The Burners Work
How the burners work One-ring burners use one heating strip, and two-ring burners and grill zones use two heating strips. Depending on the model, the heating strips may be separated by a certain distance. See the illustrations. Every burner is equipped with overheat protection (inside temperature limiter), to prevent the glass ceramic combiset from overheating (see the section on... -
Page 11: Use
Turning a burner On/Off ^ To turn a burner on, press the control knob down and turn it clockwise a to the desired setting. ^ To turn a burner off, turn the control knob counterclockwise b to "0". Do not turn a burner on without pressing the control knob down, and do not turn the knob past "12"... -
Page 12: Residual Heat Indicator
Residual Heat Indicator When a cooking zone is switched on, the On/Off indicator will light followed by the residual heat indicator. When the cooking zone is switched off, the On/Off indicator goes out. The residual heat indicator will turn off once the cooking zone is safe to the touch. -
Page 13: Settings
Settings Use for Melt butter, chocolate, etc. Dissolving gelatine Prepare yogurt Warming small quantities of food/liquid Keeping delicate dishes warm Cooking rice, Thawing frozen vegetables Warming liquid or half-set foods Thickening sauces, e.g., hollandaise sauce Cooking rice pudding Defrosting frozen foods Steaming vegetables, fish, etc. -
Page 14: Overheat Protection
Overheat protection Each cooking zone is equipped with a temperature limiter. This feature automatically turns off the heating element before the glass ceramic becomes too hot. Once the ceramic surface has cooled to a safe temperature the heating element will automatically turn back on. -
Page 15: Selecting Cookware
Following these tips will allow you to make the most of your ceramic combiset. The cooking surface The ceramic combiset is made of an extremely hard and durable material. The surface is scratch resistant, not scratch proof. Avoid using cookware with ridged bottoms. - Page 16 Selecting cookware Copper bottom and aluminum pans may leave a residue on the combiset in the form of metallic lines. This is normal. These lines can be removed using a non-abrasive ceramic combiset cleaner or a shielded scraper blade. Be sure to clean the combiset after each use.
-
Page 17: Cleaning And Care
Do not use a steam cleaner to clean this appliance. Steam could penetrate electrical components and cause a short circuit. Pressurized steam could cause permanent damage to the surface. Do not use any sharp pointed objects which could damage the seal between the ceramic surface, the surrounding frame and the countertop. -
Page 18: Stainless Steel
Stubborn soiling is best removed with a shielded scraper blade. ^ Apply a ceramic cleaner (available from Miele) using a soft cloth or paper towel. ^ To remove any limescale deposits or metallic residue apply a ceramic cleaner using a soft cloth or use a shielded scraper blade if necessary. -
Page 19: Frequently Asked Questions
"12". When the knob is sitting between "12" and "0" the appliance operates at reduced power. Frequently asked questions Solution Check whether a fuse is blown. If the problem persists contact Miele. Solution See "Overheating protection". Solution Turn the control knob exactly to "12". -
Page 20: Technical Service
Technical Service In the event of a fault which you cannot easily fix yourself, please contact the Miele Technical Service Department at the address on the back of this booklet. When contacting Technical Service please quote the serial number and model of the appliance. - Page 21 Miele appliance. Please note that unless expressly approved in writing by the Miele Ser- vice department, Extended Service Contracts offered by other providers for Miele products will not be recognized by Miele.
-
Page 23: Installation Instructions
Installation Instructions IMPORTANT: SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE Information is subject to change. Please refer to our website to obtain the most current product specification, technical & warranty information. To prevent accidents and appliance damage read these instructions before installation or use. -
Page 24: Important Installation Safety Instructions
IMPORTANT INSTALLATION SAFETY INSTRUCTIONS Note to the installer: Please leave this instruction book with the consumer for the local electrical inspector’s use. The minimum distances given in these Installation Instructions must be observed in order to ensure safe operation. Failure to do so increases the risk of fire. -
Page 25: Safety Distances Above The Appliance
IMPORTANT INSTALLATION SAFETY INSTRUCTIONS Safety distances above the appliance The minimum safety distance given by the hood manufacturer must be maintained between the combiset and the hood above it. See the installation instructions of the hood for these safety measurements. If the hood manufacturers instructions are not available or if flammable objects are installed over the combiset (e.g. - Page 26 The minimum distance required from the countertop cut-out to the side wall or cabinet a: 2" (50 mm) CS 1112 CS 1122 CS 1212 CS 1221 CS 1223 CS 1326 CS 1327 CS 1411 6"...
-
Page 27: Installation
Safety distance from the wall covering If a wall covering is installed, a minimum safety distance must be maintained between the countertop cut-out and the covering, since high temperatures can damage these materials. If the covering is made of a combustible material (such as wood), the distance between the countertop cut-out and the wall covering must be a minimum of 2"... -
Page 28: Installation Dimensions Cs 1112
Installation Installation dimensions CS 1112 a Spring clips b Appliance front c Installation height d Power supply box with connection cable, L = 78 3/4" (2000 mm) e Rating label... -
Page 29: Installation Dimensions Cs 1122
Installation Installation dimensions CS 1122 a Spring clips b Appliance front c Installation height d Power supply box with connection cable, L = 78 3/4" (2000 mm) e Rating label... - Page 30 Installation Cut out ^ Make the countertop cut-out for the desired number of appliances according to the dimensions drawings. Remember to maintain a minimum safety distance from the back wall, as well as from any tall unit or side wall to the left or right of the combiset.
-
Page 31: Installation Of Multiple Appliances
Installation of multiple appliances When installing more than one combiset appliance, a support bar b must be installed between the appliances. Countertop cut-out two appliances For the installation of two appliances the width of the countertop cut-out D is the sum of A and C. A, B and C = appliance width 11 5/16", 15"... - Page 32 Installation Sample calculations for a countertop cut-out for three appliances appliance width appliance width minus 5/16" (8 mm) 11" (280 mm) 11 5/16" (288 mm) 11" (280 mm) 15" (380 mm) 11" (280 mm) 22 11/16" (576 mm) 14 5/8" (372 mm) 11 5/16" (288 mm) 14 5/8"...
- Page 33 Installation a Spring clips b Support bars c Space between support bar and countertop d Cover The illustration represents the attachment of spring clips a and support bars b for 3 appliances. An additional support bar is required for each additional appliance. The position for attachment of an additional support bar depends on the width of appliance B.
-
Page 34: Attach The Spring Clips And Support Bars
Installation Attach the spring clips and support bars Wood or solid surface countertops ^ Place the supplied spring clips a and the support bars b at the marked positions as shown above, by laying them on the upper edge of the cut-out and then securing them with the "... - Page 35 Granite countertop The screws are not needed for granite countertops. ^ Position and attach the spring clips a and support bars b with strong, double-sided tape c. ^ Coat the side and lower edges of the spring clips between a and b with silicone.
- Page 36 Installation Installing the appliance(s) ^ Feed the power cord down through the cut-out. ^ Place the front edge of the appliance into the cut-out. ^ With a hand on each side of the appliance press down evenly on the edges until it clicks into position. When doing so make sure that the appliance seal sits tightly on the countertop to ensure it is sealed...
-
Page 37: Sealing
Sealing The appliance must not be permanently sealed into the countertop when installed. The sealing strip under the edge of the appliance provides a sufficient seal for the countertop. If the appliance is sealed into position, the countertop or appliance could be damaged if it needs to be removed for maintenance or service. -
Page 38: Electrical Connection
Electrical connection CAUTION: Before installation or servicing, disconnect the power supply by either removing the fuse, shutting off the main power or manually "tripping" the circuit breaker. Installation work and repairs should only be performed by a qualified technician in accordance with all applicable codes and standards. -
Page 39: Help Protect Our Environment
Disposal of packing materials The cardboard box and packing materials are biodegradable and recyclable. Please recycle. Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children. Danger of suffocation! Help protect our environment Disposal of an old appliance Old appliances contain materials that can be recycled. - Page 40 Alteration rights reserved / 3911 INFORMATION IS SUBJECT TO CHANGE. PLEASE REFER TO OUR WEBSITE TO OBTAIN THE MOST CURRENT PRODUCT SPECIFICATIONS, TECHNICAL & WARRANTY INFORMATION. M.-Nr. 07 346 400 / 04 M.-Nr. 07 346 400 / 04...
