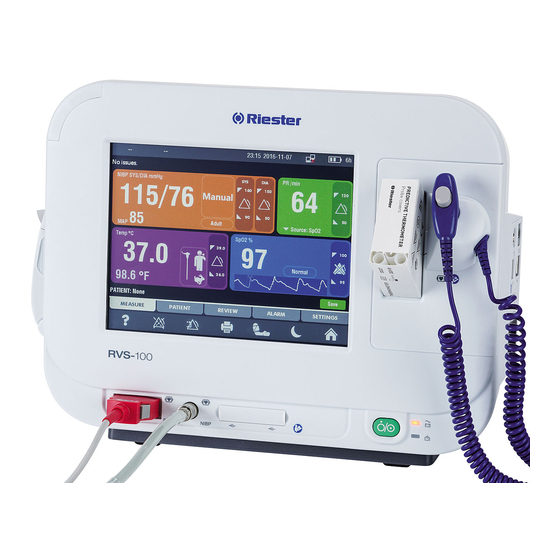

Riester RVS-100 Quick Start Manual

RVS-100 RVS-
100
Vital Signs Monitor Vital Signs Monitor
APPEARANCE
Front View
Physiological alarm Physiological alarm
visual indicator LED's visual indicator LED's
LCD Touchscreen LCD Touchscreen
SpO2 connector SpO2 connector
NIBP connector NIBP connector
USB connector x 2 USB connector x 2
Left-side View
Integrated Integrated
thermal printer thermal printer
ORDERING INFORMATION
1960-RRXXE RVS-100, NIBP (Riester), SpO2 (Riester), EU plug
1960-RRBXE
RVS-100, NIBP (Riester) + SpO2 (Riester) + Pred. Temp, EU plug
1960-RRBPE RVS-100, NIBP (Riester), SpO2 (Riester), Printer, EU plug
1960-RNXXE RVS-100, NIBP (Riester), SpO2 (Riester), Pred. Temp, Printer, EU plug
1960-RNBXE
RVS-100, NIBP (Riester), SpO2 (Nellcor), Pred. Temp, EU plug
1960-RNBPE RVS-100, NIBP (Riester), SpO2 (Nellcor), Pred. Temp, Printer, EU plug
1960-RMXXE RVS-100, NIBP (Riester), SpO2 (Masimo), EU plug
1960-RMBXE
RVS-100, NIBP (Riester), SpO2 (Masimo), Pred. Temp, EU plug
1960-RMBPE RVS-100, NIBP (Riester), SpO2 (Masimo), Pred. Temp, Printer, EU plug
1960-RRXPG RVS-100, NIBP (Riester), SpO2 (Masimo), Printer, UK Plug
Power button Power button
Power indicator LED Power indicator LED
Battery charging Battery charging
indicator LED indicator LED
Rear View
Quick Start Guide Quick Start Guide
Bottom View
Battery Battery
Speaker Speaker
compartment compartment
Well for temperature Well for temperature
probe cover box (20pcs) probe cover box (20pcs)
Covidien Filac 3000 Covidien Filac 3000
temperature probe temperature probe
Grounding terminal Grounding terminal
Ethernet LAN Ethernet LAN
Network connector Network connector
USB socket x 2 USB socket x 2
Nurse call connector Nurse call connector
DC power DC power
connector (output) connector (output)
AC power AC power
connector (input) connector (input)
